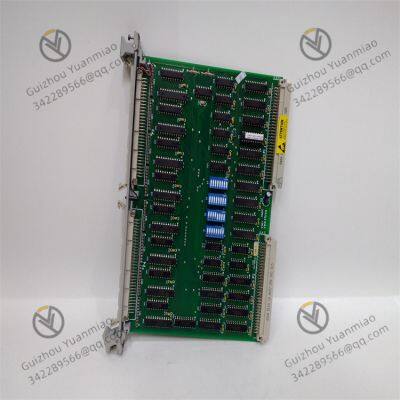

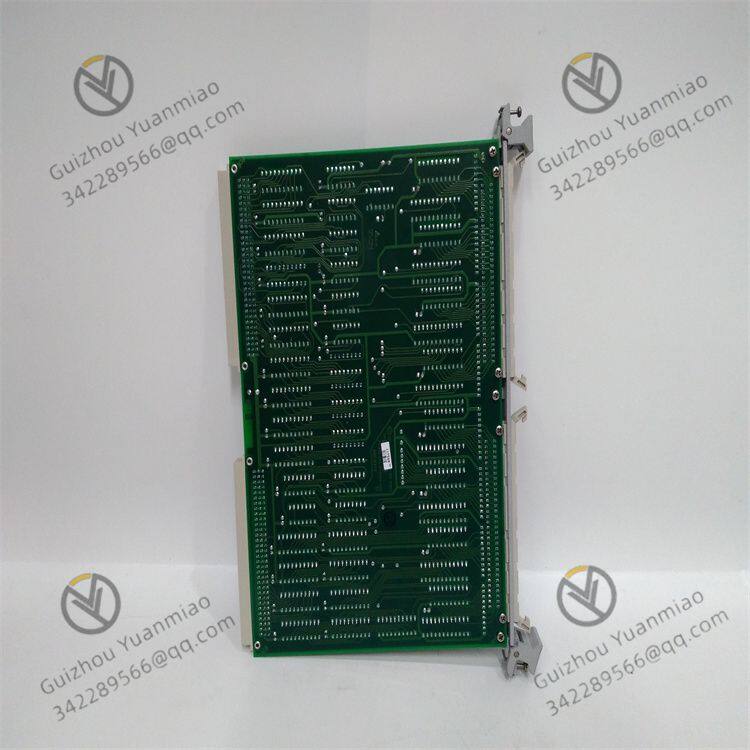

GE VMIVME-2510B 64-bit TTL digital input/output board
Performance characteristics
I/O port features: It has eight I/O ports, each eight bits wide, with a total of 64 bits of input/output. The direction of
each 8-bit port can be programmed separately, facilitating flexible configuration of input or output functions
according to actual needs.
Electrical characteristics: It has a 64mA injection current capacity and a 15mA source current capacity, which can
provide sufficient driving capacity for connected devices to ensure reliable signal transmission.
Data transmission capability: Supports 8-bit, 16-bit, and 32-bit data transmission, which can meet the application
scenarios with different data volume and transmission speed requirements, and adapt to the data interaction needs of
various control systems.
Address decoding function: It features an independent board address decoding function for control and data registers.
By setting the CSR address switch, all CSR in various boards in the system can be mapped to consecutive memory
locations, facilitating memory management and address allocation.
Fault detection function: Built-in test logic, supporting offline and online fault detection and isolation. The front panel
is equipped with a fault LED that lights up when powered on or reset. After completing the board-level diagnosis, if
everything is normal, it can go off, allowing users to promptly understand the working status of the board and quickly
locate the fault.
Connector type: It adopts a highly reliable DIN type I/O connector, which is a double 64-pin connector and complies
with the DIN41612 standard. It can ensure the stability and reliability of the connection and reduce faults caused by
connection issues.
Compatibility: Compatible with the VMEbus specification, with a dual-height design, it can be well integrated into
systems that support VMEbus, facilitating system integration and expansion.
Working environment requirements: The working temperature is 0°C to 60°C, and the environmental humidity is 5% to
95% (non-condensing). It can adapt to the working conditions in most industrial environments.
Power supply requirements: The typical working voltage is 24VDC, with low power consumption, and it can operate
stably under relatively energy-efficient conditions.
Application case:
Factory automated production line control: In automotive manufacturing plants, the VMIVME-2510B can be used for
the control of automated production lines. It can connect various sensors (such as position sensors, speed sensors, etc.)
and actuators (such as robotic arms, cylinders, etc.) on the production line. By collecting sensor signals in real time
and controlling the actions of actuators according to preset programs, it can achieve precise assembly, handling and
other operations of automotive parts, ensuring the smoothness of the production process and the stability of product
quality.
Chemical process monitoring and control: In the chemical production process, it is necessary to precisely monitor and
control various process parameters. The VMIVME-2510B can be connected to sensors such as temperature, pressure
and flow rate to obtain process parameter data in real time and transmit the data to the control system. Meanwhile, in
accordance with the instructions of the control system, it controls the opening and closing of valves, the start and stop
of pumps, etc., to achieve precise control of the chemical production process, ensuring production safety and product
quality. For instance, it plays a role in temperature control of distillation columns and pressure regulation of reaction
vessels.
Power system equipment condition monitoring: In the power system, the VMIVME-2510B can be used to monitor the
status of various equipment within substations. It can receive signals from devices such as switch status sensors and
transformer oil temperature sensors, and reflect the operating status of the equipment in real time. When the
equipment malfunctions, an alarm signal is promptly sent out to notify the operation and maintenance personnel for
handling, thereby enhancing the reliability and stability of the power system.
Automation control of water treatment systems: In water treatment plants, it can be applied to monitor and control
water treatment equipment and processes. If the submersible liquid level probe sensor is connected to collect the
liquid level measurement values of the storage tank, and the data is sent to the gateway in combination with wireless
technology, and then transmitted to the server for processing and display, it can achieve remote monitoring of the
liquid level of the chemical tank. It can also automatically control the operation of equipment such as the dosing
pump according to the liquid level situation, ensuring the efficient operation of the water treatment process.
Control of CNC machine tools: In CNC machine tools, the VMIVME-2510B can serve as an input/output control
module, receiving instruction signals from the operation panel and position feedback signals from each axis of the
machine tool, etc. At the same time, it controls the feed of the tool, the start and stop of the spindle, and the
rotational speed, etc., to achieve precise control of the machine tool processing process and ensure processing
accuracy and efficiency.
