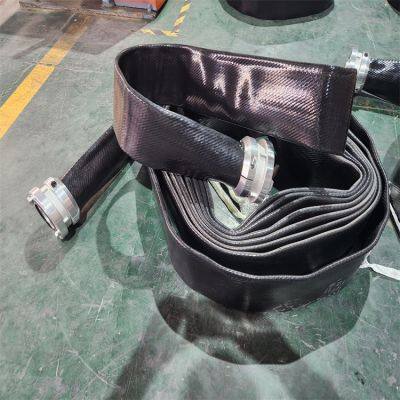

Anti-Static Polyurethane Layflat Hose/Marine Industrial Oil Hose
Negotiable
/ Bag
1 Bag(Min.Order)
- 500 Bag / Bags per Month
- Tianjin Shanghai
- T/T
- 5 days
You May Like
-
Polyester Reinforced TPU Liner Flat Water Supply Hose Fire Control Hose
-
Oil and Gas Fracking Water Transfer Hose Layflat Water Hose
-
Water Pump Drainage Hose, Polyurethane Layflat ose
-
TPU Layflat Hose for Flood Drainge and Discharge
-
Agricultural Irrigation TPU Layflat Drag Water Hose
-
TPU Water Irrigation Large Diameter Layflat Frac Hose for Oil and Gas Develop
Product Details
| Brand Name | Biaohui | Place of Origin | China | |
| Model Number | complete | Material | Other, TPU | |
| Length | 50/100200m | Thickness | 6mm | |
| Specification | 50-200mm | Standard | JB/T8512-2014 |
Product Description
Polyurethane flat hose
Anti-Static Polyurethane Layflat Hose/Marine Industrial Oil Hose
Cover and Lining: TPU (Extrusion through-the-weave)
Reinforcement Jacket: 100% high tenacity Polyester Filament.
Temperature range:-50ºC to 80ºC (-58ºF to +178ºF)
Available length: 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft)
Nipple and Clamp:
Nipple--->316 Stainless Steel
Clamp---->Ductile Iron
Gasket--->Viton Rubber
Hose Technical Specification:
| I.D. | Wall Thickness | Service Pressure | Minimum Burst Pressure | Weight |
| inch | Approx. inch | psi | psi | Approx. Lbs/ft |
| 4" | 0.138 | ≥250 | ≥750 | 0.94 |
| 6" | 0.150 | ≥250 | ≥750 | 1.41 |
| 8" | 0.177 | ≥300 | ≥900 | 2.28 |
| 10" | 0.197 | ≥300 | ≥900 | 3.75 |
| 12" | 0.228 | ≥200 | ≥600 | 4.3 |
| 14" | 0.205 | ≥150 | ≥450 | 4.96 |
| 16" | 0.205 | ≥150 | ≥450 | 5.1 |
Contact Us
- Hebei Biaohui Rubber and Plastic Products Co., Ltd
- Contact nameLiu cong Chat Now
- AddressJingxian Rubber and Plastic Base, Hengshui, Hebei
