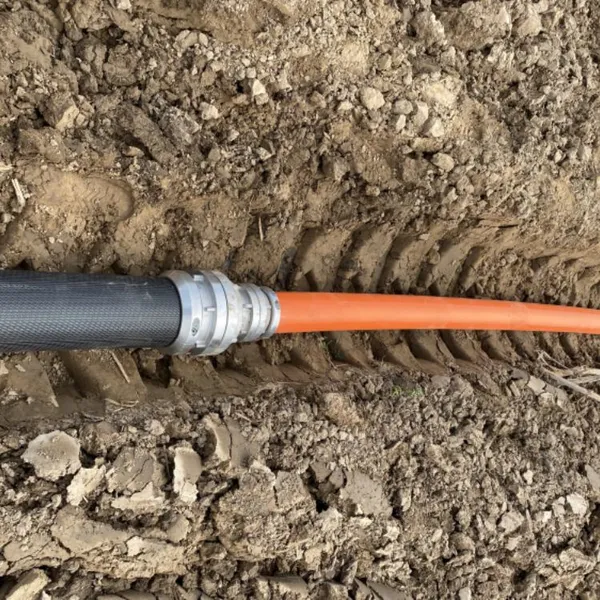

Water Pump Drainage Hose, Polyurethane Layflat ose
TPU High Pressure Hose
Size: 1"-12"
Working pressure: 10-25 bar
Working Temperature:-50 C deg to +80 C deg (-58 F deg to +176 F deg)

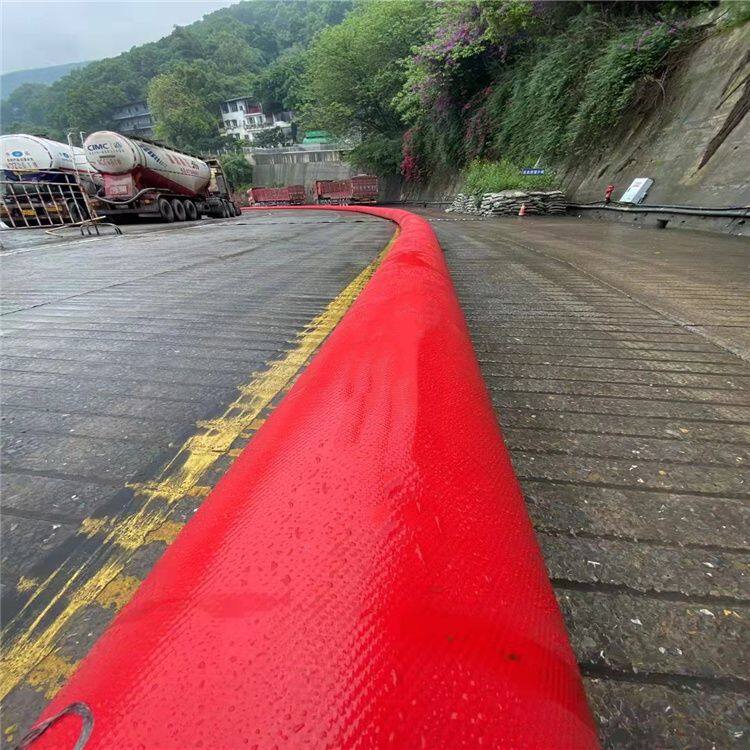

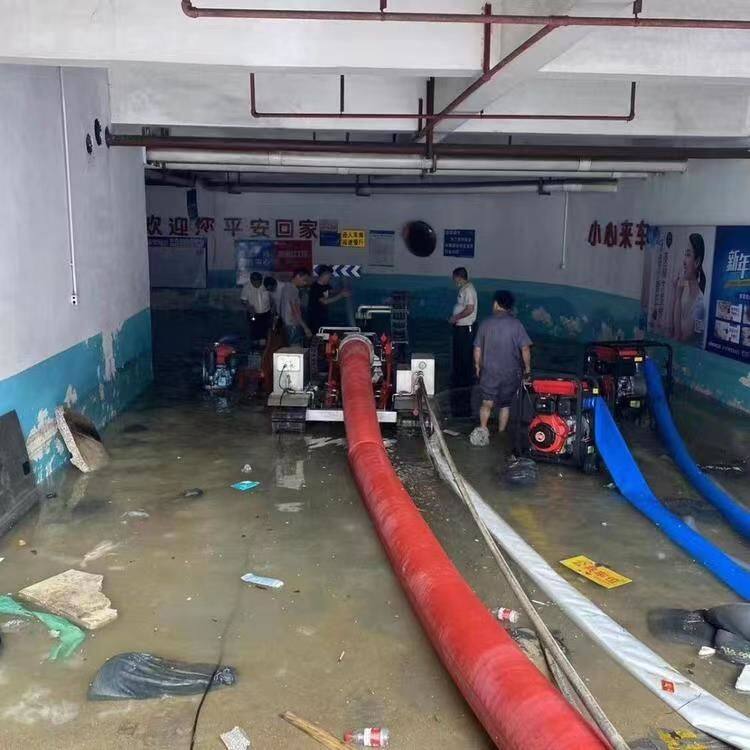

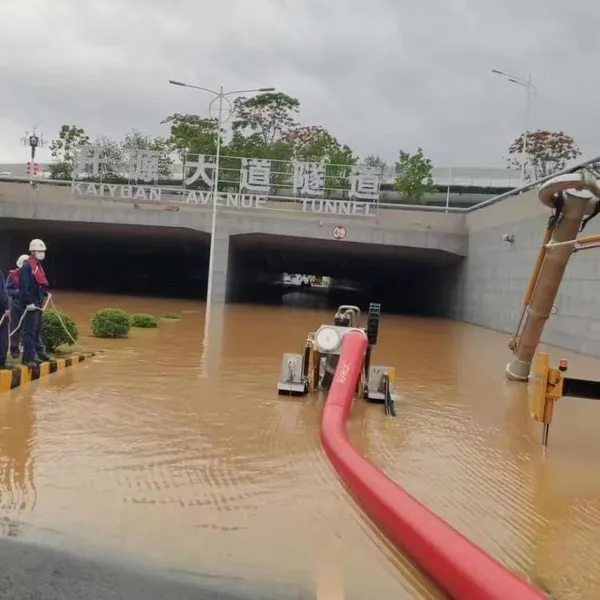

Application: Widely used in emergency water supply and drainage systems, oil and gas fracturing mining, agricultural irrigation and other fields, it can quickly solve water supply and drainage problems in emergency situations.

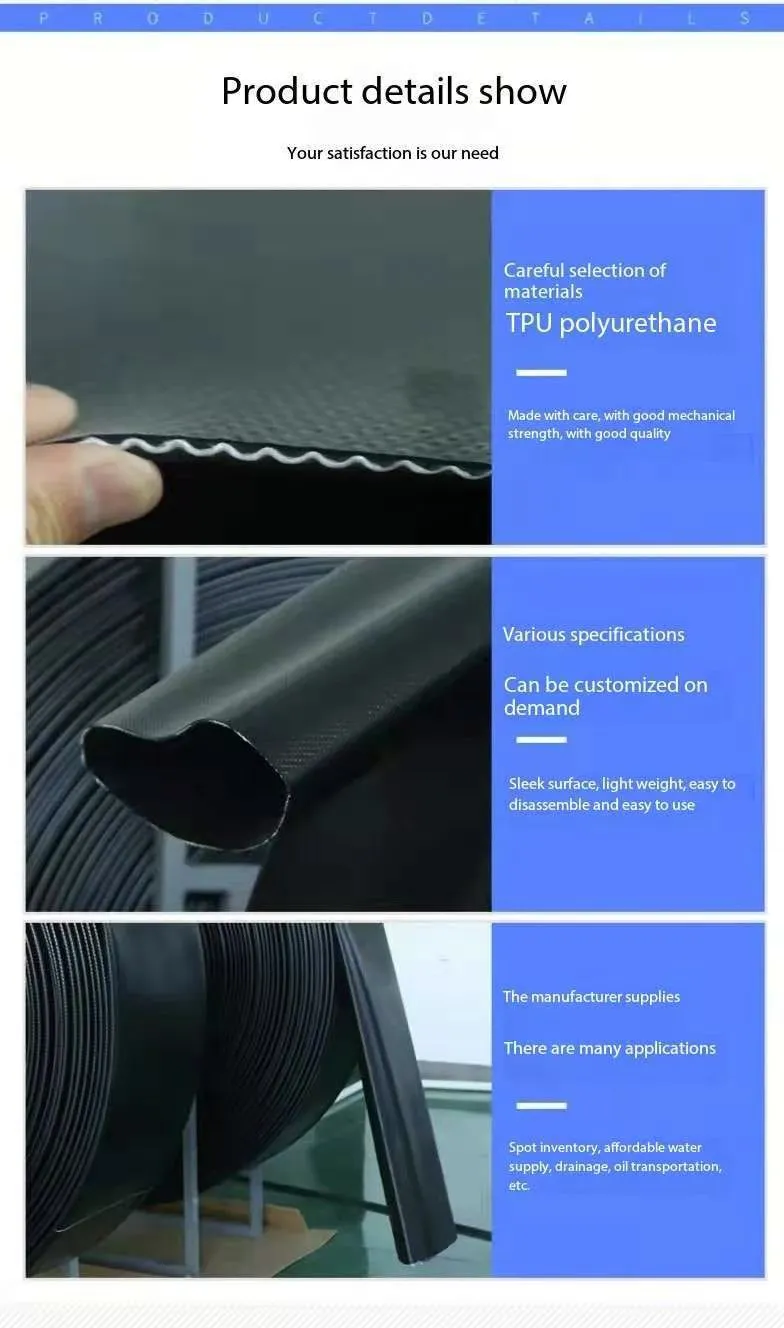

Inner tube and cover: Smooth PU cover and tube
Reinforcement: polyester jacket
Standard Length: 10-200M
Polyurethane layflat hose is made from thermoplastic polyether based polyurethane (TPU) covered and lined by high pressure around a circular woven jacket made from high tenacity filament polyester yarn. Extreme abrasion resistance capability make our pu layflat hose adapt to more working condition.
| ID | Tolerance | Wall Thickness | Service Pressure |
Minimum Burst Pressure |
Weight | Elongation At WP% |
Expansion At WP% |
Temperature Range |
|||||
| inch | mm | mm | inch | mm | psi | psi | lbs/ft | tolerance lbs/ft |
kg/m | tolerance kg/m |
max | max | |
| 2" | 51 | 51.0-53.0 | 0.071±0.008 | 1.80±0.20 | 250 | 750 | 0.28 | ±0.067 | 0.42 | ±0.10 | ≤1 | ≤8 | -50ºC to 80ºC -58ºF to 176ºF |
| 2" | 51 | 51.0-53.0 | 0.138±0.008 | 3.50±0.20 | 410 | 1230 | 0.47 | ±0.067 | 0.70 | ±0.10 | ≤2 | ≤8 | |
| 3" | 76 | 76.0-78.0 | 0.118±0.012 | 3.00±0.30 | 250 | 750 | 0.60 | ±0.067 | 0.90 | ±0.10 | ≤1 | ≤8 | |
| 3" | 76 | 76.0-78.0 | 0.126±0.012 | 3.20±0.30 | 410 | 1230 | 0.70 | ±0.067 | 1.05 | ±0.10 | ≤1 | ≤8 | |
| 4" | 102 | 102-104.5 | 0.110±0.012 | 2.80±0.30 | 200 | 600 | 0.72 | ±0.067 | 1.08 | ±0.10 | ≤1 | ≤8 | |
| 4" | 102 | 102-104.5 | 0.138±0.012 | 3.50±0.30 | 250 | 750 | 0.87 | ±0.067 | 1.30 | ±0.10 | ≤1 | ≤8 | |
| 4" | 102 | 102-104.5 | 0.142±0.012 | 3.60±0.30 | 300 | 900 | 0.94 | ±0.067 | 1.40 | ±0.10 | ≤1 | ≤8 | |
| 4" | 102 | 102-104.5 | 0.189±0.016 | 4.80±0.40 | 610 | 1830 | 1.27 | ±0.067 | 1.90 | ±0.10 | ≤1 | ≤8 | |
| 5" | 125 | 125-127.5 | 0.142±0.012 | 3.60±0.30 | 150 | 450 | 1.21 | ±0.134 | 1.80 | ±0.20 | ≤1 | ≤8 | |
| 6" | 152 | 154-157 | 0.126±0.012 | 3.20±0.30 | 150 | 450 | 1.27 | ±0.067 | 1.90 | ±0.10 | ≤1 | ≤8 | |
| 6" | 152 | 154-157 | 0.149±0.012 | 3.80±0.30 | 250 | 750 | 1.41 | ±0.067 | 2.10 | ±0.10 | ≤1 | ≤8 | |
| 6" | 152 | 154-157 | 0.165±0.012 | 4.20±0.30 | 300 | 900 | 1.68 | ±0.134 | 2.50 | ±0.20 | ≤2 | ≤8 | |
| 6" | 152 | 154-157 | 0.228±0.016 | 5.80±0.40 | 410 | 1230 | 2.28 | ±0.201 | 3.40 | ±0.30 | ≤2 | ≤8 | |
| 6" | 152 | 154-157 | 0.216±0.016 | 5.50±0.40 | 610 | 1830 | 2.14 | ±0.201 | 3.20 | ±0.30 | ≤2 | ≤8 | |
| 8" | 204 | 204-207 | 0.149±0.012 | 3.80±0.30 | 200 | 600 | 1.94 | ±0.134 | 2.90 | ±0.20 | ≤1 | ≤10 | |
| 8" | 204 | 204-207 | 0.157±0.016 | 4.00±0.40 | 250 | 750 | 2.28 | ±0.201 | 3.40 | ±0.30 | ≤1 | ≤10 | |
| 8" | 204 | 204-207 | 0.165±0.016 | 4.20±0.40 | 300 | 900 | 2.35 | ±0.201 | 3.50 | ±0.30 | ≤1 | ≤10 | |
| 8" | 204 | 204-207 | 0.165±0.016 | 4.20±0.40 | 410 | 1230 | 2.68 | ±0.201 | 4.00 | ±0.30 | ≤1 | ≤10 | |
| 10" | 254 | 256-259 | 0.165±0.016 | 4.20±0.40 | 200 | 600 | 2.68 | ±0.201 | 4.00 | ±0.30 | ≤1 | ≤10 | |
| 10" | 254 | 256-259 | 0.177±0.016 | 4.50±0.40 | 250 | 750 | 3.02 | ±0.201 | 4.50 | ±0.30 | ≤1 | ≤10 | |
| 10" | 254 | 256-259 | 0.197±0.016 | 5.00±0.40 | 300 | 900 | 3.69 | ±0.201 | 5.50 | ±0.30 | ≤2 | ≤8 | |
| 12" | 306 | 306-311 | 0.165±0.016 | 4.20±0.40 | 150 | 450 | 2.81 | ±0.201 | 4.20 | ±0.30 | ≤1 | ≤8 | |
| 12" | 306 | 306-311 | 0.197±0.016 | 5.00±0.40 | 200 | 600 | 3.48 | ±0.201 | 5.20 | ±0.30 | ≤2 | ≤8 | |
| 14" | 356 | 356-360 | 0.189±0.016 | 4.80±0.40 | 150 | 450 | 4.36 | ±0.268 | 6.50 | ±0.40 | ≤1 | ≤8 | |
| 16" | 406 | 406-410 | 0.197±0.020 | 5.00±0.50 | 100 | 300 | 4.56 | ±0.268 | 6.80 | ±0.40 | ≤1 | ≤10 | |
| 16" | 406 | 406-410 | 0.212±0.020 | 5.40±0.50 | 150 | 450 | 5.23 | ±0.268 | 7.80 | ±0.40 | ≤1 | ≤10 |
|
Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
contact information:
Company Name: Hebei Biaohui Rubber Products Co., Ltd
Address: Zhanggehou Rubber and Plastic Base, Jing County, Hebei Province
Telehone: +86 15075803959
E-mail: info@biaohuihose.com
WhatsApp：+86 15075803959
WeChat ： +8615075803959
