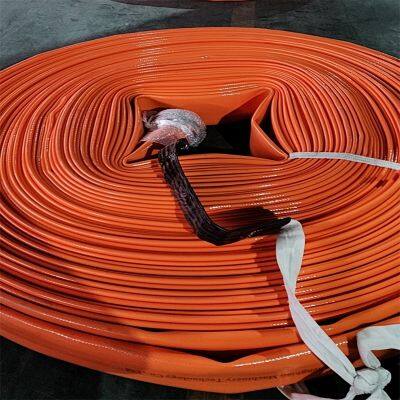

Drag Hose

Agriculture manure drage hose is made from thermoplastic polyurethane and reinforced with high strength circular woven polyester or polyamide.

Drag Hose Structure

Tube & Cover: Thermoplastic polyurethane(TPU)

Reinforcement: High strength circular woven polyester or polyamide

Temperature: -50℃ to +80℃ (-58℉ to +176℉)

Application: TPU drag hose is designed for distribution of slurry and manure and fertilizer, delivery of water in self propelled machinesfor irrigation

TPU Drag Hose is designed for the latest environmentally friendly umbilical drag systems. It’s used for distribution of slurry, manure and fertilizer in agriculture. The hose is connected between slurry reservoirs (lagoons) and tow tractors in the field to be fertilized.

The tow tractor pulls the drag hose behind it while the hose feeds the injection tool bar that deposits the manure in the plowed furrows. The abrasion resistance of TPU cover is 4 – 5 times that of commonly used rubber. The tensile strength has been substansially increased to withstand the pull forces.

TPU Drag Hose Features

• Flexible in all weather conditions from -50℃ to +80℃

• Acid, alkali and corrosion resistant

• Extra abrasion and oil resistant

• Low coil volume for easy handling

• Cold and small flow resistant

• Germany type Storz, American Bolt on style, Victaulic coupling. Camlock is optional according to the requirement.

TPU Drag Hose Advantages

• Standard color black, other colors on request

• Individual marking available

• Binding with international couplings available on request

• Other diameters on request

• Standard lengths 100m and 200m

TPU Drag Hose Packing

Generally the packing would be pallet or steel hose holder. Customized packing is also available.

TPU Drag Hose Specification
