Fuels TPU Lay Flat Hose

Fuels TPU Lay Flat Hose thumbnail-1
Fuels TPU Lay Flat Hose thumbnail-2
Fuels TPU Lay Flat Hose thumbnail-3
Fuels TPU Lay Flat Hose thumbnail-4
Fuels TPU Lay Flat Hose thumbnail-5
Fuels TPU Lay Flat Hose photo-1
Fuels TPU Lay Flat Hose photo-2
Fuels TPU Lay Flat Hose photo-3
Fuels TPU Lay Flat Hose photo-4
Fuels TPU Lay Flat Hose photo-5
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Biaohui
Place of Origin:
China
Model Number:
complete
Contact Supplier Request Quote Chat Now
Hebei Biaohui Rubber And Plastic Products Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Biaohui
Place of Origin China
Model Number complete
Material Other, TPU
Length 50/100200m
Thickness 6mm
Specification 50-200mm
Standard JB/T8512-2014

Fuels TPU Lay Flat Hose

Cover and Lining: TPU, Ribbed cover or smooth cover.
Reinforcement Jacket: High tenacity synthetic jacket.
Application: Water transfer Fracturing
Available length: 30m (100ft), 61m (200ft), 90m (300ft), 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft)
Hose can be with glow line on special requests!

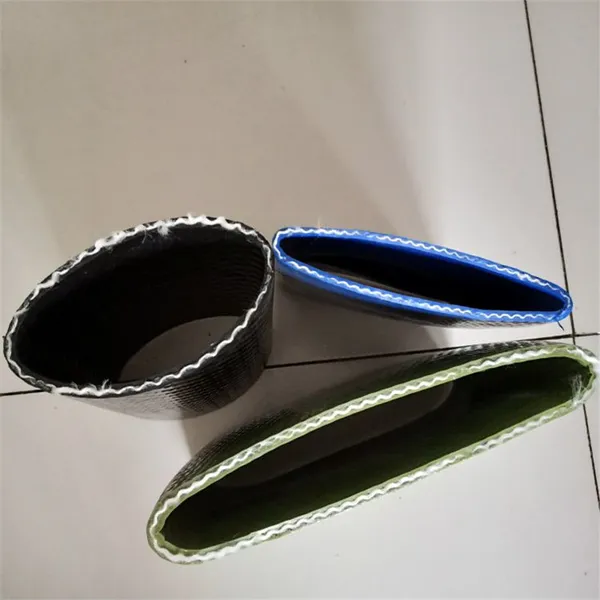

The reinforcement is made from circular woven filament polyester yarn. The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation. The abrasion resistance of the TPU is one of the highest available, making the hose ideal for use in the extremely abrasive environment in open pit mines.
The outer cover has been designed with extra thickness in order to add wear & tear material. This extends the useful lifespan of the hose.
Extra abrasion resistance for rugged terrain and extreme conditions. Resistant to oil and chemicals. UV Stabilized.
Abrasion: 4000 DIN cycles
Temperature range: -50ºC to 80ºC (-58ºF to +176ºF)

ID Tolerance Wall Thickness Service
Pressure		 Minimum
Burst Pressure		 Weight Elongation
At WP%		 Expansion
At WP%		 Temperature
Range
inch mm mm inch mm psi psi lbs/ft tolerance
lbs/ft		 kg/m tolerance
kg/m		 max max
2" 51 51.0-53.0 0.071±0.008 1.80±0.20 250 750 0.28 ±0.067 0.42 ±0.10 ≤1 ≤8 -50ºC to 80ºC

-58ºF to 176ºF
2" 51 51.0-53.0 0.138±0.008 3.50±0.20 410 1230 0.47 ±0.067 0.70 ±0.10 ≤2 ≤8
3" 76 76.0-78.0 0.118±0.012 3.00±0.30 250 750 0.60 ±0.067 0.90 ±0.10 ≤1 ≤8
3" 76 76.0-78.0 0.126±0.012 3.20±0.30 410 1230 0.70 ±0.067 1.05 ±0.10 ≤1 ≤8
4" 102 102-104.5 0.110±0.012 2.80±0.30 200 600 0.72 ±0.067 1.08 ±0.10 ≤1 ≤8
4" 102 102-104.5 0.138±0.012 3.50±0.30 250 750 0.87 ±0.067 1.30 ±0.10 ≤1 ≤8
4" 102 102-104.5 0.142±0.012 3.60±0.30 300 900 0.94 ±0.067 1.40 ±0.10 ≤1 ≤8
4" 102 102-104.5 0.189±0.016 4.80±0.40 610 1830 1.27 ±0.067 1.90 ±0.10 ≤1 ≤8
5" 125 125-127.5 0.142±0.012 3.60±0.30 150 450 1.21 ±0.134 1.80 ±0.20 ≤1 ≤8
6" 152 154-157 0.126±0.012 3.20±0.30 150 450 1.27 ±0.067 1.90 ±0.10 ≤1 ≤8
6" 152 154-157 0.149±0.012 3.80±0.30 250 750 1.41 ±0.067 2.10 ±0.10 ≤1 ≤8
6" 152 154-157 0.165±0.012 4.20±0.30 300 900 1.68 ±0.134 2.50 ±0.20 ≤2 ≤8
6" 152 154-157 0.228±0.016 5.80±0.40 410 1230 2.28 ±0.201 3.40 ±0.30 ≤2 ≤8
6" 152 154-157 0.216±0.016 5.50±0.40 610 1830 2.14 ±0.201 3.20 ±0.30 ≤2 ≤8
8" 204 204-207 0.149±0.012 3.80±0.30 200 600 1.94 ±0.134 2.90 ±0.20 ≤1 ≤10
8" 204 204-207 0.157±0.016 4.00±0.40 250 750 2.28 ±0.201 3.40 ±0.30 ≤1 ≤10
8" 204 204-207 0.165±0.016 4.20±0.40 300 900 2.35 ±0.201 3.50 ±0.30 ≤1 ≤10
8" 204 204-207 0.165±0.016 4.20±0.40 410 1230 2.68 ±0.201 4.00 ±0.30 ≤1 ≤10
10" 254 256-259 0.165±0.016 4.20±0.40 200 600 2.68 ±0.201 4.00 ±0.30 ≤1 ≤10
10" 254 256-259 0.177±0.016 4.50±0.40 250 750 3.02 ±0.201 4.50 ±0.30 ≤1 ≤10
10" 254 256-259 0.197±0.016 5.00±0.40 300 900 3.69 ±0.201 5.50 ±0.30 ≤2 ≤8
12" 306 306-311 0.165±0.016 4.20±0.40 150 450 2.81 ±0.201 4.20 ±0.30 ≤1 ≤8
12" 306 306-311 0.197±0.016 5.00±0.40 200 600 3.48 ±0.201 5.20 ±0.30 ≤2 ≤8
14" 356 356-360 0.189±0.016 4.80±0.40 150 450 4.36 ±0.268 6.50 ±0.40 ≤1 ≤8
16" 406 406-410 0.197±0.020 5.00±0.50 100 300 4.56 ±0.268 6.80 ±0.40 ≤1 ≤10
16" 406 406-410 0.212±0.020 5.40±0.50 150 450 5.23 ±0.268 7.80 ±0.40 ≤1 ≤10

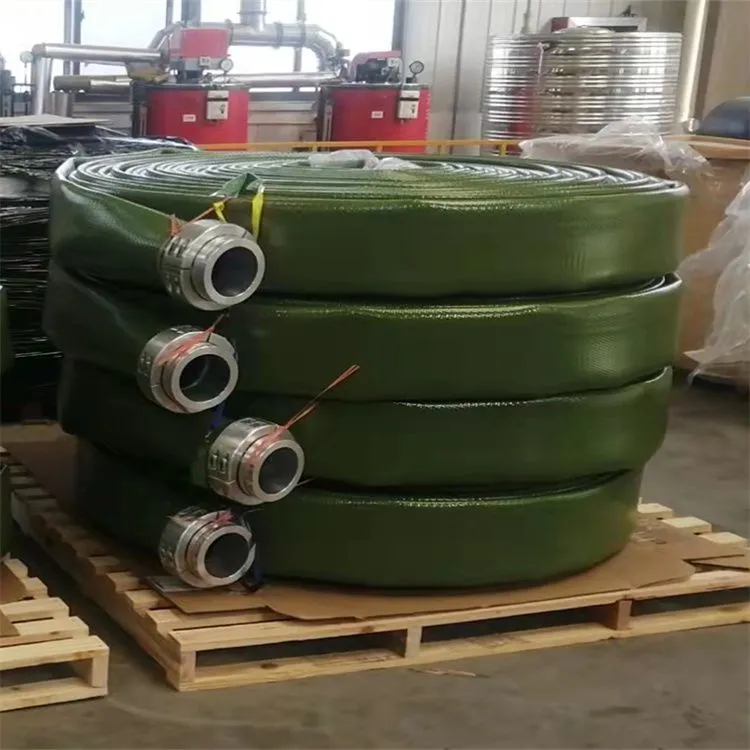

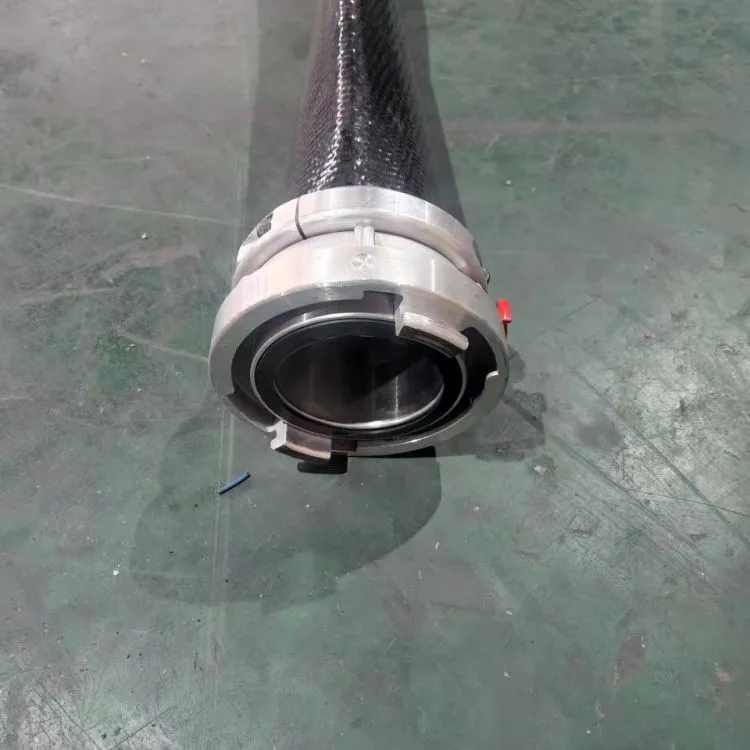

249ed7cfc87db0f338d0845a1b9e9f8e_副本90d912e7900ab8269897c798795cddd3_副本

Product Tags: TPU flat hose , Fuels TPU Lay Flat Hose , TPU flat hose for oil fields
