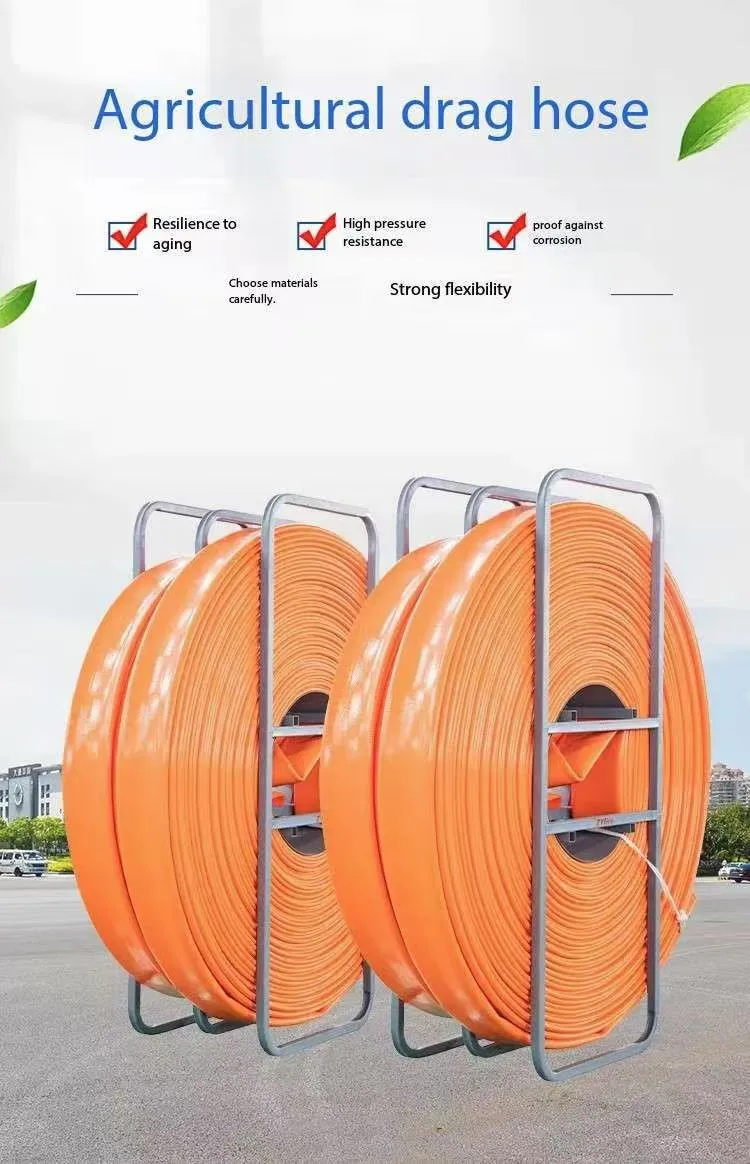

Drag Hose
Agriculture manure drage hose is made from thermoplastic polyurethane and reinforced with high strength circular woven polyester or polyamide.
Drag Hose Structure
Tube & Cover: Thermoplastic polyurethane(TPU)
Reinforcement: High strength circular woven polyester or polyamide
Temperature: -50℃ to +80℃ (-58℉ to +176℉)

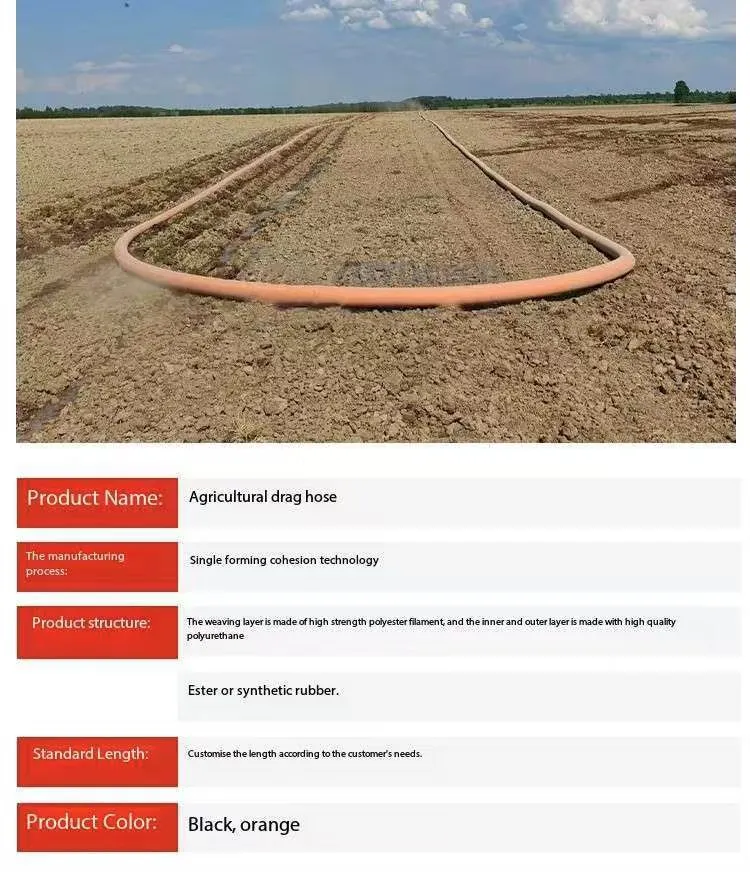

Application: TPU drag hose is designed for distribution of slurry and manure and fertilizer, delivery of water in self propelled machinesfor irrigation

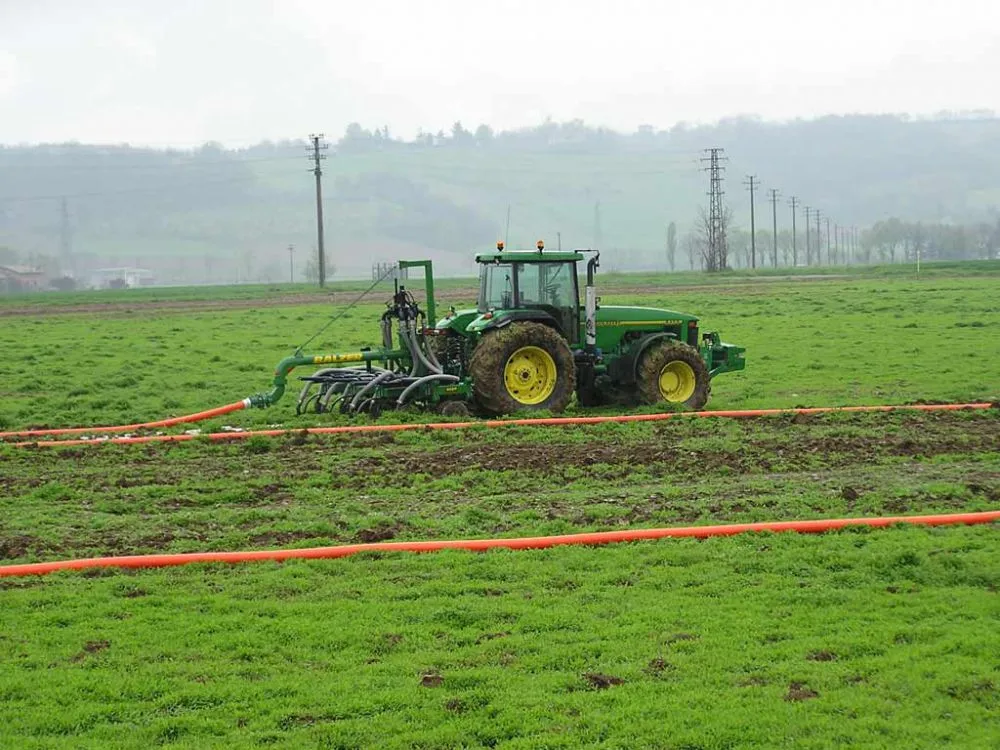

TPU Drag Hose is designed for the latest environmentally friendly umbilical drag systems. It’s used for distribution of slurry, manure and fertilizer in agriculture. The hose is connected between slurry reservoirs (lagoons) and tow tractors in the field to be fertilized.
The tow tractor pulls the drag hose behind it while the hose feeds the injection tool bar that deposits the manure in the plowed furrows. The abrasion resistance of TPU cover is 4 – 5 times that of commonly used rubber. The tensile strength has been substansially increased to withstand the pull forces.
TPU Drag Hose Features
Flexible in all weather conditions from -50℃ to +80℃
Acid, alkali and corrosion resistant
Extra abrasion and oil resistant
Low coil volume for easy handling
Cold and small flow resistant
Germany type Storz, American Bolt on style, Victaulic coupling. Camlock is optional according to the requirement.
TPU Drag Hose Advantages
Standard color black, other colors on request
Individual marking available
Binding with international couplings available on request
Other diameters on request
Standard lengths 100m and 200m

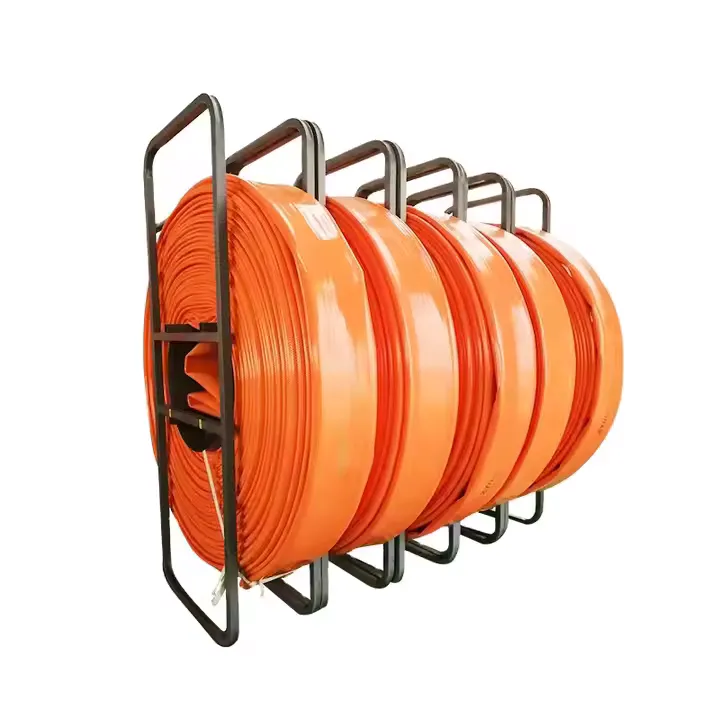

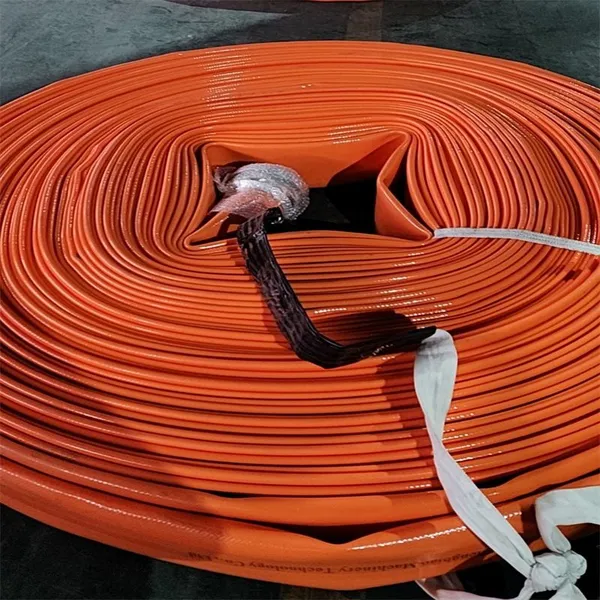

TPU Drag Hose Packing
Generally the packing would be pallet or steel hose holder. Customized packing is also available.
TPU Drag Hose Specification
| I.D. | Tolerance | Wall | Thickness | Service Pressure | Minimum Burst Pressure | Weight | Elongation At WP | Expansion At WP | Temperaturer | ||||
| inch | mm | mm | inch | mm | psi | psi | Lbs/ft | Tolerance lbs/ft | Kg/m | Tolerance kg/m | max | max | |
| 3" | 76 | 76-78 | 0.118±0.008 | 3.0±0.2 | 200 | 645 | 0.67 | ±0.067 | 1.0 | ±0.1 | ≤5 | ≤5 | -30 to +80 (-22 to +176) |
| 4" | 102 | 102-104 | 0.126±0.012 | 3.2±0.3 | 200 | 600 | 0.938 | ±0.067 | 1.4 | ±0.1 | ≤5 | ≤5 | |
| 6" | 152 | 154-157 | 0.126±0.012 | 3.2±0.3 | 200 | 600 | 1.47 | ±0.067 | 2.2 | ±0.1 | ≤5 | ≤5 | |
| 6" | 152 | 154-157 | 0.138±0.012 | 3.2±0.3 | 250 | 750 | 1.68 | ±0.067 | 2.5 | ±0.1 | ≤5 | ≤5 | |
| 6" | 152 | 154-157 | 0.166±0.012 | 4.2±0.3 | 300 | 900 | 1.88 | ±0.134 | 2.8 | ±0.2 | ≤5 | ≤5 | |
| 8" | 204 | 204-207 | 0.158±0.012 | 4.0±0.3 | 200 | 600 | 2.4 | ±0.134 | 3.58 | ±0.2 | ≤5 | ≤5 | |
| 8" | 204 | 204-207 | 0.166±0.012 | 4.2±0.3 | 300 | 900 | 2.51 | ±0.134 | 3.75 | ±0.2 | ≤5 | ≤5 | |
| 8" | 204 | 204-207 | 0.197±0.012 | 5.0±0.3 | 400 | 1200 | 2.75 | ±0.134 | 4.1 | ±0.2 | ≤5 | ≤5 | |
| 10" | 254 | 254-257 | 0.173±0.016 | 4.4±0.4 | 200 | 600 | 3.10 | ±0.134 | 4.63 | ±0.2 | ≤5 | ≤5 | |
| 10" | 254 | 254-257 | 0.177±0.016 | 4.5±0.4 | 300 | 900 | 3.35 | ±0.134 | 5 | ±0.2 | ≤5 | ≤5 | |
| 12" | 306 | 306-311 | 0.188±0.016 | 4.8±0.4 | 150 | 450 | 3.92 | ±0.201 | 5.85 | ±0.3 | ≤5 | ≤5 | |
| 12" | 306 | 306-311 | 0.177±0.016 | 4.5±0.4 | 200 | 600 | 3.82 | ±0.201 | 5.7 | ±0.3 | ≤5 | ≤5 | |
| 14" | 356 | 356-360 | 0.188±0.016 | 4.8±0.4 | 150 | 450 | 4.89 | ±0.201 | 7.3 | ±0.3 | ≤5 | ≤5 | |
| 16" | 400 | 406-411 | 0.188±0.016 | 4.8±0.4 | 100 | 300 | 4.96 | ±0.201 | 7.4 | ±0.3 | ≤5 | ≤5 | |
