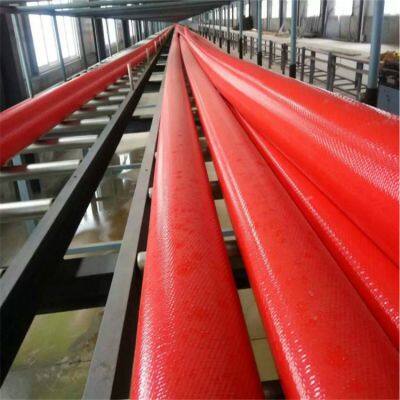

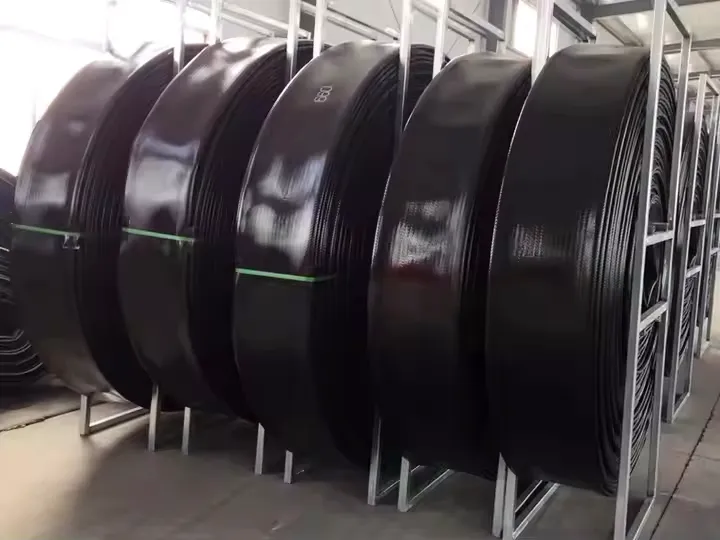

Agricultural Irrigation TPU Layflat Drag Water Hose

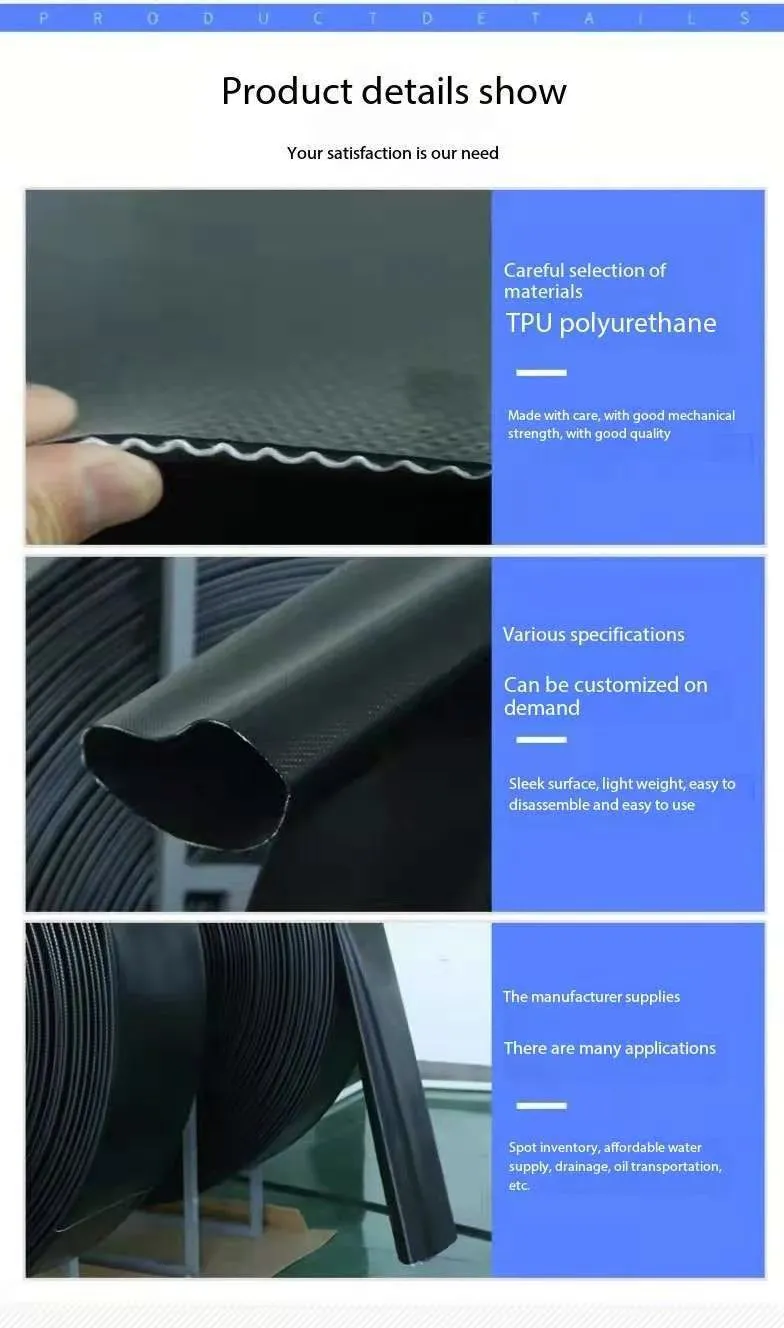

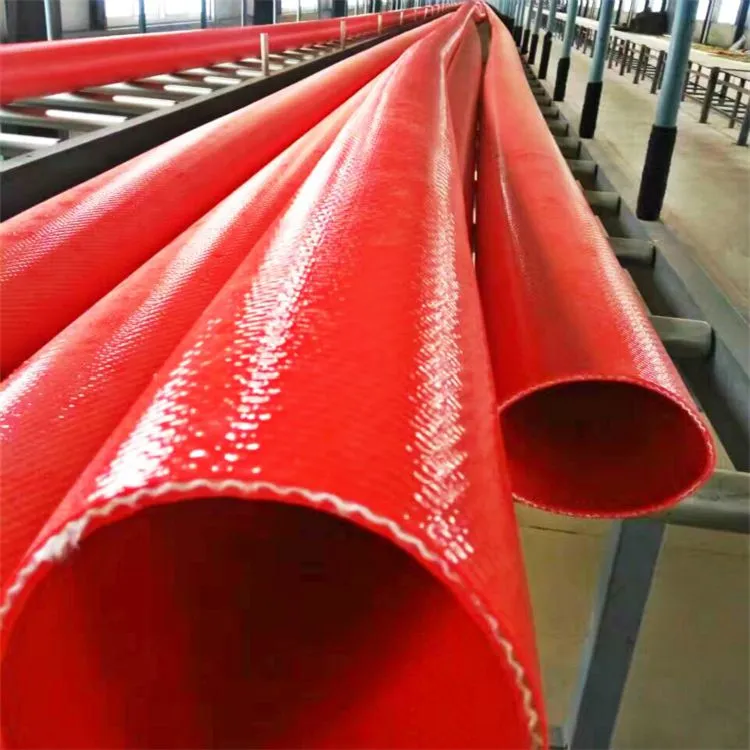

1.Construction:The hose consists of high tenacity polyester or aramid fiber as hose carcass,polyurethane as innerand outer tube layer which are extruded simultaneously.
2.Features:Abrasive resistance,acid and alkali resistance,oil resistance,corrosion resistance,aging resistance.In thecold environment,the hose will not become stiff,brittle and crack easily.

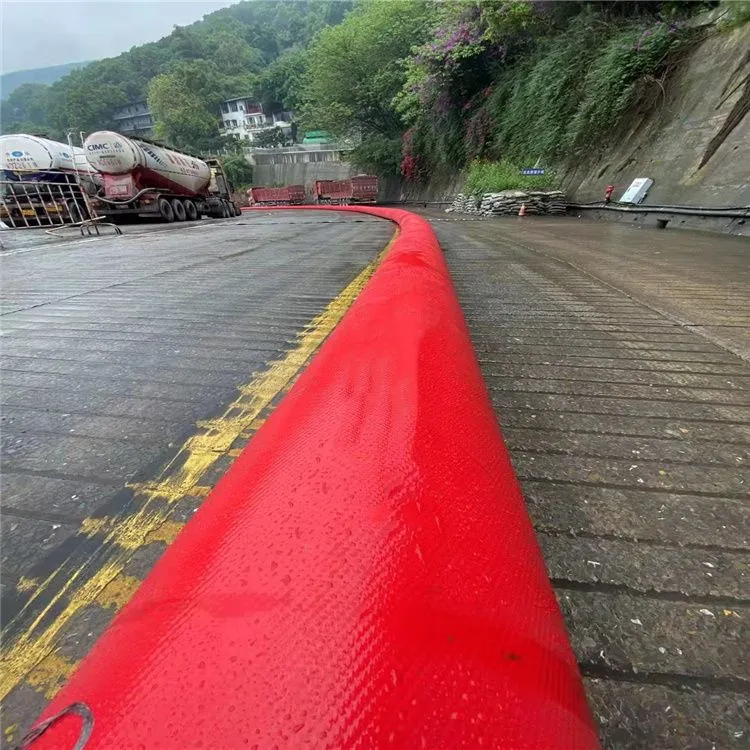

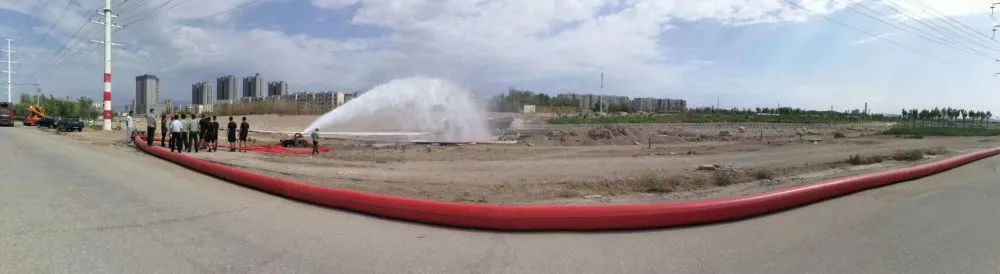

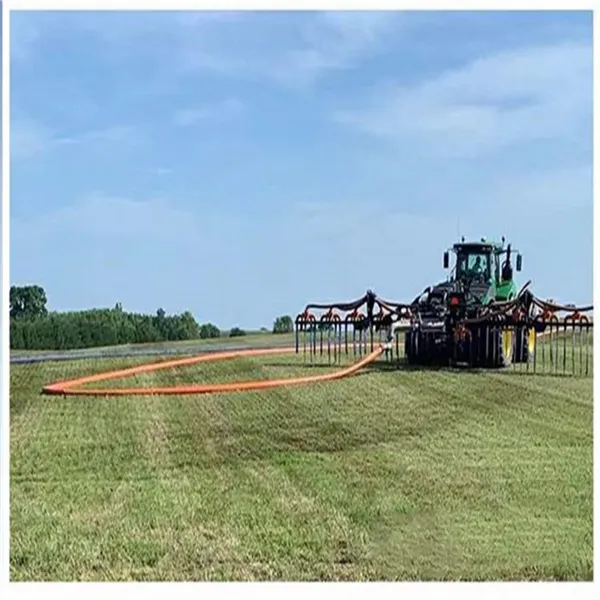

3.Application:The ideal large flow of long distance gas and liquid transportation,which widely used in petroleum.chemical,shipping,agriculture,water conservancy,mine rescue and firetighting.
4.Working temperature:-58℉-176℉(-40℃~80℃)
Hose Technical Specification:
| I.D. | Wall Thickness | Service Pressure | Minimum Burst Pressure | Weight |
| inch | Approx. inch | psi | psi | Approx. Lbs/ft |
| 4" | 0.138 | ≥250 | ≥750 | 0.94 |
| 6" | 0.150 | ≥250 | ≥750 | 1.41 |
| 8" | 0.177 | ≥300 | ≥900 | 2.28 |
| 10" | 0.197 | ≥300 | ≥900 | 3.75 |
| 12" | 0.228 | ≥200 | ≥600 | 4.3 |
| 14" | 0.205 | ≥150 | ≥450 | 4.96 |
| 16" | 0.205 | ≥150 | ≥450 | 5.1 |
Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
