Large Diameter Frac TPU Oil Hose

Large Diameter Frac TPU Oil Hose thumbnail-1
Large Diameter Frac TPU Oil Hose thumbnail-2
Large Diameter Frac TPU Oil Hose thumbnail-3
Large Diameter Frac TPU Oil Hose thumbnail-4
Large Diameter Frac TPU Oil Hose thumbnail-5
Large Diameter Frac TPU Oil Hose photo-1

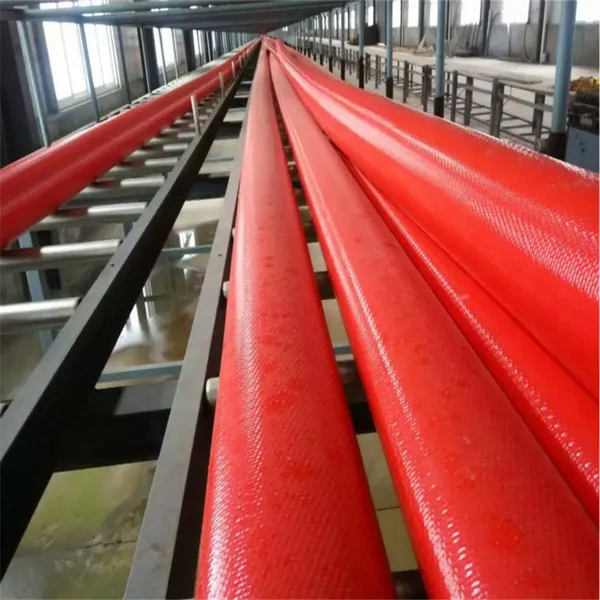

Large Diameter Frac TPU Oil Hose photo-2
Large Diameter Frac TPU Oil Hose photo-3

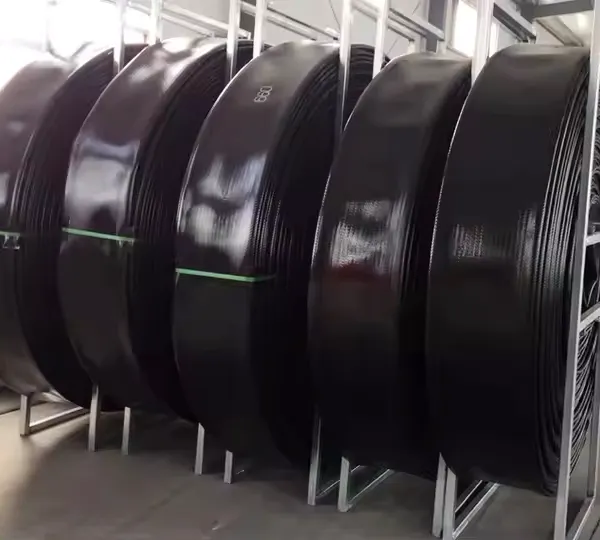

Large Diameter Frac TPU Oil Hose photo-4

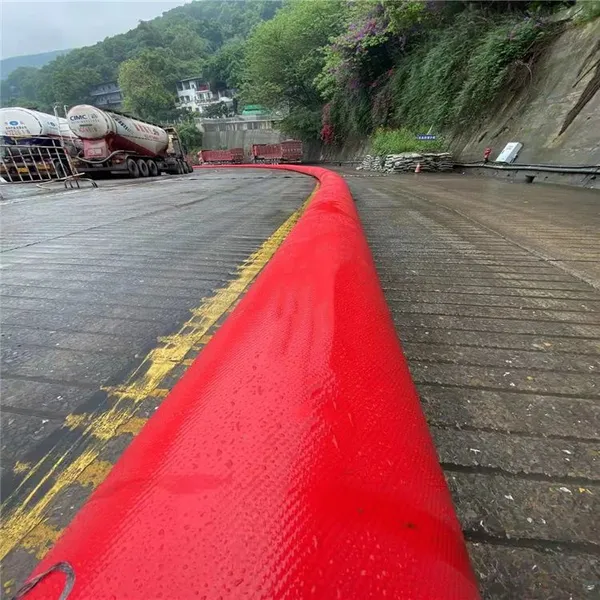

Large Diameter Frac TPU Oil Hose photo-5
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Biaohui
Place of Origin:
China
Model Number:
complete
Contact Supplier Request Quote Chat Now
Hebei Biaohui Rubber And Plastic Products Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Biaohui
Place of Origin China
Model Number complete
Material Other, TPU
Length 50/100200m
Thickness 6mm
Specification 50-200mm
Standard JB/T8512-2014

 Large Diameter Frac TPU Oil Hose

At present, the commonly used fracturing method for shale oil and gas exploitation domestic and global is hydraulic fracturing, which is to crack the formation through high-pressure fluid to generate fluid channels with strong conductivity, so as to improve production. Because the environment for shale oil and gas production is not suitable for direct transportation of water, dedicated hydraulic hoses for shale oil and gas production are used during the fracturing process.Nipple and Clamp:


Hydraulic fracturing water supply hoses for shale oil and gas production are mainly used to transport fracturing fluids with large flow and high pressure over a long distance during hydraulic fracturing of shale oil and gas production, and to send contaminated fluids back from underground to sewage treatment plants.



 Shale oil and gas exploitation fracturing water supply hose is a kind of single-forming co-extruded double-sided polyurethane hose, which is composed of inner TPU layer, fiber reinforced layer and outer TPU layer. The inner and outer layer are made of polyurethane elastomer material with ultra-high wear resistance, and the braided layer is made of high-strength polyester filament.


It is flat when it is not in use, which has the advantages of small volume, easy winding, convenient storage and transportation. Products with high strength, long length, large diameter, high pressure, abrasion resistance, puncture resistance, weather resistance, chemical resistance, large flow, convenient connection and other characteristics, can adapt to different landforms and geomorphology, can be widely used in a variety of complex environments.

ID Tolerance Wall Thickness Service
Pressure		 Minimum
Burst Pressure		 Weight Elongation
At WP%		 Expansion
At WP%		 Temperature
Range
inch mm mm inch mm psi psi lbs/ft tolerance
lbs/ft		 kg/m tolerance
kg/m		 max max
2" 51 51.0-53.0 0.071±0.008 1.80±0.20 250 750 0.28 ±0.067 0.42 ±0.10 ≤1 ≤8 -50ºC to 80ºC

-58ºF to 176ºF
2" 51 51.0-53.0 0.138±0.008 3.50±0.20 410 1230 0.47 ±0.067 0.70 ±0.10 ≤2 ≤8
3" 76 76.0-78.0 0.118±0.012 3.00±0.30 250 750 0.60 ±0.067 0.90 ±0.10 ≤1 ≤8
3" 76 76.0-78.0 0.126±0.012 3.20±0.30 410 1230 0.70 ±0.067 1.05 ±0.10 ≤1 ≤8
4" 102 102-104.5 0.110±0.012 2.80±0.30 200 600 0.72 ±0.067 1.08 ±0.10 ≤1 ≤8
4" 102 102-104.5 0.138±0.012 3.50±0.30 250 750 0.87 ±0.067 1.30 ±0.10 ≤1 ≤8
4" 102 102-104.5 0.142±0.012 3.60±0.30 300 900 0.94 ±0.067 1.40 ±0.10 ≤1 ≤8
4" 102 102-104.5 0.189±0.016 4.80±0.40 610 1830 1.27 ±0.067 1.90 ±0.10 ≤1 ≤8
5" 125 125-127.5 0.142±0.012 3.60±0.30 150 450 1.21 ±0.134 1.80 ±0.20 ≤1 ≤8
6" 152 154-157 0.126±0.012 3.20±0.30 150 450 1.27 ±0.067 1.90 ±0.10 ≤1 ≤8
6" 152 154-157 0.149±0.012 3.80±0.30 250 750 1.41 ±0.067 2.10 ±0.10 ≤1 ≤8
6" 152 154-157 0.165±0.012 4.20±0.30 300 900 1.68 ±0.134 2.50 ±0.20 ≤2 ≤8
6" 152 154-157 0.228±0.016 5.80±0.40 410 1230 2.28 ±0.201 3.40 ±0.30 ≤2 ≤8
6" 152 154-157 0.216±0.016 5.50±0.40 610 1830 2.14 ±0.201 3.20 ±0.30 ≤2 ≤8
8" 204 204-207 0.149±0.012 3.80±0.30 200 600 1.94 ±0.134 2.90 ±0.20 ≤1 ≤10
8" 204 204-207 0.157±0.016 4.00±0.40 250 750 2.28 ±0.201 3.40 ±0.30 ≤1 ≤10
8" 204 204-207 0.165±0.016 4.20±0.40 300 900 2.35 ±0.201 3.50 ±0.30 ≤1 ≤10
8" 204 204-207 0.165±0.016 4.20±0.40 410 1230 2.68 ±0.201 4.00 ±0.30 ≤1 ≤10
10" 254 256-259 0.165±0.016 4.20±0.40 200 600 2.68 ±0.201 4.00 ±0.30 ≤1 ≤10
10" 254 256-259 0.177±0.016 4.50±0.40 250 750 3.02 ±0.201 4.50 ±0.30 ≤1 ≤10
10" 254 256-259 0.197±0.016 5.00±0.40 300 900 3.69 ±0.201 5.50 ±0.30 ≤2 ≤8
12" 306 306-311 0.165±0.016 4.20±0.40 150 450 2.81 ±0.201 4.20 ±0.30 ≤1 ≤8
12" 306 306-311 0.197±0.016 5.00±0.40 200 600 3.48 ±0.201 5.20 ±0.30 ≤2 ≤8
14" 356 356-360 0.189±0.016 4.80±0.40 150 450 4.36 ±0.268 6.50 ±0.40 ≤1 ≤8
16" 406 406-410 0.197±0.020 5.00±0.50 100 300 4.56 ±0.268 6.80 ±0.40 ≤1 ≤10
16" 406 406-410 0.212±0.020 5.40±0.50 150 450 5.23 ±0.268 7.80 ±0.40 ≤1 ≤10

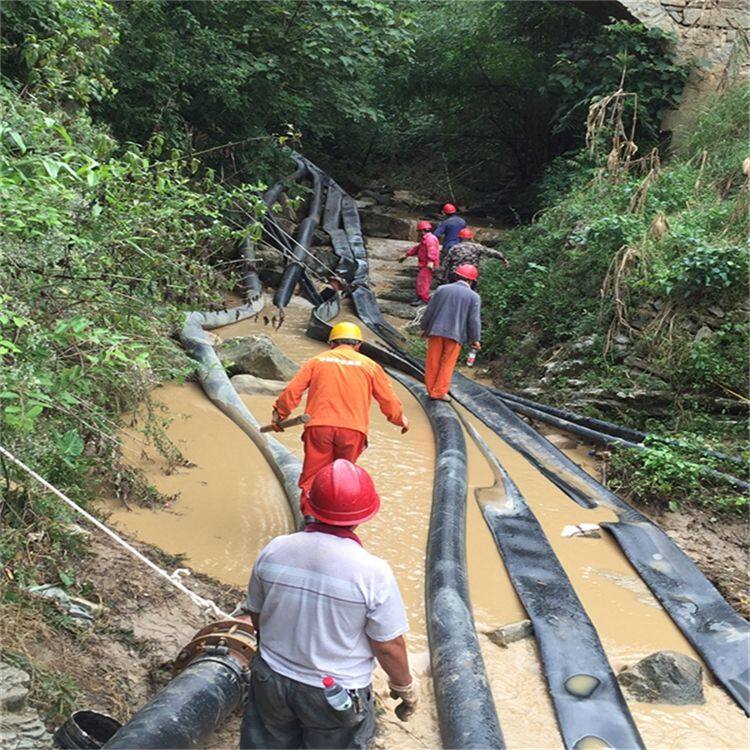

15547128076525_副本

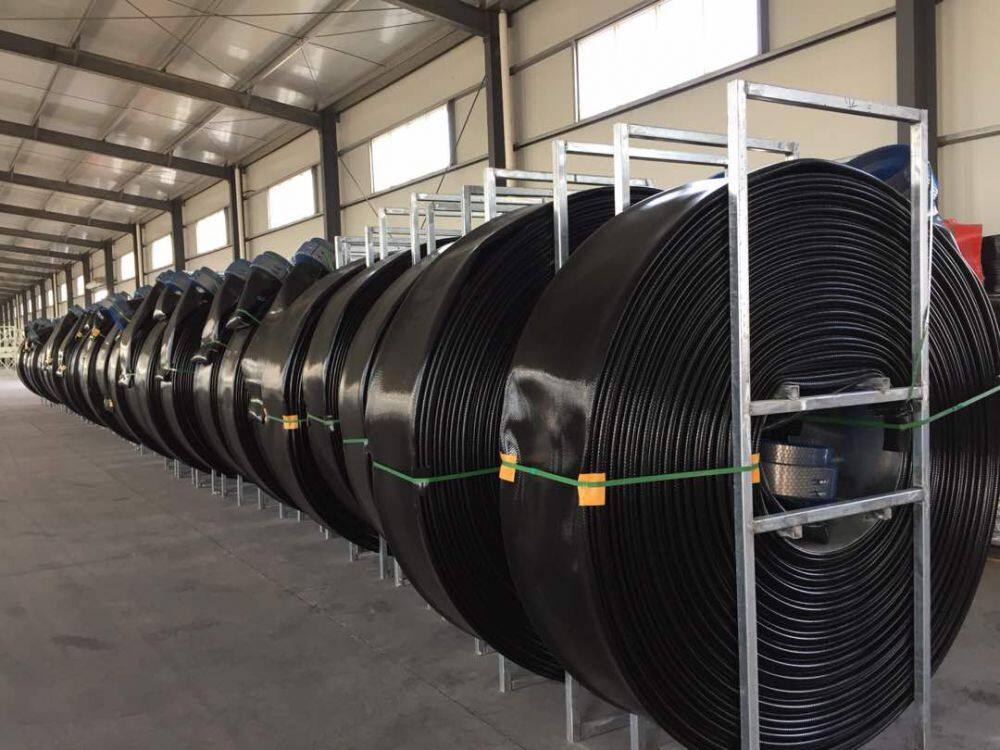

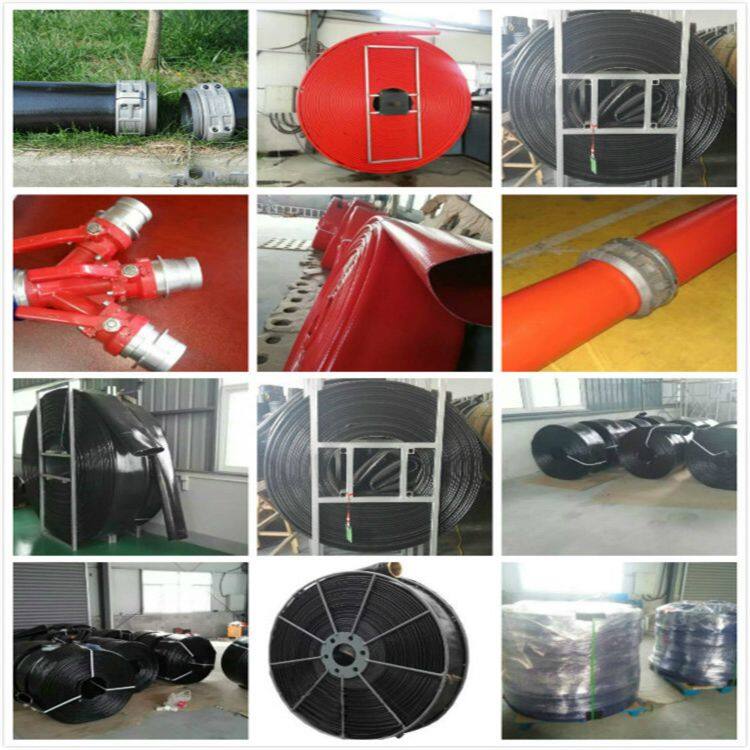

10-25-36-30-1197717_meitu_7_meitu_1_meitu_22507c6f84-c77d-4ac6-8d36-74ffcff9a05f

Product Tags: TPU mining hose , TPU oil and gas hose , TPU hoses for oil fields
