TPU / PU Drag Hose for Agriculutre
Negotiable
MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Biaohui
Place of Origin:
China
Model Number:
complete
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
5 days
Related Products
-
TPU Manure and Sludge Hose for Agriculture Farm Water Delivery Discharge IrrigationNegotiableMOQ: 1 Bag -
Manure Solution Drag Hose Irrigation Sludge Discharge Liquid Fertilizers Discharge for AgricultureNegotiableMOQ: 1 Bag
-
Farm Drag Hose Manure Solution Irrigation HoseNegotiableMOQ: 1 Bag
-
Large Caliber Flat Polyurethane Hose Can be Flattened and CoiledNegotiableMOQ: 1 Bag
-
Large Caliber Water Hose, High-pressure Flat and Easy to Curl TPU Material, Wear-resistant, Acid and Alkali ResistantNegotiableMOQ: 1 Bag
Brand Name
Biaohui
Place of Origin
China
Model Number
complete
Material
Other, TPU
Length
50/100/200m
Thickness
5mm
Specification
50-200mm
Standard
JB/T8512-2014
TPU / PU Drag Hose for Agriculutre
Drag Hose
Through-the-weave TPU Hose
Cover and Lining: TPU, Ribbed cover or smooth cover
Reinforcement Jacket: High tenacity synthetic jacket.

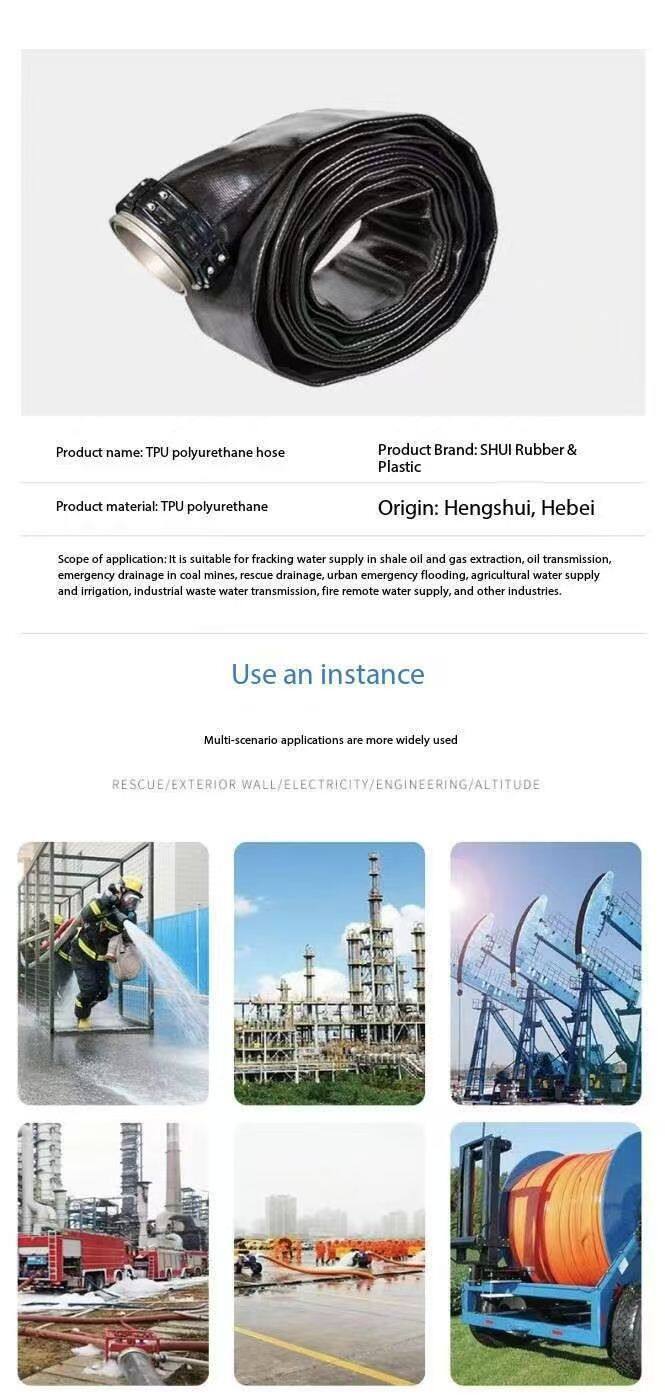

Application: Irrigation, Sludge discharge, Liquid fertilizers discharge, Supply or Drag hose.
Standard length: 30m (100ft), 61m (200ft), 91.5m (300ft), 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft).
* High Tensile Polyester Contnuous Weave Jacket
* Through-the-Weave Extruded Construction Encapsulating the Woven Jacket
* TPU Thermoplastic Resin for Highest Abrasion Resistance in a Wide Range of Field Conditions
* Optimized Design for Low/No Kink in Tight Turn Situations
* Tem Range: -40° F to 160° F
* 5 1/2", 6" and 7" Diameters are Available in 660' and 1320' Lengths
| ID | Tolerance | Wall Thickness | Service Pressure | Minimum Burst Pressure | Weight | Tensile Strength | ||||
| inch | mm | mm | inch | mm | bar/psi | bar/psi | kg/m | lbs/ft | kgs | lbs |
| 4" | 102 | +2.50 | 0.16 | 4.20 | 13/200 | 39/600 | 1.60 | 1.07 | 16500 | 36500 |
| 5" | 127 | +3.00 | 0.17 | 4.30 | 12/160 | 36/480 | 2.00 | 1.34 | 19500 | 43000 |
| 5-1/2" | 140 | +3.00 | 0.17 | 4.30 | 10/150 | 30/450 | 2.40 | 1.61 | 21000 | 47500 |
| 6" | 154 | +3.00 | 0.18 | 4.50 | 10/150 | 30/450 | 2.80 | 1.88 | 25000 | 55500 |
| 7" | 178 | +3.00 | 0.18 | 4.50 | 10/150 | 30/450 | 3.20 | 2.14 | 31000 | 68000 |
