Polyurethane Lay Flat Hose for Water Delivery

TPU Layflat Hose is made from extruded thermoplastic polyester based polyurethane (TPU) with excellent wear & tear properties. It’s reinforced with circular woven filament polyester yarn.

TPU Layflat Hose Structure

Tube & Cover: TPU

Reinforcement: Woven polyester jacket

Temperature: -55℃ to +80℃ (-67℉ to +176℉)

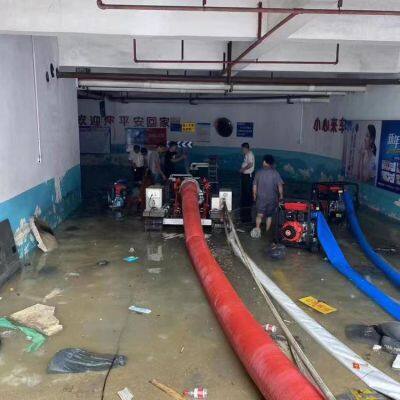

Application: Fire fighting, shipping, petroleum, chemical industry, agriculture and mining.

The “extrusion through-the-weave” production method offers a very strong bonding between cover and lining and firmly encapsulating the woven polyester. Its has excellent wear, gouging, and tear resistance.

It is also resistant to many chemicals and its superior construction makes it light in weight and permits it to be made in very long length even in larger diameters. The interlocked reinforcement weaves ensure the extension in hose length is minimized when the hose is pulled or pressurized – which also keeps “snaking” of the hose to a minimum.

TPU Hose Features

• Acid, alkali and corrosion resistant

• Abrasion and oil resistant

• Cold and small flow resistant

TPU Layflat Hose Advantages

• Standard color black, other colors on request

• Individual marking available

• Binding with international couplings available on request

• Other diameters on request

• Standard lengths 100m and 200m

TPU Layflat Hose Specification
