Farm Drag Hose Manure Solution Irrigation Hose
- 500 Bag / Bags per Month
- Tianjin Shanghai
- T/T
- 5 days
You May Like
-
Large caliber flat polyurethane hose can be flattened and coiled
-
Large caliber water hose, high-pressure flat and easy to curl TPU material, wear-resistant, acid and alkali resistant
-
Large caliber water hose, high-pressure flat and easy to curl TPU material, wear-resistant, acid and alkali resistant
-
TPU Layflat High-pressure Hose is Foldable, Lightweight, and Compact in Size
-
Anti-Static Polyurethane Layflat Hose/Marine Industrial Oil Hose
-
Polyester Reinforced TPU Liner Flat Water Supply Hose Fire Control Hose
Product Details
Brand Name | Biaohui | Place of Origin | China | |
Model Number | complete | Material | Other, TPU | |
Length | 50/100/200m | Thickness | 5mm | |
Specification | 50-200mm | Standard | JB/T8512-2014 |
Product Description
Drag water hose
Farm Drag Hose Manure Solution Irrigation Hose
Agricultural drag hose
Characteristics of agricultural drag hose products:
The inner wall is smooth, the water flow resistance is low, and it has good pressure resistance, wear resistance, seawater resistance, acid and alkali resistance, puncture resistance, aging resistance, easy cleaning, and no mold. It has a long service life and can be used in various complex environments. The product has a large diameter, high pressure resistance, and high conveying efficiency. It can transport various media such as water and oil without polluting the conveying media. It has the characteristics of flat winding, flexible maneuverability, simple assembly, and large single length.
Production process: One time co extrusion technology
Product structure: The weaving layer is made of high-strength polyester filament, and the inner and outer layers are made of high-quality polyurethane or synthetic rubber.

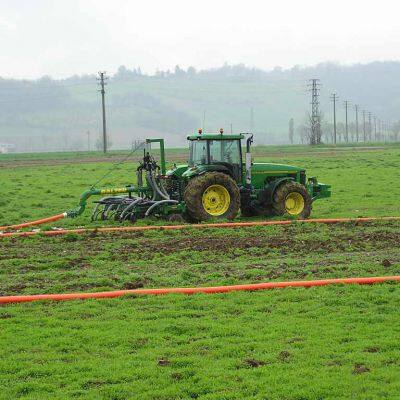

Application areas: Widely used in agricultural irrigation, manure and water returning, emergency water supply and drainage systems, oil and gas pressure cracking and mining, and other fields.
Standard length: Customized length according to customer requirements.
Product colors: Black, Orange
I.D. | Tolerance | Wall | Thickness | Service Pressure | Minimum Burst Pressure | Weight | Elongation At WP | Expansion At WP | Temperaturer | ||||
inch | mm | mm | inch | mm | psi | psi | Lbs/ft | Tolerance lbs/ft | Kg/m | Tolerance kg/m | max | max | |
3" | 76 | 76-78 | 0.118±0.008 | 3.0±0.2 | 200 | 645 | 0.67 | ±0.067 | 1.0 | ±0.1 | ≤5 | ≤5 | -30 to +80 (-22 to +176) |
4" | 102 | 102-104 | 0.126±0.012 | 3.2±0.3 | 200 | 600 | 0.938 | ±0.067 | 1.4 | ±0.1 | ≤5 | ≤5 | |
6" | 152 | 154-157 | 0.126±0.012 | 3.2±0.3 | 200 | 600 | 1.47 | ±0.067 | 2.2 | ±0.1 | ≤5 | ≤5 | |
6" | 152 | 154-157 | 0.138±0.012 | 3.2±0.3 | 250 | 750 | 1.68 | ±0.067 | 2.5 | ±0.1 | ≤5 | ≤5 | |
6" | 152 | 154-157 | 0.166±0.012 | 4.2±0.3 | 300 | 900 | 1.88 | ±0.134 | 2.8 | ±0.2 | ≤5 | ≤5 | |
8" | 204 | 204-207 | 0.158±0.012 | 4.0±0.3 | 200 | 600 | 2.4 | ±0.134 | 3.58 | ±0.2 | ≤5 | ≤5 | |
8" | 204 | 204-207 | 0.166±0.012 | 4.2±0.3 | 300 | 900 | 2.51 | ±0.134 | 3.75 | ±0.2 | ≤5 | ≤5 | |
8" | 204 | 204-207 | 0.197±0.012 | 5.0±0.3 | 400 | 1200 | 2.75 | ±0.134 | 4.1 | ±0.2 | ≤5 | ≤5 | |
10" | 254 | 254-257 | 0.173±0.016 | 4.4±0.4 | 200 | 600 | 3.10 | ±0.134 | 4.63 | ±0.2 | ≤5 | ≤5 | |
10" | 254 | 254-257 | 0.177±0.016 | 4.5±0.4 | 300 | 900 | 3.35 | ±0.134 | 5 | ±0.2 | ≤5 | ≤5 | |
12" | 306 | 306-311 | 0.188±0.016 | 4.8±0.4 | 150 | 450 | 3.92 | ±0.201 | 5.85 | ±0.3 | ≤5 | ≤5 | |
12" | 306 | 306-311 | 0.177±0.016 | 4.5±0.4 | 200 | 600 | 3.82 | ±0.201 | 5.7 | ±0.3 | ≤5 | ≤5 | |
14" | 356 | 356-360 | 0.188±0.016 | 4.8±0.4 | 150 | 450 | 4.89 | ±0.201 | 7.3 | ±0.3 | ≤5 | ≤5 | |
16" | 400 | 406-411 | 0.188±0.016 | 4.8±0.4 | 100 | 300 | 4.96 | ±0.201 | 7.4 | ±0.3 | ≤5 | ≤5 |
