TPU Frac Hose for Shale Oil & Gas Develop Fracflo

TPU Frac Hose for Shale Oil & Gas Develop Fracflo thumbnail-1
TPU Frac Hose for Shale Oil & Gas Develop Fracflo thumbnail-2
TPU Frac Hose for Shale Oil & Gas Develop Fracflo thumbnail-3
TPU Frac Hose for Shale Oil & Gas Develop Fracflo thumbnail-4

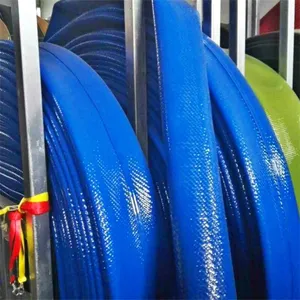

TPU Frac Hose for Shale Oil & Gas Develop Fracflo thumbnail-5
TPU Frac Hose for Shale Oil & Gas Develop Fracflo photo-1
TPU Frac Hose for Shale Oil & Gas Develop Fracflo photo-2
TPU Frac Hose for Shale Oil & Gas Develop Fracflo photo-3

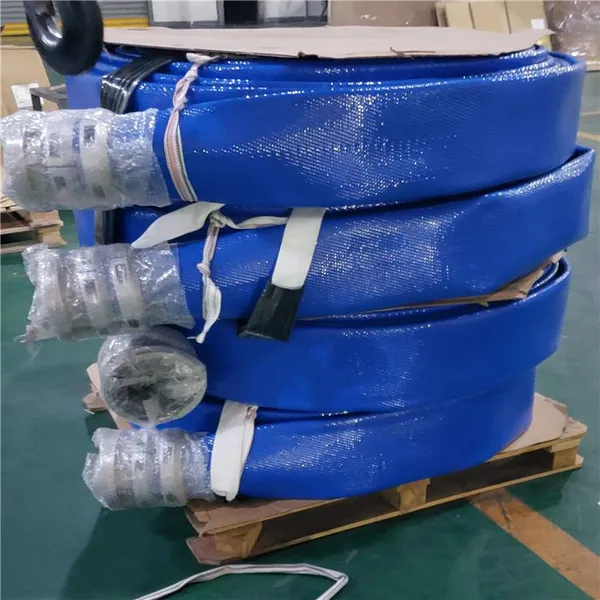

TPU Frac Hose for Shale Oil & Gas Develop Fracflo photo-4

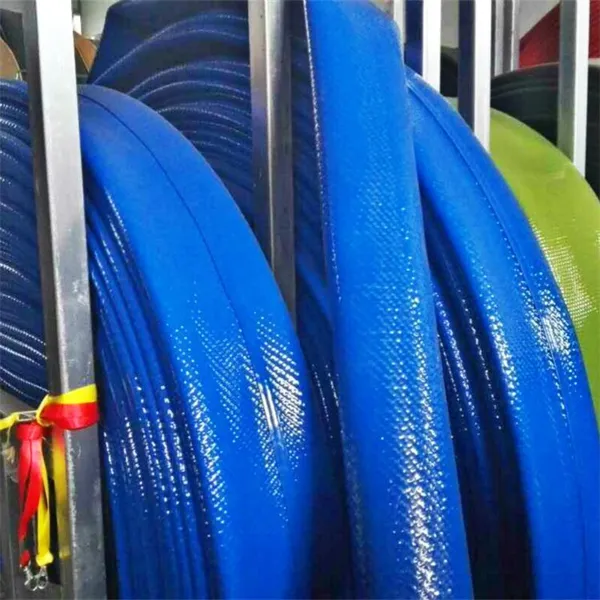

TPU Frac Hose for Shale Oil & Gas Develop Fracflo photo-5
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Biaohui
Place of Origin:
China
Model Number:
Frac hose
Contact Supplier Request Quote Chat Now
Hebei Biaohui Rubber And Plastic Products Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Biaohui
Place of Origin China
Model Number Frac hose
Material Other, TPU
Length 50/100/200m
Thickness 6mm
Specification 1 1/2“ - 16“
Standard international standard
Weaving Type Twill & Plain Weave
Working Pressure 8-28bar
Hose Coupling Structure Coupling
Service Pressure 8-28 Bar
Color Customize
Burst Pressure 20-126 Bar
Origin China

TPU Frac Hose for Shale Oil & Gas Develop Fracflo

Through-the-weave TPU frac water hose
Color:Black
Cover and Lining: TPU, Ribbed cover or smooth cover.
Reinforcement Jacket: High tenacity synthetic jacket.
Application: Water transfer Fracturing
Available length: 30m (100ft), 61m (200ft), 90m (300ft), 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft)
Hose can be with glow line on special requests!
The reinforcement is made from circular woven filament polyester yarn. The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation. The abrasion resistance of the TPU is one of the highest available, making the hose ideal for use in the extremely abrasive environment in open pit mines.
The outer cover has been designed with extra thickness in order to add wear & tear material. This extends the useful lifespan of the hose.
Extra abrasion resistance for rugged terrain and extreme conditions. Resistant to oil and chemicals. UV Stabilized.
Abrasion: 4000 DIN cycles
Temperature range: -50ºC to 80ºC (-58ºF to +176ºF)


ID Tolerance Wall Thickness Service
Pressure		 Minimum
Burst Pressure		 Weight Elongation
At WP%		 Expansion
At WP%		 Temperature
Range
inch mm mm inch mm psi psi lbs/ft tolerance
lbs/ft		 kg/m tolerance
kg/m		 max max
2" 51 51.0-53.0 0.071±0.008 1.80±0.20 250 750 0.28 ±0.067 0.42 ±0.10 ≤1 ≤8 -50ºC to 80ºC

-58ºF to 176ºF
2" 51 51.0-53.0 0.138±0.008 3.50±0.20 410 1230 0.47 ±0.067 0.70 ±0.10 ≤2 ≤8
3" 76 76.0-78.0 0.118±0.012 3.00±0.30 250 750 0.60 ±0.067 0.90 ±0.10 ≤1 ≤8
3" 76 76.0-78.0 0.126±0.012 3.20±0.30 410 1230 0.70 ±0.067 1.05 ±0.10 ≤1 ≤8
4" 102 102-104.5 0.110±0.012 2.80±0.30 200 600 0.72 ±0.067 1.08 ±0.10 ≤1 ≤8
4" 102 102-104.5 0.138±0.012 3.50±0.30 250 750 0.87 ±0.067 1.30 ±0.10 ≤1 ≤8
4" 102 102-104.5 0.142±0.012 3.60±0.30 300 900 0.94 ±0.067 1.40 ±0.10 ≤1 ≤8
4" 102 102-104.5 0.189±0.016 4.80±0.40 610 1830 1.27 ±0.067 1.90 ±0.10 ≤1 ≤8
5" 125 125-127.5 0.142±0.012 3.60±0.30 150 450 1.21 ±0.134 1.80 ±0.20 ≤1 ≤8
6" 152 154-157 0.126±0.012 3.20±0.30 150 450 1.27 ±0.067 1.90 ±0.10 ≤1 ≤8
6" 152 154-157 0.149±0.012 3.80±0.30 250 750 1.41 ±0.067 2.10 ±0.10 ≤1 ≤8
6" 152 154-157 0.165±0.012 4.20±0.30 300 900 1.68 ±0.134 2.50 ±0.20 ≤2 ≤8
6" 152 154-157 0.228±0.016 5.80±0.40 410 1230 2.28 ±0.201 3.40 ±0.30 ≤2 ≤8
6" 152 154-157 0.216±0.016 5.50±0.40 610 1830 2.14 ±0.201 3.20 ±0.30 ≤2 ≤8
8" 204 204-207 0.149±0.012 3.80±0.30 200 600 1.94 ±0.134 2.90 ±0.20 ≤1 ≤10
8" 204 204-207 0.157±0.016 4.00±0.40 250 750 2.28 ±0.201 3.40 ±0.30 ≤1 ≤10
8" 204 204-207 0.165±0.016 4.20±0.40 300 900 2.35 ±0.201 3.50 ±0.30 ≤1 ≤10
8" 204 204-207 0.165±0.016 4.20±0.40 410 1230 2.68 ±0.201 4.00 ±0.30 ≤1 ≤10
10" 254 256-259 0.165±0.016 4.20±0.40 200 600 2.68 ±0.201 4.00 ±0.30 ≤1 ≤10
10" 254 256-259 0.177±0.016 4.50±0.40 250 750 3.02 ±0.201 4.50 ±0.30 ≤1 ≤10
10" 254 256-259 0.197±0.016 5.00±0.40 300 900 3.69 ±0.201 5.50 ±0.30 ≤2 ≤8
12" 306 306-311 0.165±0.016 4.20±0.40 150 450 2.81 ±0.201 4.20 ±0.30 ≤1 ≤8
12" 306 306-311 0.197±0.016 5.00±0.40 200 600 3.48 ±0.201 5.20 ±0.30 ≤2 ≤8
14" 356 356-360 0.189±0.016 4.80±0.40 150 450 4.36 ±0.268 6.50 ±0.40 ≤1 ≤8
16" 406 406-410 0.197±0.020 5.00±0.50 100 300 4.56 ±0.268 6.80 ±0.40 ≤1 ≤10
16" 406 406-410 0.212±0.020 5.40±0.50 150 450 5.23 ±0.268 7.80 ±0.40 ≤1 ≤10


15547128076525_副本

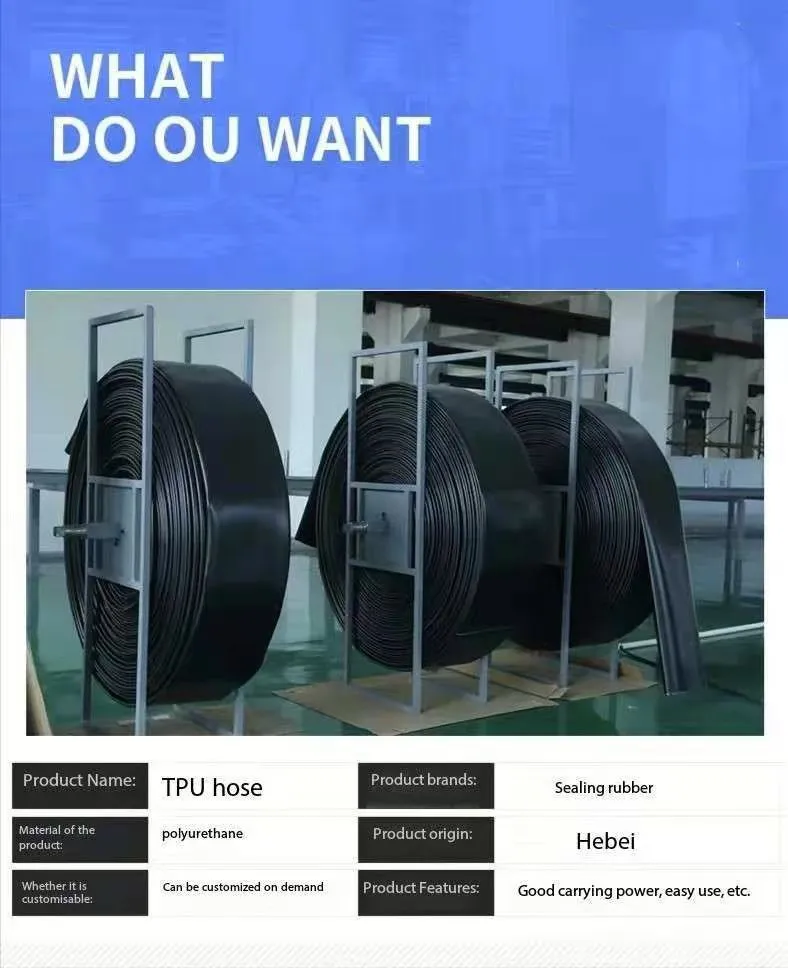

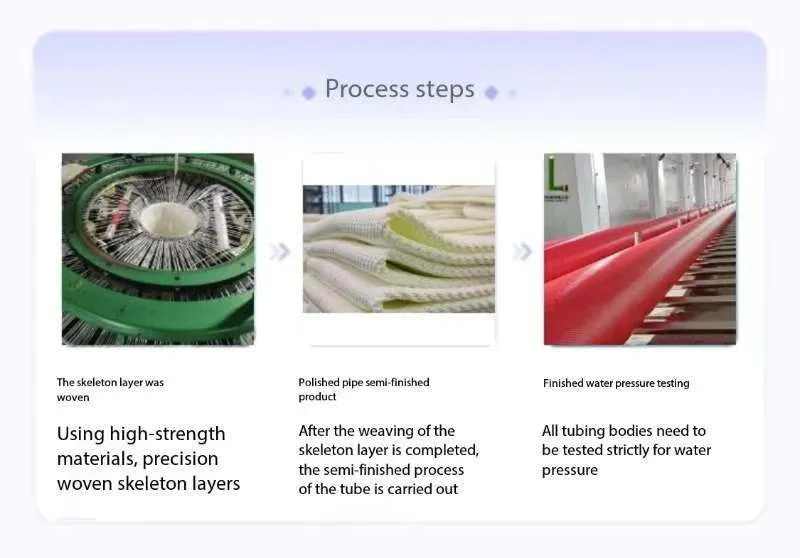

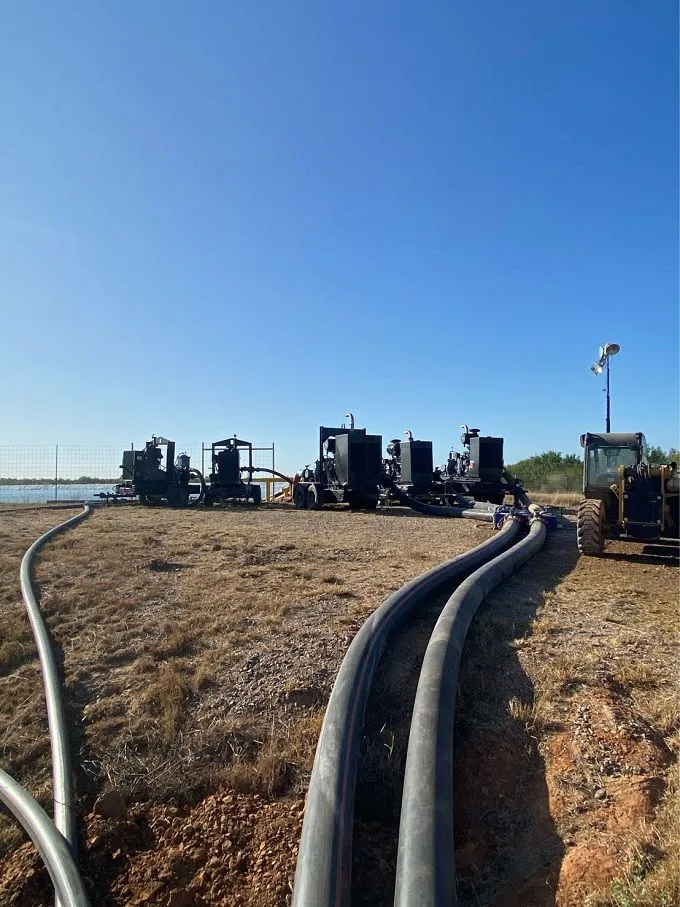

202012021511547b2484390cecd80f8678ffc4e59fdb536913e77650e45b436b074add7492da7737e8


Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.

contact information:

Company Name: Hebei Biaohui Rubber Products Co., Ltd

Address: Zhanggehou Rubber and Plastic Base, Jing County, Hebei Province

Telehone: +86 15075803959

E-mail: info@biaohuihose.com

WhatsApp：+86 15075803959

WeChat ： +8615075803959


Product Tags: TPU mining hose , TPU oil and gas hose , TPU hoses for oil fields
