8 Inch TPU Layflat Hose High Pressure Water and Oil Field Use Frac Hose
- Tianjin Shanghai
- T/T
- 5 days
You May Like
-
Oil and Gas Develop Use Large Diameter High Pressure Polyurethanes TPU Layflat Hose Discharge Water Hose
-
Oil and Gas Develop Use Large Diameter High Pressure Polyurethanes TPU Layflat Hose Discharge Water Hose
-
Through-The-Weave TPU Hose for Oilfield Shale Gas & Oil Develop
-
10" Inch Frac TPU Hose for Oilfield Shale Gas & Oil Develop
-
TPU mine emergency drainage hose is foldable, quick to connect, and easy to install
-
14 inch Polyurethane Drainage Hose for Gold and Iron Mines, Foldable Coil, Lightweight, Wear-resistant, Durable, and quick to connect
Product Details
| Brand Name | Biaohui | Place of Origin | China | |
| Model Number | complete | Material | Other, TPU | |
| Length | 10-600m | Thickness | 5mm | |
| Specification | 1 1/2“ - 16“ | Standard | JB/T8512-2014 | |
| Weaving Type | Twill & Plain Weave | Working Pressure | 8-28bar | |
| Hose Coupling Structure | Coupling | Burst Pressure | 20-126 Bar | |
| Color | Customize |
Product Description
TPU Layflat Hose
8 Inch TPU Layflat Hose High Pressure Water and Oil Field Use Frac Hose

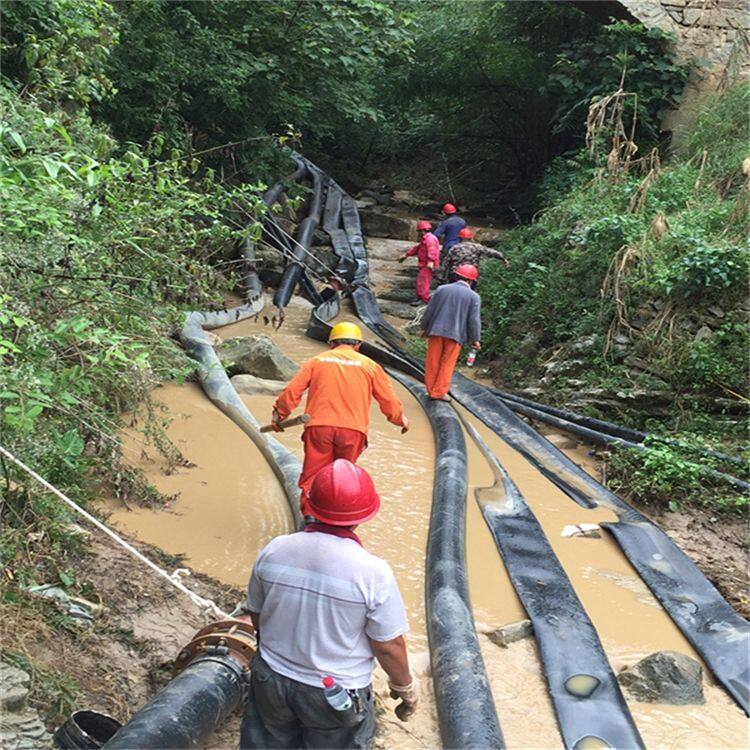

Fracturing hoses for shale oil and gas extraction are mainly used for long-distance, high flow, and high-pressure transportation of fracturing fluids during hydraulic fracturing of shale oil and gas extraction, as well as for the return of contaminated fluids from underground to sewage treatment plants.
Shale oil and gas development fracturing hose, shale oil and gas pressure fracturing hose, flat polyurethane shale oil and gas development hose, shale gas pressure fracturing hose, shale oil and gas development fracturing water supply large-diameter polyurethane hose
Features: High strength, long length, large diameter, high efficiency, wear and puncture resistance, low elongation, low expansion, etc. The conveying flow is large, the connection is convenient, the weather resistance and chemical resistance are good, and it can adapt to different terrains and landforms. When not in use, it is flat, easy to roll, and has a small storage and transportation volume. The operating temperature ranges from -122F C to 159F C
Cover and Lining: PU, Ribbed cover or smooth cover Reinforcement Jacket: High-tenacity synthetic jacket Color: Black,
Available length: 30m (100ft), 61m(200ft), 91.5m (300ft), 100m (330ft) 200m(660ft), 300m(990ft), 400m(1320ft), also can be customized according to requirements
Available Internal Diameters: 2'', 3'', 4'', 6'', 8'', 10'', 12'', 14'', 16''
| I.D. | Tolerance | Wall Thickness | Service Pressure | Minimum Burst Pressure | Weight | Elongation At WP% | Expansion At WP% | Temperature Range | |||||
| inch | mm | mm | inch | mm | psi | psi | Lbs/ft | Tolerance lbs/ft | Kg/m | Tolerance kg/m | max | max | |
| 2" | 51 | 51-53 | 0.071±0.008 | 1.8±0.2 | 250 | 750 | 0.28 | ±0.067 | 0.42 | ±0.1 | ≤1 | ≤8 | -50 to +80 (-58 to +176) |
| 3" | 76 | 76-78 | 0.126±0.012 | 3.2±0.3 | 250 | 750 | 0.64 | ±0.067 | 0.95 | ±0.1 | ≤1 | ≤8 | |
| 4" | 102 | 102-104.5 | 0.11±0.012 | 2.8±0.3 | 200 | 600 | 0.72 | ±0.067 | 1.08 | ±0.1 | ≤1 | ≤8 | |
| 4" | 102 | 102-104.5 | 0.138±0.012 | 3.5±0.3 | 250 | 750 | 0.94 | ±0.067 | 1.4 | ±0.1 | ≤1 | ≤8 | |
| 4" | 102 | 125-127.5 | 0.138±0.012 | 3.5±0.3 | 300 | 900 | 0.87 | ±0.067 | 1.3 | ±0.1 | ≤1 | ≤8 | |
| 5" | 125 | 154-157 | 0.165±0.012 | 4.2±0.3 | 150 | 300 | 1.2 | ±0.134 | 1.8 | ±0.2 | ≤1 | ≤8 | |
| 6" | 152 | 154-157 | 0.118±0.012 | 3±0.3 | 150 | 450 | 1.07 | ±0.067 | 1.6 | ±0.1 | ≤1 | ≤8 | |
| 6" | 152 | 154-157 | 0.15±0.012 | 3.8±0.3 | 250 | 750 | 1.41 | ±0.134 | 2.1 | ±0.1 | ≤1 | ≤8 | |
| 6" | 152 | 154-157 | 0.165±0.012 | 4.2±0.3 | 300 | 900 | 1.74 | ±0.201 | 2.6 | ±0.2 | ≤2 | ≤8 | |
| 6" | 152 | 154-157 | 0.228±0.016 | 5.5±0.4 | 640 | 1230 | 2.11 | ±0.201 | 3.15 | ±0.3 | ≤2 | ≤8 | |
| 6" | 152 | 154-157 | 0.228±0.016 | 5.6±0.4 | 725 | 1830 | 2.14 | ±0.134 | 3.5 | ±0.3 | ≤2 | ≤8 | |
| 8" | 204 | 204-207 | 0.15±0.012 | 3.8±0.3 | 200 | 600 | 1.94 | ±0.134 | 2.9 | ±0.2 | ≤1 | ≤10 | |
| 8" | 250 | ||||||||||||
| 8" | 204 | 204-207 | 0.177±0.016 | 4.5±0.4 | 300 | 900 | 2.28 | ±0.134 | 3.4 | ±0.2 | ≤1 | ≤10 | |
| 10" | 254 | 256-259 | 0.165±0.016 | 4.2±0.4 | 200 | 600 | 2.75 | ±0.201 | 4.1 | ±0.2 | ≤1 | ≤10 | |
| 10" | 250 | ||||||||||||
| 10" | 254 | 256-259 | 0.197±0.016 | 5.0±0.4 | 300 | 900 | 3.75 | ±0.201 | 5.6 | ±0.3 | ≤2 | ≤8 | |
| 12" | 306 | 306-311 | 0.165±0.016 | 4.2±0.4 | 150 | 450 | 3.33 | ±0.201 | 4.97 | ±0.3 | ≤1 | ≤8 | |
| 12" | 306 | 306-311 | 0.228±0.0197 | 5.8±0.5 | 200 | 600 | 4.3 | ±0.201 | 6.4 | ±0.3 | ≤2 | ≤8 | |
| 14" | 356 | 356-360 | 0.205±0.0197 | 5.2±0.5 | 150 | 450 | 4.96 | ±0.201 | 7.4 | ±0.3 | ≤1 | ≤8 | |
| 16" | 406 | 406-410 | 0.205±0.0197 | 5.2±0.5 | 150 | 300 | 5.09 | ±0.201 | 7.6 | ±0.3 | ≤1 | ≤10 | |
