Home > Computer Products > Computer > Gaming Computer > Partaker PfSense 1U Firewall Intel Core i3 2350M i5 2520M i7 2620M 8 x Intel 82574L LAN 2 x SFP 82599ES 10 Gigabit VPN OPNsense

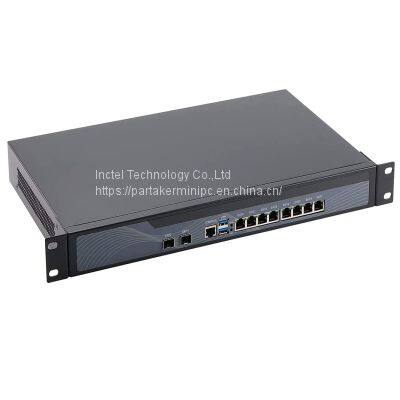

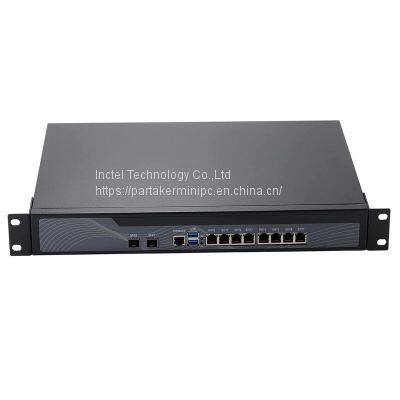

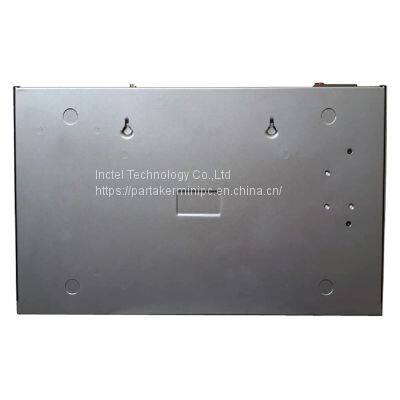

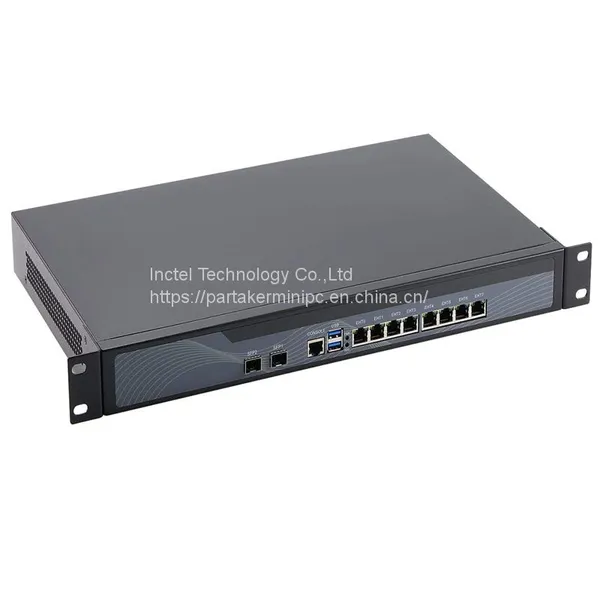

Partaker PfSense 1U Firewall Intel Core i3 2350M i5 2520M i7 2620M 8 x Intel 82574L LAN 2 x SFP 82599ES 10 Gigabit VPN OPNsense
US$ 150 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Partaker
Place of Origin:
China
Model Number:
R13
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen zhen
Delivery Detail:
3 days
Related Products
-
1U Rackmount Firewall Appliance 12th Intel Core I9 12900 I7 12700 I5 12400 I3 12100 6 LAN Soft Router PfSense OPNsense MikrotikUS$ 150 - 200MOQ: 1 Piece -
1U Rackmount Firewall Appliance B85 Z87 LGA1155 Intel i7 4770 i5 4460 i3 4160 With 6 Intel NICs Soft Router PfSense OPNsenseUS$ 150 - 200MOQ: 1 Piece
-
1U 19 Inch Rack Mount Firewall Appliance B85 Z87 Intel Core I7 4770 i5 4460 i3 4160 With 6 Ethernet 2 X10GB SFP PfSense OPNsenseUS$ 150 - 200MOQ: 1 Piece
-
1U 19 Inch Rack Mount Firewall Appliance B75 Xeon E3 1225V2 I7 3770 i5 3470 i3 3220 With 6 Ethernet 2 SFP PfSense OPNsense VPNUS$ 150 - 200MOQ: 1 Piece
-
1U Rackmount Network Firewall Appliance B75 LGA1155 Intel i7 3770 i5 3470 i3 3220 With 6 Intel NICs Soft Router PfSense OPNsenseUS$ 150 - 200MOQ: 1 Piece
Brand Name
Partaker
Place of Origin
China
Model Number
R13
Type
Other, Mini Desktop
Processor Brand
Intel
Processor Main Frequency
Depend on CPUs
Graphics Card Type
Dedicated Card
Hard Drive Capacity
≤ 40GB
Memory Capacity
≤ 128MB
Mechanical
| Chassis | Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad |
| Colour | Black |
| Size | 420 x280 x 48(mm) |
| Weight | 6.5Kgs |
| Insallation Method | Desktop type/rack mounting |
Motherboard
| CPU |
2th Gen Intel Core I3 2328M / 2350M / 2370M, ship one of them 2th Gen Intel Core i5- 2430M / 2520M / 2540M Processor, ship one of them 2th Gen Intel Core i7-2620M / 2640M Processor, ship one of them 3th Gen Intel Core i3-3110M / 3120M Processor, ship one of them 3th Gen Intel Core i5-3320M / 3340M Processor, ship one of them 3th Gen Intel Core i7-3520M Processor (4M Cache, up to 3.60 GHz) |
| Network Card | 8 x Intel 82574L 10/100/1000m ethernet controller, 2 x sfp+ optical ports (the sfp model is 10 gigabit 82599es) |
| Graphic | Intel HD Graphics |
| Memory | 1 x SODIMM DDR3/L 1333/1600, Max.8G Ram |
| Storage | 1 x mSATA SSD, 1 x 2.5/3.5 inch SSD/HDD |
| Display | 1 x VGA |
| Expand | Mini PCIE for WiFi/4G (contact us to customize) |
| Intel® AES New Instructions | According to CPU |
I/O Interfaces
| Front Panel | 1 x VGA |
| 1 x Power switch | |
| 1 x ATX power socket | |
| Rear Panel | 1 x Console |
| 2 x USB 3.0 | |
| 8 x LAN | |
| 2 x SFP+ Optical |
Software Support
| System Support | Any FreeBSD based router systems, Linux distros, or Win.OS etc |
| BIOS | AMI EFI BIOS |
| Compatibility | Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions |
General
| Cooling Mode | Smart fan |
| Power Supply | 100w 100v-240v 50hz/60hz |
| Packing List | R13 firewall, rack ears, power cord, warranty card |
Environment
| Operating temperature | -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow |
| ambient temperature | 5~90°C relative humidity, non-condensing |
| Certification | CE, FCC, CCC, ROHS |
