Home > Computer Products > Network Hardware & Parts > Router > Micro Firewall Appliance Intel Core i5 1245U i7 1265U Soft Router 6 x 2.5GbE I225-V B3 Mini PC DDR4 RAM HDMI2.1 DP1.4A OPNsense
Micro Firewall Appliance Intel Core i5 1245U i7 1265U Soft Router 6 x 2.5GbE I225-V B3 Mini PC DDR4 RAM HDMI2.1 DP1.4A OPNsense
US$ 150 - 250
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Partaker
Place of Origin:
China
Model Number:
H15
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days
Related Products
-
12th Gen 2.5G Soft Router Celeron J6412 Quad Core 4 Intel I226-V 2500M LAN 2xDDR4 NVMe 2xRS232 Firewall Mini PC PfSense OPNsenseUS$ 100 - 150MOQ: 1 Piece -
PfSense Firewall i7 1165G7 i5 1135G7 N5105 4x Intel I225 2.5G LAN 2xDDR4 NVMe Industrial Fanless Mini PC 4xUSB HDMI2.0 OPNsenseUS$ 115 - 200MOQ: 1 Piece
-
1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NIUS$ 150 - 300MOQ: 1 Piece
-
1U Rackmount Firewall Appliance Intel i3 2350M i3 3110M i5 3320M i5 3320M With 6 Intel NICs Soft Router PfSense OPNsenseUS$ 145 - 200MOQ: 1 Piece
-
Intel AES-NI J3160 Pfsense Mini Server Nuc Fanless Barebone Firewall Micro Appliance With 4 Gigabit LanUS$ 160 - 200MOQ: 1 Piece
Brand Name
Partaker
Place of Origin
China
Model Number
H15
Type
Wired & Wireless
Certification
CE FCC ROHS
Products Status
Stock
Processors |
Cores & Threads |
L3 Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
Intel Core I5 1245U |
10 cores, 12 threads |
12M |
3.30 GHz |
4.40 GHz |
15W |
Intel Core I7 1265U |
10 cores, 12 threads |
12M |
3.60 GHz |
4.80 GHz |
15W |
Model |
Partaker H15 |
Color |
Metal gray (any color is optional) |
Material |
High-quality all aluminum,surface hard anodized |
Processor |
Intel Core i3 1215U (Six cores Eight threads, turbo frequency up to 4.4 GHz) |
Intel Core i5 1245U (Ten cores Twelve threads, turbo frequency up to 4.4 GHz) | |
Intel Core i7 1265U (Ten cores Twelve threads, turbo frequency up to 4.8 GHz) | |
Memory |
2 DDR4 3200 MHz SODIMM Ram slots, Max 64 GB |
BIOS |
AMI UEFI BIOS |
Chipset |
Intel Iris Xe Graphics |
Display Port |
1*DP,1*HD(Support synchronous/asynchronous dual display, DP interface resolution up to 4096*2160@60Hz) |

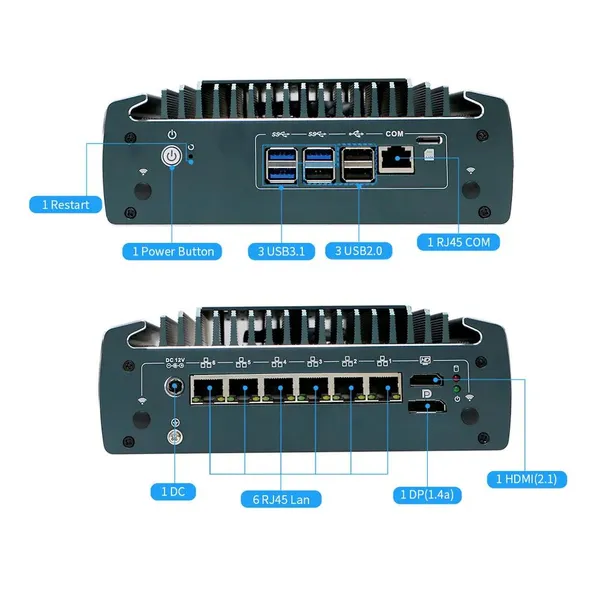

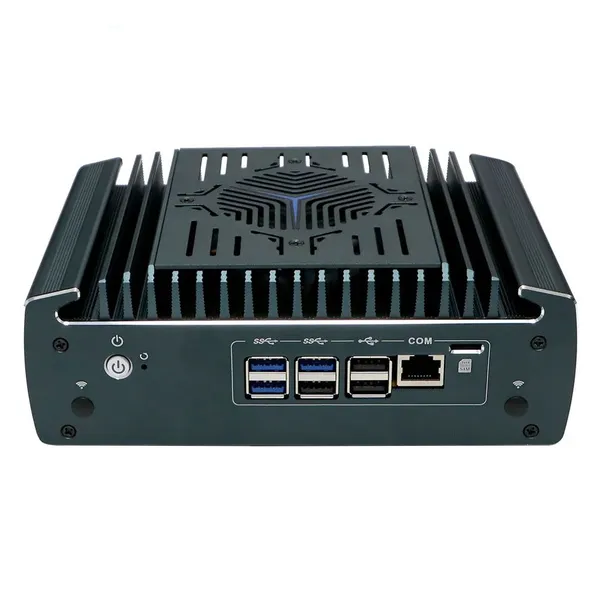

Front I/O |
1 Power Button, 1 Restart , 3 USB3.1, 3 USB2.0, 1 RJ45 COM (support Console function) |

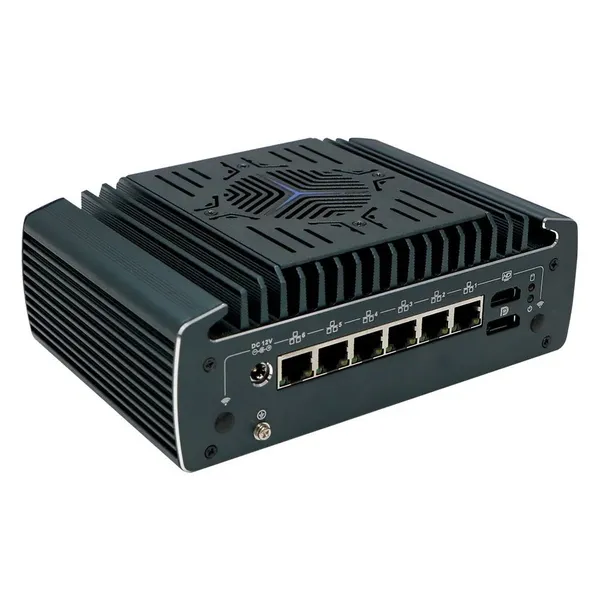

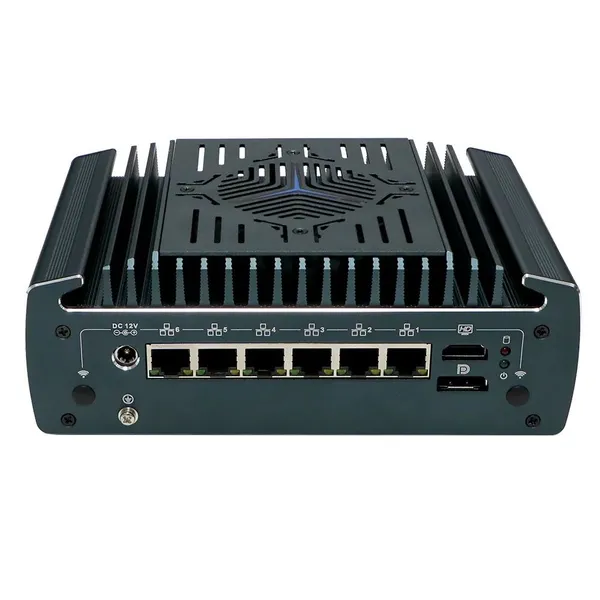

Rear I/O |
1 DC , 6 RJ45 Lan , 1 DP(1.4a) , 1 HD(2.1) |
Expansion Slot |
1 M.2 2280 M-key slot (only supports NVME protocol) |
1 M.2 3052 B-key slot (USB3.0 signal, support 4G/5G), external SIM card slot | |
1 M.2 2230 E-key slot (support WIFI, BT) | |
Network |
6 Intel i225-V 2.5G Ethernet, Lan 1-4 optional 802.3af standard POE |
Storage |
1 M.2 2280 slot, 1 2.5-inch SSD/HDD |
Power Supply |
DC 12V |
Other Function |
Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot, watchdog (level 0-255) |
Work Temp |
0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
Work Humidity |
0% ～ 95% non-condensing |
Dimension |
186 * 126.5 * 66 mm |
Weight |
1.3 kg |
Application |
Firewall,VPN,Network server,Network security,Router etc. |
