Intel AES-NI J3160 Pfsense Mini Server Nuc Fanless Barebone Firewall Micro Appliance With 4 Gigabit Lan

Model

Partaker C4 Fanless 4 lan Mini PC

Processor

Intel Celeron J3160（Quad core quad threading，1.6 GHz，Max turbo 2.24GHz）

RAM

Support 1*DDR3L 1600MHz SODIMM RAM Slot，Max. Support 8GB

Display Chip

Integrated Intel HD Graphics

Display Port

2*HDMI（Support synchronous/asynchronous dual display）

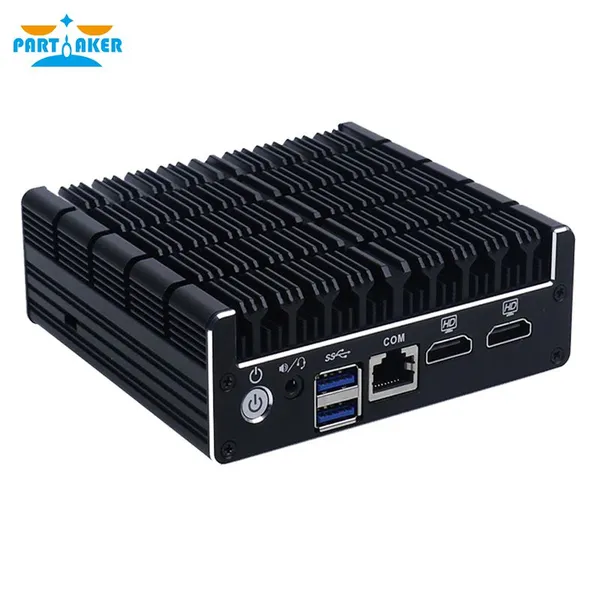

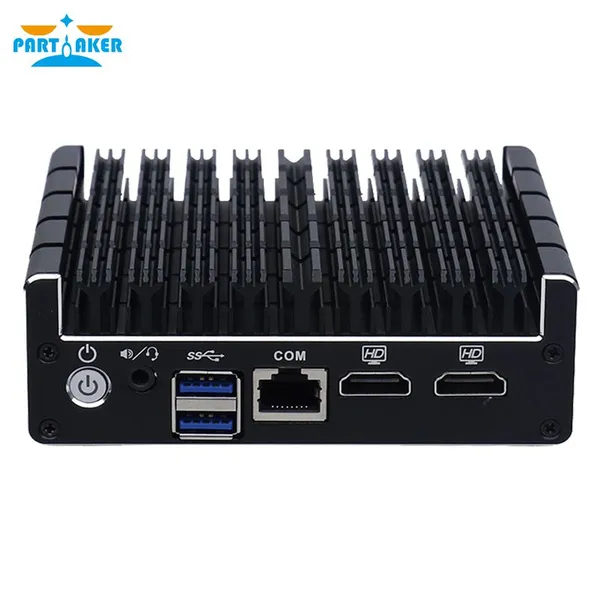

Front I/O

1*Power Switch，1*Audio (Support Mic and Speaker at the same time)，

2*USB3.0，1*RJ45 COM（Support Console Function）2*HDMI

Rear I/O

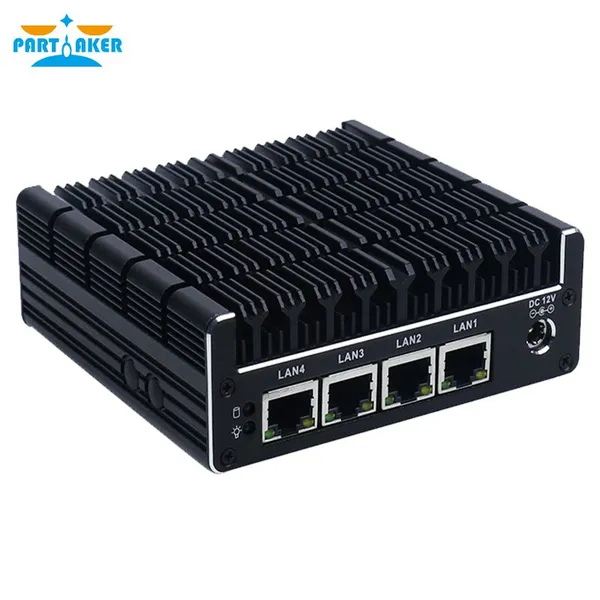

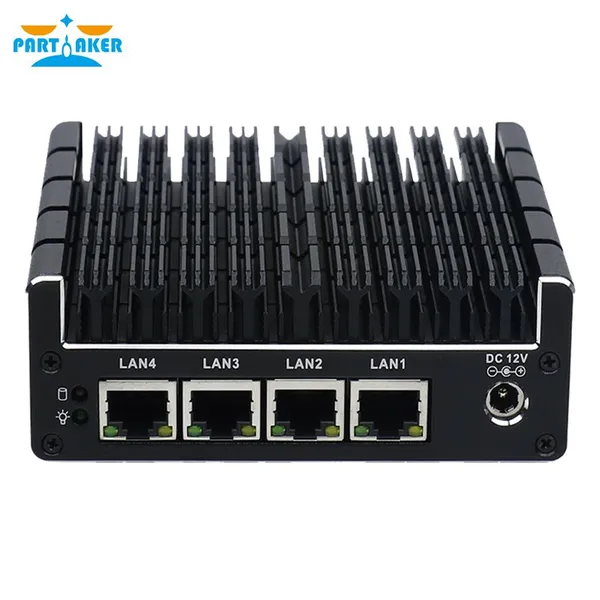

4*RJ45 LAN，1*DC Input

Expansion Slot

Support 1*MINI PCIE Slot（Support USB Channel WIFI）

Support 1*MINI PCIE Slot（Support MSATA）

Network

4*Intel i210-AT 1000M LAN

Storage

1*MSATA Slot

Input Voltage

Support DC 12V Input

Other Function

Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function)

Certificates

CE、 CCC、 FCC Class A、 ROHS

Application

Business Office，HD Video Playback，Home Learning，Router，Network Security etc.

Structure Parameter

Color

Black【Any color can be customized】

Material

High-quality all aluminum，surface anodic oxidation

Dimension

115 * 107.5 * 39mm

Weight

0.5kg

Environmental Parameter

Work Temp

0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow

Work Humidity

5% ～ 95% non-condensing
