Processor parameter for referance only
Processors | Cores & Threads | Cache | Base Frequency | Max Turbo Frequency | Graphics |
Celeron N5105 | 4 cores, 4 threads | 4M | 2.00 GHz | 2.90GHz | Intel UHD Graphics 450MHz-750MHz |
Core I3-1115G4 | 2 cores, 4 threads | 6M | 1.70 GHz | 4.10 GHz | Intel UHD Graphics 1.25 GHz |
Core I5-1135G7 | 4 cores, 8 threads | 8M | 2.40 GHz | 4.20 GHz | Intel Iris Xe Graphics 1.30GHz |
Core i7-1165G7 | 4 cores, 8 threads | 12M | 2.80 GHz | 4.70 GHz | Intel Iris Xe Graphics 1.30GHz |
Product Highlight
-4xIntel i225-V B3 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console.
-2xDDR4 SODIMM non-ecc ram slot, max support 32GB.
-Support two storage: 1xM.2 2280 NVMe/PCIE3.0x2 SSD+1x2.5''SATA SSD/HDD.
-1xHDMI2.0 and 1xDP1.4 support dual 4K@60Hz UHD video display.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell with three-sided ice thorns, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Chassis: Full aluminum
CPU: Intel Celeron Processor N5105 (4M Cache, up to 2.90 GHz)
AES-NI Supported: Yes
Memory: 2 x sodimm ddr4 2400/2666/2933 MHz
HDD/SSD: 1 x m.2 2280 nvme SSD and 1 x 2.5 inch SSD/HDD(Not support SATA interface M.2, PCIe 2X)
Ethernet: 4*Intel I225(10/100/1000/2500M)

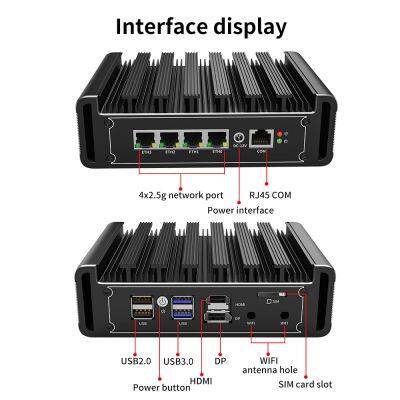

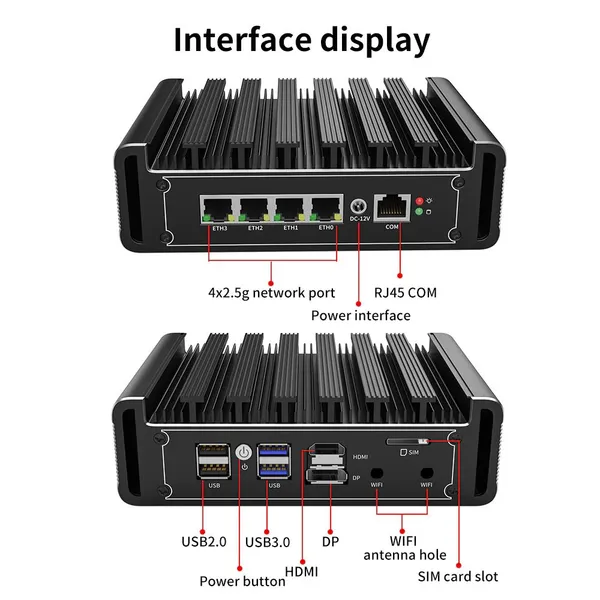

I/O Ports: 4 x LAN, DC_IN, RJ45 COM, 2 x USB2.0, Power ON/OFF, 2 x USB3.0, 1 x HDMI, 1 x DP, SIM Slot, WIFI Holes
Expansion: Support 1*Mini PCIE(WiFi/BT), 1*SIM Slot(4G)
Power: Dc100-240v ac/50-60hz, 12v/4a
Size: 178 x 122 x 55mm
Weight: 1.5kgs
Operating Temperature: 0°c~70°c centigrade (32°f~140°f)
Storage Temperature: -20°c~80°c centigrade (-68°f~176°f)
Relative Humidity: 10%~90% (non-condensing)
TDP: 10W
Function: Supports hardware auto power on (enabled default), network wake-up, system power management, temperature management
Cooling system: Fanless
System Support: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported;
Packing List: Firewall Appliance+ Rack Ear+ Power Cord
COMPATIBILITY: firewalls tested with pfsense, untangle, opnsense and other popular open-source software solutions
Tips: Other OS demand, Do need to leave us message on the order, thank you. 4 LAN, 6 LAN, 8 LAN, 10 Ports, Different CPU, 1U/2U RACK Mount, Desktop Type, all are available in our shop.
CPU: Intel® Jasper Lake Processor Celeron N5105/N5095 (4C/4T, 4M Cache, 2.0GHz up to 2.9GHz), 10W TDP
GPU: Intel UHD Graphics GPU, 450MHz up to 750MHz; Support 4096*2160 @60Hz
RAM: 8GB/2x8GB Crucial DDR4 3200MHz
Storage:M.2 2280 NVMe SSD 128GB/256GB/512GB , support 2.5inch HDD
External port
Power button
USB 3.0 *2
USB 2.0 *2
HDMI 2.0 *1
DP *1
2.5GBps LAN *4
DC in: 12V
Internal port
RAM slot: 2 x SO-DIMM, Max capacity 32GB
SSD slot: 1 x M.2 2280 NVMe (PCIE 3.0 x2)
Wireless slot: 1 x Mini PCIE (Support WIFI/Bluetooth/4G wireless network card)
SATA port *1
Other
Dimension: 13.4*12.4*4.3cm
Power: 12V 3A DC-in
Operating Temp: 0°C to50°C
Storage Temp: -20°C to 60°C
Cooling: Passive
Operating System: Support Windows 10, Windows 11, Linux,
Additional features:Auto Power ON
Accessories
1 * Power Adapter 12V 3A, (US, EU, UK, AU Plug available)
1 * sata cable
