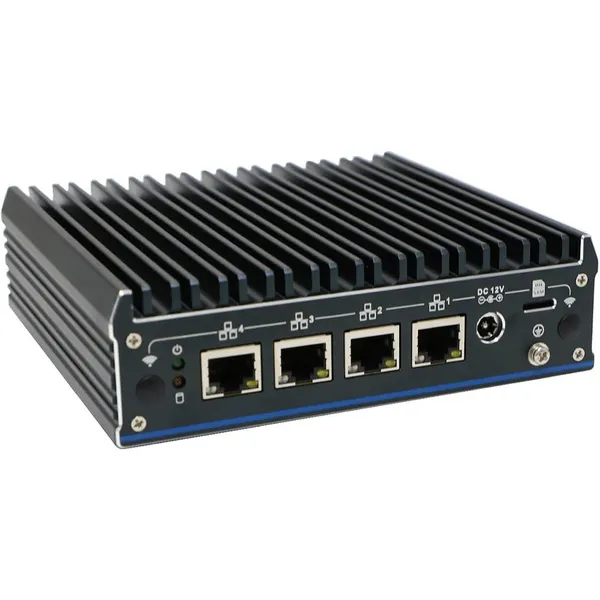

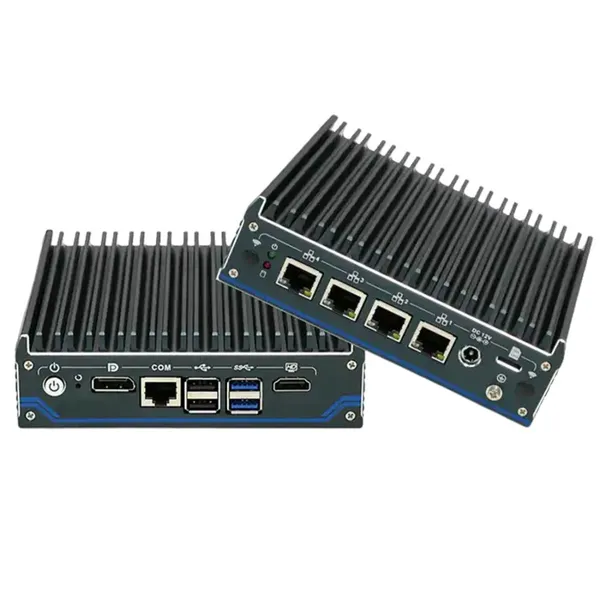

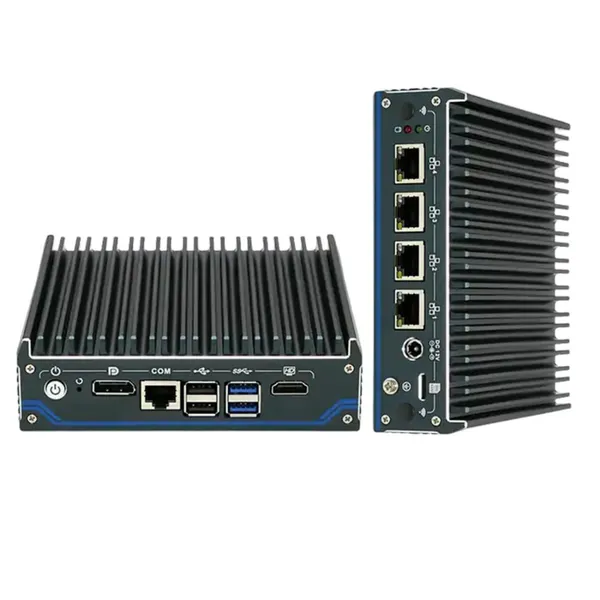

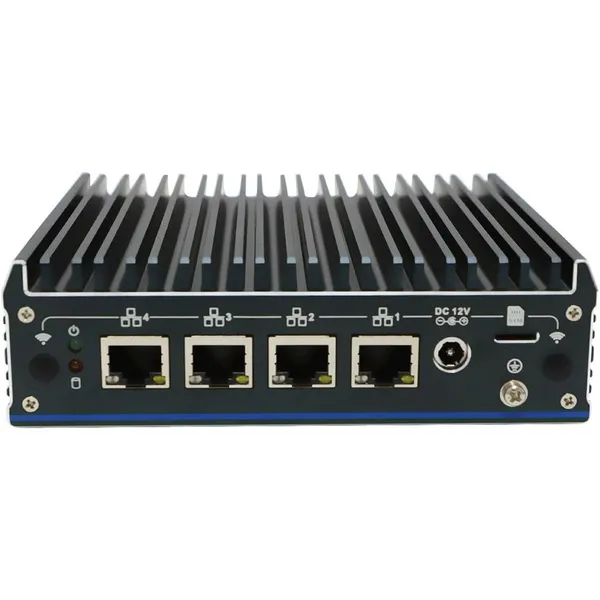

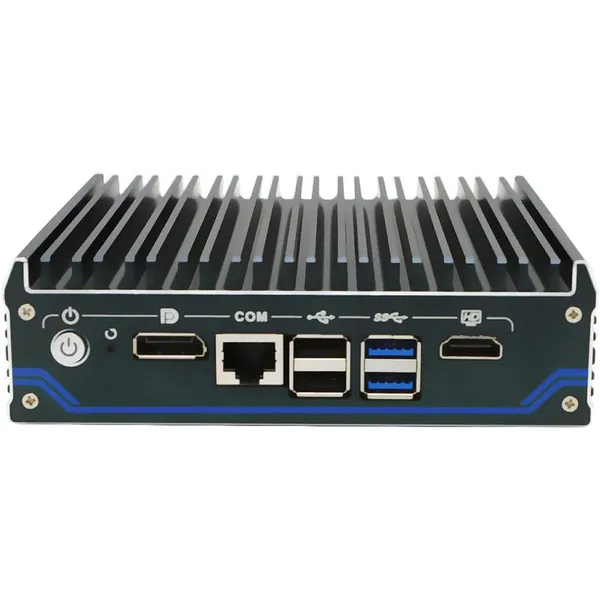

Help CenterPartaker Fanless Soft Router Intel J6412 Mini PC Micro Firewall 4 x Intel I225-V 2.5G LAN HDMI DP OPNsense Firewall Appliance
Related Products
-
Micro Firewall Appliance Intel Core i5 1245U i7 1265U Soft Router 6 x 2.5GbE I225-V B3 Mini PC DDR4 RAM HDMI2.1 DP1.4A OPNsenseUS$ 150 - 250MOQ: 1 Piece -
12th Gen 2.5G Soft Router Celeron J6412 Quad Core 4 Intel I226-V 2500M LAN 2xDDR4 NVMe 2xRS232 Firewall Mini PC PfSense OPNsenseUS$ 100 - 150MOQ: 1 Piece
-
PfSense Firewall i7 1165G7 i5 1135G7 N5105 4x Intel I225 2.5G LAN 2xDDR4 NVMe Industrial Fanless Mini PC 4xUSB HDMI2.0 OPNsenseUS$ 115 - 200MOQ: 1 Piece
-
1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NIUS$ 150 - 300MOQ: 1 Piece
-
1U Rackmount Firewall Appliance Intel i3 2350M i3 3110M i5 3320M i5 3320M With 6 Intel NICs Soft Router PfSense OPNsenseUS$ 145 - 200MOQ: 1 Piece
Specification | |||
Model |
Partaker C10 |
||
Case Color |
Metal gray (any color is optional) |
||
Material |
High quality all aluminum alloy mini itx case |
||
CPU |
Intel Celeron J6412（quad core four threads,2.0GHz,Max to 2.6GHz） |
||
BIOS |
AMI EFI BIOS |
||
RAM |
1 x DDR4 3200MHz SODIMM, Max 32 GB |
||
Storage |
Support 1*M.2 2280, 1*2.5'' SSD/HDD |
||
Display Chip |
Intel(R) UHD Graphics |
||
Display Interface |
1*DP, 1*HD |
||
I/O |
2*USB2.0,2*USB3.1 |
||
1*HD, 1*DP |
|||
2*2.5G Lans |
|||
1*RJ45 COM(Support Console function) |
|||
1*DC |
|||
1*SIM card slot |
|||
1*Power Switch,1*Restart button |
|||
1*Audio ( Support Mic and Speaker at the same time) |
|||
Network Card |
4*Intel i225-V 2.5G LAN |
||
Expansion |
1*M.2 2280 M-key slot（ support SATA protocol） 1*M.2 2230 E-key slot（support WIFI、BT） 1*mini PCIE slot（Support 4GM modem,outside SIM slot,support USB signal WiFi/Bluetooth） |
||
Other Function |
Support TPM2.0 security encryption, WDT, PXE Boot, Wake on LAN, Power on, Timing boot |
||
Power Supply |
DC-IN 12V |
||
Operating System |
For Windows 10/11,Pfsense, Linux OS |
||
WorkingTemperature |
0℃ ～ +40℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
||
WorkingHumidity |
0% - 95% relative humidity, Non-condensing |
||
Size |
144 * 136.7 * 42 mm |
||
Application |
Applied in Firewall, VPN, network server, network security, router etc . |
||
