1U Rackmount Firewall Appliance 12th Intel Core I9 12900 I7 12700 I5 12400 I3 12100 6 LAN Soft Router PfSense OPNsense Mikrotik

Inctel Technology Co.,Ltd
1U Rackmount Firewall Appliance 12th Intel Core I9 12900 I7 12700 I5 12400 I3 12100 6 LAN Soft Router PfSense OPNsense Mikrotik thumbnail-1
1U Rackmount Firewall Appliance 12th Intel Core I9 12900 I7 12700 I5 12400 I3 12100 6 LAN Soft Router PfSense OPNsense Mikrotik thumbnail-2
1U Rackmount Firewall Appliance 12th Intel Core I9 12900 I7 12700 I5 12400 I3 12100 6 LAN Soft Router PfSense OPNsense Mikrotik thumbnail-3
1U Rackmount Firewall Appliance 12th Intel Core I9 12900 I7 12700 I5 12400 I3 12100 6 LAN Soft Router PfSense OPNsense Mikrotik thumbnail-4
1U Rackmount Firewall Appliance 12th Intel Core I9 12900 I7 12700 I5 12400 I3 12100 6 LAN Soft Router PfSense OPNsense Mikrotik photo-1
1U Rackmount Firewall Appliance 12th Intel Core I9 12900 I7 12700 I5 12400 I3 12100 6 LAN Soft Router PfSense OPNsense Mikrotik photo-2
1U Rackmount Firewall Appliance 12th Intel Core I9 12900 I7 12700 I5 12400 I3 12100 6 LAN Soft Router PfSense OPNsense Mikrotik photo-3
1U Rackmount Firewall Appliance 12th Intel Core I9 12900 I7 12700 I5 12400 I3 12100 6 LAN Soft Router PfSense OPNsense Mikrotik photo-4
US$ 150 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Partaker
Place of Origin:
China
Model Number:
S16
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen zhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Partaker
Place of Origin China
Model Number S16
Type Other, Mini Desktop
Processor Brand Intel
Processor Main Frequency Depend on CPU
Graphics Card Type Integrated Card
Hard Drive Capacity ≤ 40GB
Memory Capacity ≤ 128MB

Overview



Partaker S16 12th/13th Gen Intel LGA1700 CPU-based firewall is a powerful network security solution. With support for Intel Core i3, i5, i7, and i9 processors and up to 64GB of RAM, it delivers efficient processing and ample memory capacity. Equipped with the Intel I226 2.5G adaptive network card interface, it provides fast and reliable connectivity. It also offers power management features and can be utilized as a software router, making it a versatile choice for robust network security and routing applications.



Software routers are widely used in home networks, small offices, virtualized environments, and IoT applications. They provide flexible and customizable network management and security features, including traffic control, VPN connectivity, and firewall capabilities. By replacing traditional hardware routers, software routers offer enhanced functionality and allow for easy scalability and configuration to meet specific networking needs.



Mechanical

MaterialIron, Aluminum panel
ColourGray
Size440 x275 x 45(mm)(without mounting ear)
Weight7.5Kgs
Insallation MethodRack Mounting/Wall Mounting/Desktop Mounting



Motherboard

CPU

12th/13th I3/I5/I7/I9 Intel® LGA1700 CPU

Intel Core I3 12100 Processor, 12M Cache, up to 4.30 GHz

Intel Core I5 12400 Processor, 18M Cache, up to 4.40 GHz

Intel Core I7 12700 Processor, 25M Cache, up to 4.90 GHz

Intel Core I9 12900 Processor, 30M Cache, up to 5.10 GHz

Network CardIntel 6 x I226 2.5G adaptive network card interface (optional with POE)
GraphicDepend on CPUs
Memory2 x DDR4 SODIMM, up to 64G
Storage

1 x M.2 NVME,  4x2280, 4xSATA(For motherboard support)

1 x M.2 NVME, 1 x 2.5 inch SSD/HDD (For Chassis support)

Display 1 x VGA, 1 x HDMI (Optional)
ExpandSupport 1 PCIE16X+ 1 PCIE4X (FPC) channel expansion card slot, 1xM.2 for 5G, 1xMini Pcie for 4G, 1xM.2 for WIFI module
OthersSupport Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog



I/O Interfaces

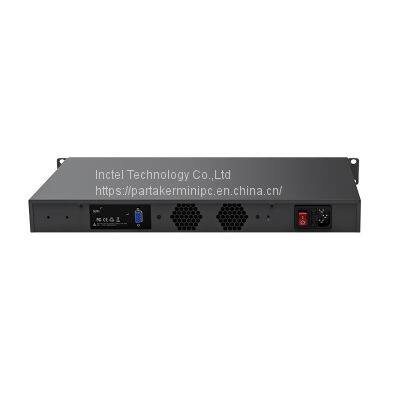

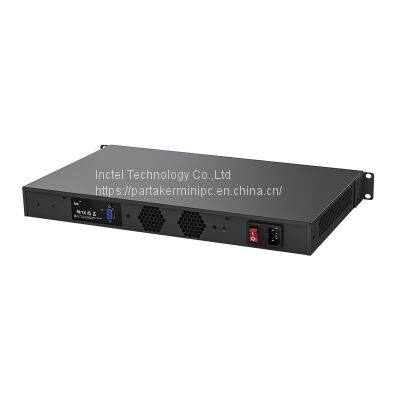

Front Panel1 x VGA
2 x Cooling fan
1 x Switch
1 x AC socket

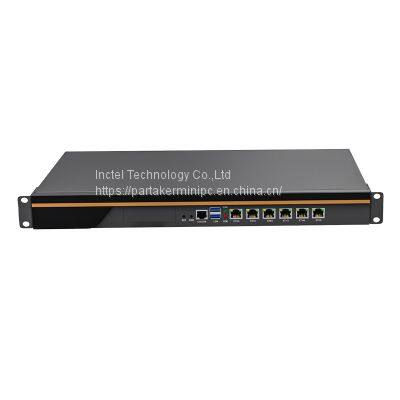

Rear Panel1 x Console
2 x 3.0
6 x LAN



Software Support

System SupportWindows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOSAMI 128M BIOS, ACPI supported



General

Cooling ModeWith Fan
Power Supply

Industrial grade power supply Taiwan MEAN WELL LRS-150-24 Input: 100-240V~1.0A Output: 24V6.25A

Packing ListS16 firewall, power cord, warranty card



Environment

Operating temperature-0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature

5~90°C relative humidity, non-condensing

CertificationCE, FCC, CCC, ROHS
