1U 19 Inch Rack Mount Firewall Appliance B75 Xeon E3 1225V2 I7 3770 i5 3470 i3 3220 With 6 Ethernet 2 SFP PfSense OPNsense VPN

Inctel Technology Co.,Ltd
1U 19 Inch Rack Mount Firewall Appliance B75 Xeon E3 1225V2 I7 3770 i5 3470 i3 3220 With 6 Ethernet 2 SFP PfSense OPNsense VPN thumbnail-1
1U 19 Inch Rack Mount Firewall Appliance B75 Xeon E3 1225V2 I7 3770 i5 3470 i3 3220 With 6 Ethernet 2 SFP PfSense OPNsense VPN thumbnail-2
1U 19 Inch Rack Mount Firewall Appliance B75 Xeon E3 1225V2 I7 3770 i5 3470 i3 3220 With 6 Ethernet 2 SFP PfSense OPNsense VPN thumbnail-3
1U 19 Inch Rack Mount Firewall Appliance B75 Xeon E3 1225V2 I7 3770 i5 3470 i3 3220 With 6 Ethernet 2 SFP PfSense OPNsense VPN thumbnail-4
1U 19 Inch Rack Mount Firewall Appliance B75 Xeon E3 1225V2 I7 3770 i5 3470 i3 3220 With 6 Ethernet 2 SFP PfSense OPNsense VPN photo-1
1U 19 Inch Rack Mount Firewall Appliance B75 Xeon E3 1225V2 I7 3770 i5 3470 i3 3220 With 6 Ethernet 2 SFP PfSense OPNsense VPN photo-2
1U 19 Inch Rack Mount Firewall Appliance B75 Xeon E3 1225V2 I7 3770 i5 3470 i3 3220 With 6 Ethernet 2 SFP PfSense OPNsense VPN photo-3
1U 19 Inch Rack Mount Firewall Appliance B75 Xeon E3 1225V2 I7 3770 i5 3470 i3 3220 With 6 Ethernet 2 SFP PfSense OPNsense VPN photo-4
US$ 150 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Partaker
Place of Origin:
China
Model Number:
S06
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen zhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Partaker
Place of Origin China
Model Number S06
Type Other, Mini Desktop
Processor Brand Intel
Processor Main Frequency Depend on CPU
Graphics Card Type Integrated Card
Hard Drive Capacity ≤ 40GB
Memory Capacity ≤ 128MB

Overview

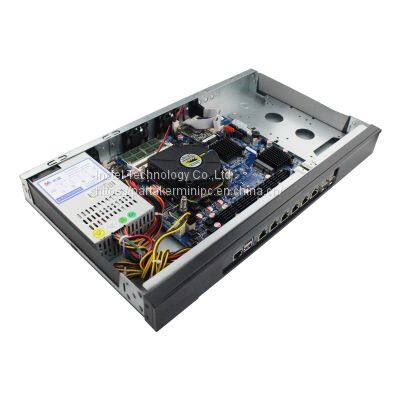

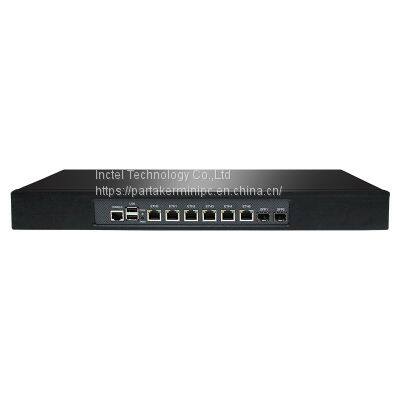

The S06 1U-B75 is a compact 1U soft router designed with six Gigabit Ethernet ports and two Intel I350 Gigabit optical ports. It supports LGA1155 architecture and is compatible with 3rd generation Intel Celeron, Pentium, Core i3, i5, and i7 processors, offering a range of processing power options. With two DDR3L 1600 MHz SODIMM memory slots, it supports a maximum of 16GB RAM for efficient multitasking. The router provides reliable and high-speed network connectivity through its Intel 82583V Gigabit Ethernet ports and Intel I350 Gigabit optical ports. With a compact size of 440x255x45mm, it is suitable for space-constrained environments.



In summary, the 1U-B75 soft router offers a compact form factor, versatile network connectivity, and support for various processors and memory configurations, making it an ideal choice for users looking for a powerful and space-efficient router solution.





Mechanical

MaterialIron, Aluminum panel
ColourGray
Size440 x255 x 45(mm)(without mounting ear)
Weight6.5Kgs
Insallation MethodRack Mounting/Wall Mounting/Desktop Mounting



Motherboard

CPU

B75 supports 3th Intel®celeron/Pentium Core™ i3/i5/i7 processor with LGA1155 architecture

Intel Core i3 3220, i5 3470, i7 3770, Xeon E3 1225V2 etc

Network Card6 x Intel 82583V Gigabit network interfaces, 2 x Intel I350 Gigabit optical ports
GraphicDepend on CPUs
MemorySupport 2 x DDR3L 1600 MHz SODIMM memory slots, up to 16GB
Storage

1 x mSATA SSD, 1 x 2.5/3.5 inch SSD/HDD

Display 1 x VGA
Expand1× Mini-PCIE slot, (Optional WIFI/Bluetooth/4G )



I/O Interfaces

Front Panel1 x VGA
2 x Cooling fan
1 x Switch
1 x AC socket
Rear Panel1 x RJ45 serial port (supports Console function)
2 x USB2.0
2 x Intel I350 Gigabit optical ports
6 x LAN



Software Support

System SupportWindows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOSAMI EFI BIOS



General

Cooling ModeWith Fan
Power Supply

110~240V/50~60Hz AC input 200W (optional Great Wall 550W redundant power supply)

Packing ListS06 firewall, power cord, warranty card



Environment

Operating temperature-0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature

5~90°C relative humidity, non-condensing

CertificationCE, FCC, CCC, ROHS
