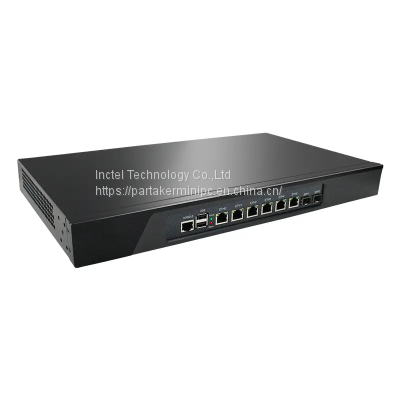

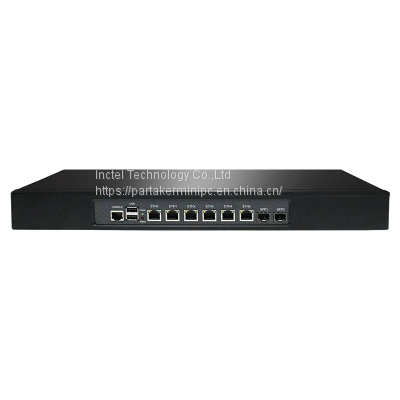

1U 19 Inch Rack Mount Firewall Appliance B85 Z87 Intel Core I7 4770 i5 4460 i3 4160 With 6 Ethernet 2 X10GB SFP PfSense OPNsense
Overview
The S15 19-inch 1U firewall with 6 LAN ports and 2x10G SFP is a compact and powerful networking device designed for efficient network security. It features the B85/Z87 motherboard and is equipped with Intel 4th generation CPUs, providing reliable processing power. With its versatile port configuration, including high-speed fiber connectivity, this firewall offers flexibility in network setups.
Ideal for small to medium-sized businesses, branch offices, and data centers, this 1U firewall delivers advanced threat protection, secure data transmission, and efficient network traffic management. Its compact size and rack-mountable design make it suitable for space-constrained environments. With the ability to handle diverse network security tasks, this firewall ensures reliable and scalable network operations.
In summary, the 19-inch 1U firewall with 6 LAN ports and 2x10G SFP, featuring the B85/Z87 motherboard and Intel 4th generation CPUs, is a versatile and compact network security solution. It provides robust protection and efficient performance, making it an ideal choice for various networking scenarios.
Mechanical
| Material | Iron, Aluminum panel |
| Colour | Gray |
| Size | 440 x255 x 45(mm)(without mounting ear) |
| Weight | 6.5Kgs |
| Insallation Method | Rack Mounting/Wall Mounting/Desktop Mounting |
Motherboard
| CPU | B85/Z87 supports 4th Intel®celeron/Pentium Core™ i3/i5/i7 processor with LGA1155 architecture Intel Core i3 4160, i5 4460, i7 4770 etc |
| Network Card | 6 x Intel 82583V/82574L Gigabit network interfaces, 2 x 10G Intel 82599Es optical ports |
| Graphic | Depend on CPUs |
| Memory | Support 2 x DDR3L 1600 MHz SODIMM memory slots, up to 16GB |
| Storage | 1 x mSATA SSD, 1 x 2.5/3.5 inch SSD/HDD |
| Display | 1 x VGA |
| Expand | 1× Mini-PCIE slot, (Optional WIFI/Bluetooth/4G ) |
I/O Interfaces
| Front Panel | 1 x VGA |
| 2 x Cooling fan | |
| 1 x Switch | |
| 1 x AC socket | |
| Rear Panel | 1 x RJ45 serial port (supports Console function) |
| 2 x USB2.0 | |
| 2 x Intel 82599ES Gigabit optical ports | |
| 6 x LAN |
Software Support
| System Support | Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux |
| BIOS | AMI EFI BIOS |
General
| Cooling Mode | With Fan |
| Power Supply | 110~240V/50~60Hz AC input 200W (optional Great Wall 550W redundant power supply) |
| Packing List | S15 firewall, power cord, warranty card |
Environment
| Operating temperature | -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow |
| ambient temperature | 5~90°C relative humidity, non-condensing |
| Certification | CE, FCC, CCC, ROHS |
