1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NI

Inctel Technology Co.,Ltd
1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NI thumbnail-1
1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NI thumbnail-2
1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NI thumbnail-3
1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NI thumbnail-4
1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NI thumbnail-5
1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NI photo-1
1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NI photo-2
1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NI photo-3
1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NI photo-4
1U Rackmount Intel N5105 J4125 Quad Core PC Firewall Server With 6 Intel I225 I226 NICs Soft Router for PfSense OPNsense AES-NI photo-5
US$ 150 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Partaker
Place of Origin:
China
Model Number:
S03
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Partaker
Place of Origin China
Model Number S03
Type Wired
Certification CE FCC ROHS
Products Status Stock


Processor parameter for referance only


1. Jasper Lake Intel Celeron N5105 4 cores 4 threads 2.00GHz up to 2.90GHz 4MB cache TDP 10W Intel UHD Graphics


2. Gemini Lake Refresh Intel Celeron J4125 4 cores 4 threads 2.00GHz up to 2.70GHz 4MB cache TDP 10W Intel UHD Graphics 600


3. Skylake Intel Pentium 4405U 2 cores 4 threads 2.10GHz 2MB cache TDP 15W Intel HD Graphics 510





Customization Services



1. LOGO customization - Laser Print free.

* MOQ: No MOQ Limitation
* White and silver available


2.LOGO customization - Silk screen
* MOQ: Depends on the unit value, please contact us for more details
* The exact cost depends on the complexity of the logo


3.LOGO customization - BIOS LOGO
* MOQ: 20 units
* Free

4. System customization - BIOS set up
* MOQ: 50 units

* Free remote testing

5. Package customization
* MOQ: 100 units
* Free



6. Motherboards customization
* Please contact us for more details



Product Highlight
- 6*Intel i225 i226 2.5G RJ45 Ethernet Controllers, 2*USB3.0.
- 2*DDR4 SO-DIMM 2133/2400 MHz RAM slots, maximum support 16GB.
- 1*mSATA, 1*2.5 inch SSD/HDD
- Support 1 x VGA
- 2*Mini PCIE Extension slots, support WiFi and 4G module at the same time.
- Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN


Be Careful:If you are not professional IT engineer with pc installation, it's better to buy device with RAM and Hard disk. Because maybe it will damage the memory or the entire machine if any mishandle.



Brand
Partaker S03
CPU
Onboard Intel ® Core ™ N5105, FCBGA1338, 4 core 4 threads, 2.00GHz Base Frequency, 4MB Cache cache, TDP15W
Memory
2 x DDR4 260PIN SO-DIMM slot (memory support voltage 1.2V)
Memory type DDR4, with a maximum of 16GB support

Storage

1*2.5 inch SSD/HDD
1*M-SATA, Solid-state disk interface
Extended Bus
2 MINI PCIE interfaces (MPCIE2 only supports USB signal 4G module)
Network Cards
6 x Onboard Intel i226 network card chip

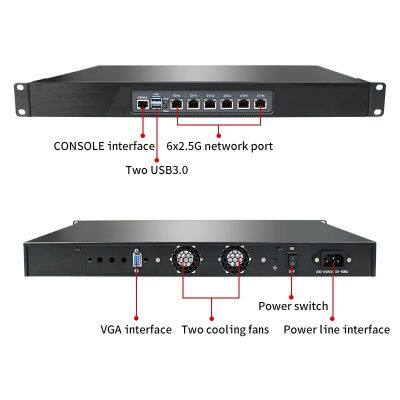

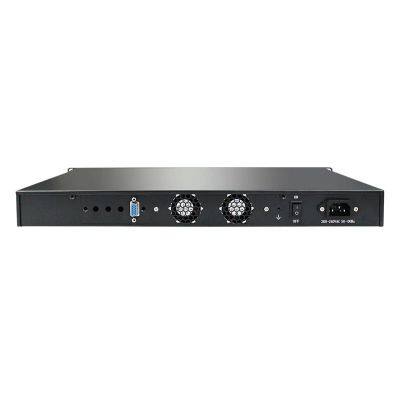

Backplane I/O
1*DC_IN power supply interface
1*LED lamp
1*double-layer USB3.0 interface
6*LAN interface
1*reset button
1*switch button
 1*RJ45 COM port



Onboard I/O
 1*VGA interface
1*JHDMI interface
1*KM mouse / keyboard interface
1*DC power supply 4Pin interface
2*USB2.0 pin (external 4*USB2.0 interface)
1*COM interface (9pin) RS232
 1*CPU fan supply outlet
1*system fan supply socket
1*SIM card slot

Power Supply
DC _IN 12V
Working Temperature
-20~55 ℃
Dimension of motherboard
180mm x 220mm
Ambient Temperature
5~90℃ Relative humidity, no condensation



Product Tags: 1u firewall , 1u rackmount firewall , firewall server
