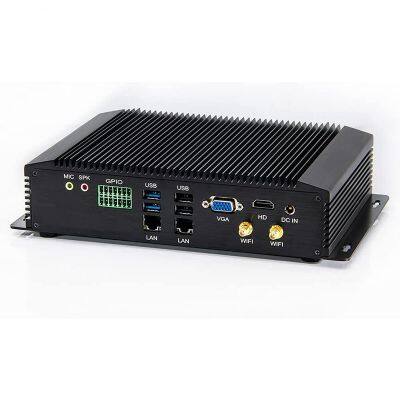

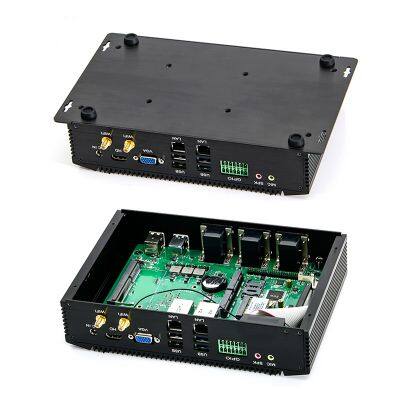

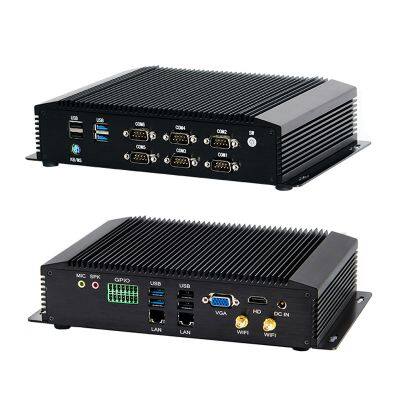

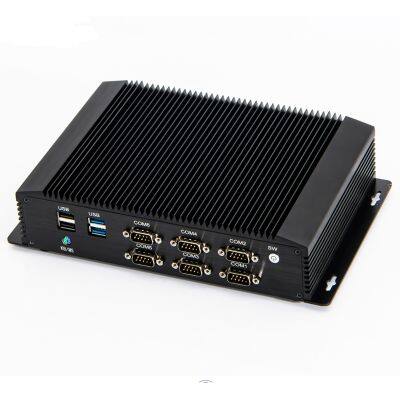

Industrial Mini PC Intel Core i7 8550U i5 8250U i3 7167U i5 7267U With 6COM RS232 RS422 RS485 HDMI VGA GPIO PS2 Ports

Processor has 4 options suitable for the same motherboard:

1. Skylake 14nm CPU Intel Core i3 6006U 2 cores 4 threads 2.0Ghz 3M cache TDP 15W Intel HD 520.

2. Kaby Lake 14nm CPU Intel Core i5 7200U 2 cores 4 threads 2.5Ghz Max to 3.0Ghz 3M cache TDP 15W Intel HD 620.

3. Kaby Lake R 14nm CPU Intel Core i5 8250U 4 cores 8 threads 1.6Ghz Max to 3.4Ghz 6M cache TDP 15W Intel UHD 620.

4. Kaby Lake R 14nm CPU Intel Core i7 8550U 4 cores 8 threads 1.8Ghz Max to 4.0Ghz 8M cache TDP 15W Intel UHD 620.

Model Number: Partaker I27
Material: Aluminum
Type: IPC type with mounting ears
CPU: Intel Core I7 8550U / 8565U, ship one of them
Memory: 1 x SO-DIMM DDR4-2400, max. 32GB
Storage: 1 x mSata SSD, 1 x M.2 2280 SATA/NVME SSD, 1 x 2.5 inch SATA SSD/HDD
Audio: ALC662
Network: 2 x intel i213
WiFi: 802.11ac 2.4 and 5Ghz (with SIM slot, 4G could be customized, contact us)
Bluetooth: 4.0/4.2
I/0 Port: 4 x usb3.0, 4 x usb2.0, 2 x lan, vga, hdmi, gpio, 6 x com, dc, sw, ps/2
Power: DC100-240V AC/50-60Hz, DC 12V5A
Operating Temperature: -10°C~60°C (32°F~140°F)
Storage Temperature: -20°C~80°C (-68°F~176°F)
Relative Humidity: 10%~90% (non-condensing)
Weight: 1.25kgs
Measurement: 230 x 175 x 50mm
Consumption: 15W
Cooling system: Fanless
Function: 1.Green ultra-low power consumption, 7 x 24 hours
2.6 x COM supports COM1 COM2 for RS232 RS422 RS485 soft switching under BIOS
3.8-bit GPIO for industrial equipment needs
4.Watchdog for 256-level
5.Support 4G network module with sim slot onboard, wake on Lan, automatic boot after power failure, resume by alarm, PXE lan boot function
Packing List: I27 industrial pc, power supply, power cord, WiFi antennas, warranty card
System Support: Windows 10/11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
