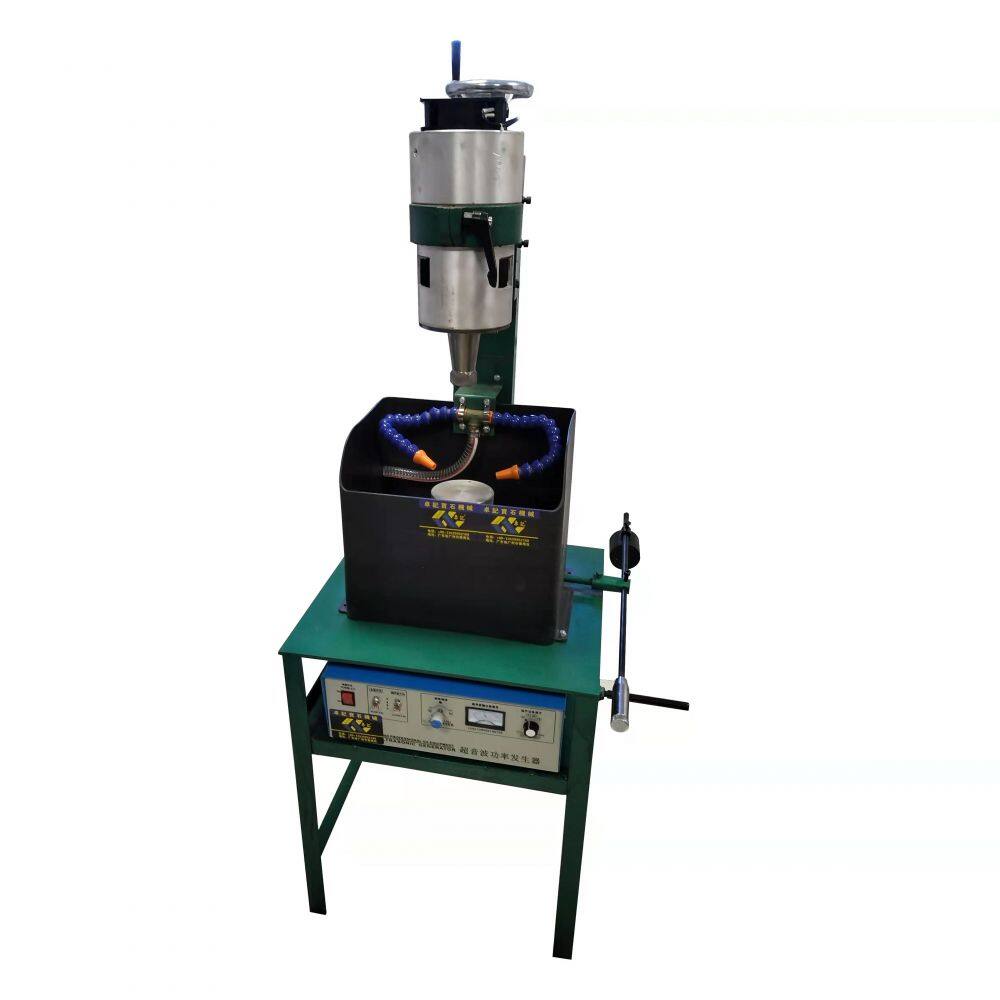

Multi-needle ultrasonic drilling and drilling machine Number 711701001 Product Model XX-1200
Ultrasonic drilling machine This is a new type of drilling equipment developed in the last few years, which converts the 15KHz signal generated by the ultrasonic generator into high-frequency mechanical vibration, which is amplified by the tool head (commonly known as the needle) and transmitted to the working head (steel needle) welded on the end of the tool head. Drive the abrasive suspension between the working head and the workpiece (continuous ring of steel sand and water) high-speed impact, friction and the cavitation effect of the abrasive suspension and other comprehensive effects, resulting in the workpiece quickly in accordance with the shape of the mold line, emerge forming or penetrating into the hole, so as to achieve the whole process of ultrasonic engraving and drilling. Auxiliary systems include fuselage abrasive and coolant supply systems
Compared with traditional products, it has been greatly improved and improved in many aspects, such as advanced ultrasonic technology application, production process, energy saving and high efficiency, stability and reliability. In addition to the best-selling products in China, but also exported to the Middle East, Myanmar, India, South Africa, Pakistan and other countries and regions.
After years of product sales and improvement, the overall quality and stability of the product is leading in the same industry and has become the object of imitation. With perfect after-sales service, the product has gained a good reputation among the vast number of users. Can use the equipment for processing production.
Features:
AC220V power supply, stable operation
Using fuzzy frequency modulation, the whole machine automatically adjusts the frequency according to the actual processing power, easy operation, no manual adjustment
Overload, overcurrent, overvoltage, automatic protection
High power, high efficiency and energy saving, no radiation, no pollution
High positioning accuracy
Suitable for processing: jade, crystal, agate, glass, cemented carbide and all kinds of semi-precious stones and metals with high hardness

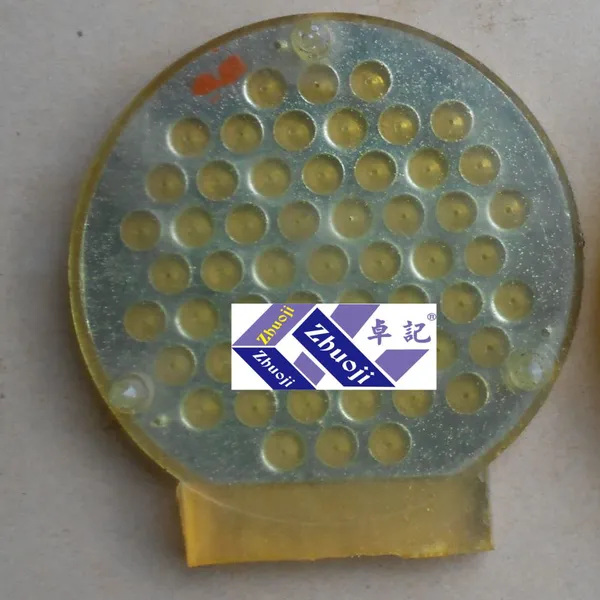

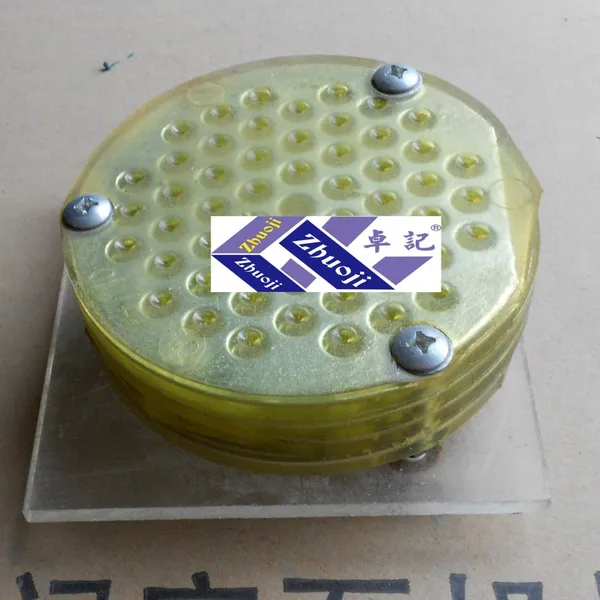

Common tools: tin strip, zinc powder, hydrochloric acid, tool head needle burning table needle burning die upper die lower die hollow needle plate hand, pump, punching sand
Technical parameters:
Input voltage :AC220V
Control box output power :1200W
Transducer assembly output power :800W
Size :540mm×500mm×1500mm
Chip diameter: 50mm
Hole diameter :0.8-1.8mm
Use: Gem bead punching
Weight :50kg
