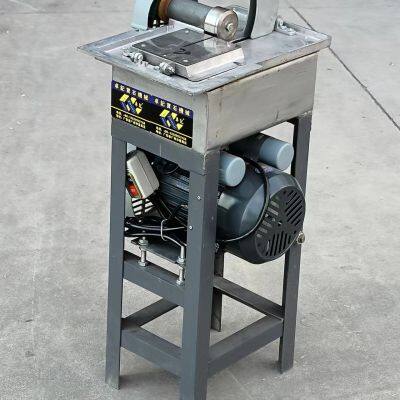

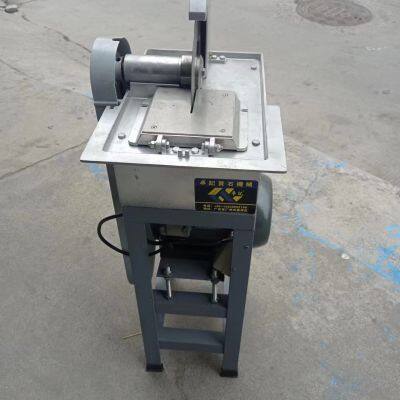

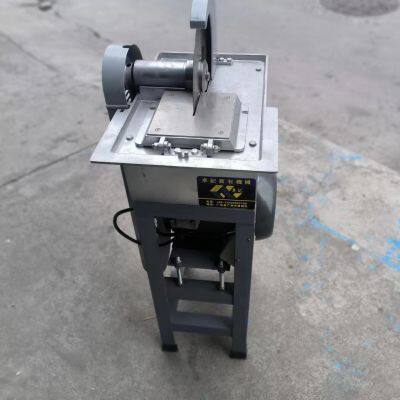

Help CenterJade Processing Equipment, 750W Stone Sawing Machine, Hand-controlled Disc Cutting, With 8-inch Diameter Diamond Saw Blade
Related Products
-
Crystal Processing Machine, 4kw 10 Inch Automatic Rotary Slicer. It is Capable of Slicing Block Materials With a Size Range of 15cm or Less.US$ 1600 - 1650MOQ: 1 Bag -
Stone Processing Machine, 3KW24 Inch Automatic Slicer, Suitable for Cutting Stone Within 40cm Into Slices Within 23cm Can be Cut off at Once.US$ 1350 - 1380MOQ: 1 Bag
-
Gemstone Diamond Tools, 8 Inch Diamond Saw Blade Toothless Cutting Blade - Diameter 200mm 1.0 Thickness 25 HolesUS$ 8.6 - 8.8MOQ: 1 Bag
-
Glass Processing Equipment,370W 16 Inch Glass Polishing Machine,PU Rubber Grinding and Polishing,AutomaticUS$ 235 - 250MOQ: 1 Bag
-
Agate Processing Machine,150W 10 Inch Polishing Machine,PU Rubber Grinding and Polishing,Automatic VibratingUS$ 98 - 100MOQ: 1 Bag
Emerald agate gem cutting and slicing machine - Zhuoji slicing machine 8 inches
No. 810211003 model N2100D
Features: all aluminum panel, stable operation, fine incision, low noise, fine workmanship, powered by high-quality asynchronous motor. High horsepower and long service life This machine is widely used for high-grade gem stones.
Sawing operation mode
Put the raw materials on the cutting machine and use the saw blade to gently cut a small gap along the cleavage or crack direction, so that most of the raw materials will automatically crack. If there is no crack, put the raw material on the edge of the workbench (or desktop) and knock it gently, which will generally crack.
Structure and main parts of the cutting machine there are two kinds of cutting machines commonly used at present. The cutting machine is mainly used to divide large pieces of raw stone, Its structure is compared with that of the main components of the cylinder sheet steel driving shaft and bearing cooling device support and feeding device splash guard. The power source is the motor, which is generally used for the triangle belt and driving shaft. One end is connected to the driving shaft, and the other end is used for loading. The saw blade is fixed by the dust disc. The block cutter is used for cutting medium-sized raw stone into pieces, strips and other small woolen structures and stone cutting
Auxiliary materials: small blade ø 110mm-200mm thick, 0.3-1.0 cut stones within 6cm in one cut, finger guard, dust cover
Technical parameters:
Input voltage: AC220V
Motor power: 0.75kw
Spindle speed: 3320r/min
Maximum loaded cutting blade size: 8 inches (200mm)
Overall dimension: 400 mm long × 350mm wide × Height 850mm
Guangzhou Panyu Zhuoji gem Machinery Co., Ltd., founded in 2003, is a gem machinery supplier integrating R & D, production and sales. The company has introduced a large number of professional production tools and advanced processes from home and abroad. After more than 10 years of time and careful design and manufacturing, it has now developed into an enterprise with a mature production, processing, sales and after-sales service system.
The continuous improvement of product quality has made our products highly praised by the industry. The products are sold all over the country, Europe, America, Southeast Asia and other countries and regions. At the same time, it has become an important supplier of many gem processing bases, and is deeply recognized by users at home and abroad.
Welcome customers to visit and talk
Business scope:
Jewelry and gem processing equipment series
1. Automatic processing equipment for gem cutting / cutting sheet
2. Automatic CNC processing equipment / tools for colored gemstones.
3. Automatic CNC processing equipment / tools for gem beads
4. Jade jade bracelet processing equipment / tools
5. Special shaped and heteromorphic processing equipment / tools
6. Gem glue injection and glue filling optimization processing equipment / tools
7. Vibrating barrel polishing processing equipment / abrasive
8. Drilling equipment / tools
