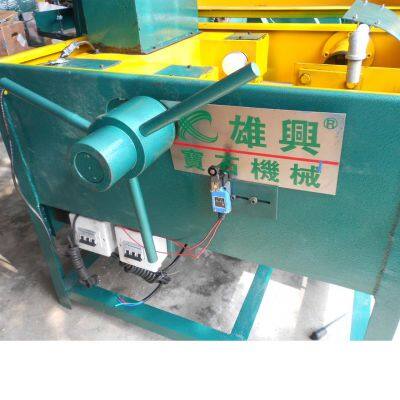

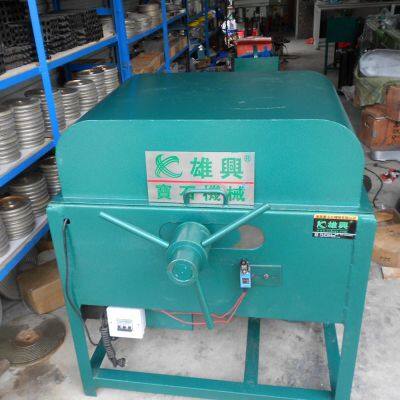

Agate crystal glass emerald gem cutting equipment Zhuoji automatic rotary slicer
No.: 310204001 model XX250-S
Zhuoji automatic rotary slicer
This machine is a product designed by our factory according to the shape characteristics of some gems and jades. It can slice and process the block materials within the size range of 15cm. The materials make high-speed circular motion on the clamp of the machine and push towards the cutting pieces. After the fixed blade is cut into pieces, it has the advantages of high yield, small material loss, flat and smooth incision, accurate slice thickness, convenient adjustment, good safety and maintenance free of equipment Low cost advantage.
Technical parameters:
Input voltage: AC 380V
Motor power: 4kw
Spindle speed: 900r/min
Maximum loaded cutting blade size: 10 inches
Slice thickness: 5mm-30mm
Overall dimension: 1100mm long × 900mm wide × 1050mm high
Guangzhou Panyu Zhuoji gem Machinery Co., Ltd., founded in 2003, is a gem machinery supplier integrating R & D, production and sales. The company has introduced a large number of professional production tools and advanced processes from home and abroad. After more than 10 years of time and careful design and manufacturing, it has now developed into an enterprise with a mature production, processing, sales and after-sales service system.
The continuous improvement of product quality has made our products highly praised by the industry. The products are sold all over the country, Europe, America, Southeast Asia and other countries and regions. At the same time, it has become an important supplier of many gem processing bases, and is deeply recognized by users at home and abroad.
Welcome customers to visit and talk
Business scope:
Jewelry and gem processing equipment series
1. Automatic processing equipment for gem cutting / cutting sheet
2. Automatic CNC processing equipment / tools for color gem cutting surface and faceting.
3. Automatic CNC processing equipment / tools for gem beads
4. Jade jade bracelet processing equipment / tools
5. Special shaped and heteromorphic processing equipment / tools
6. Gem glue injection and glue filling optimization processing equipment / tools
7. Vibrating barrel polishing processing equipment / abrasive
8. Drilling equipment / tools
