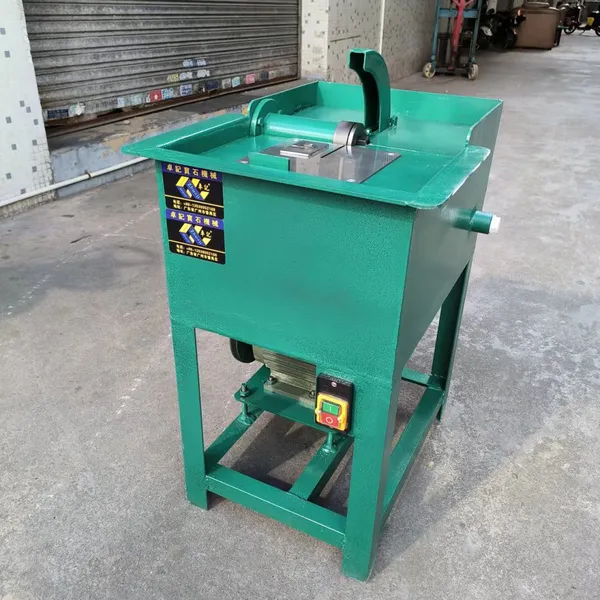

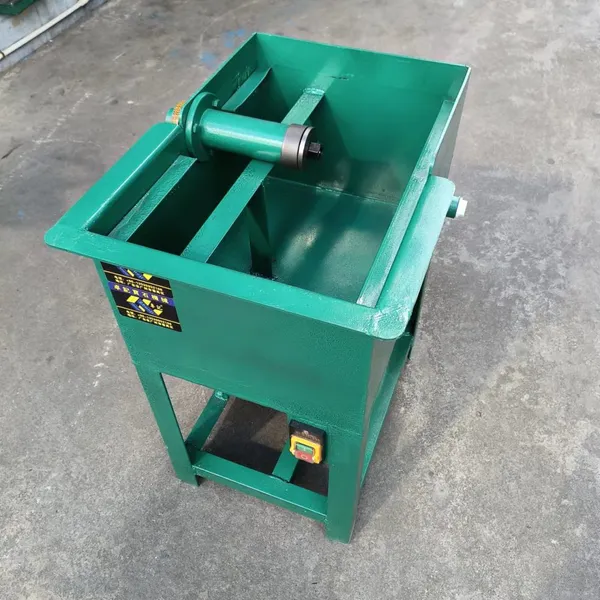

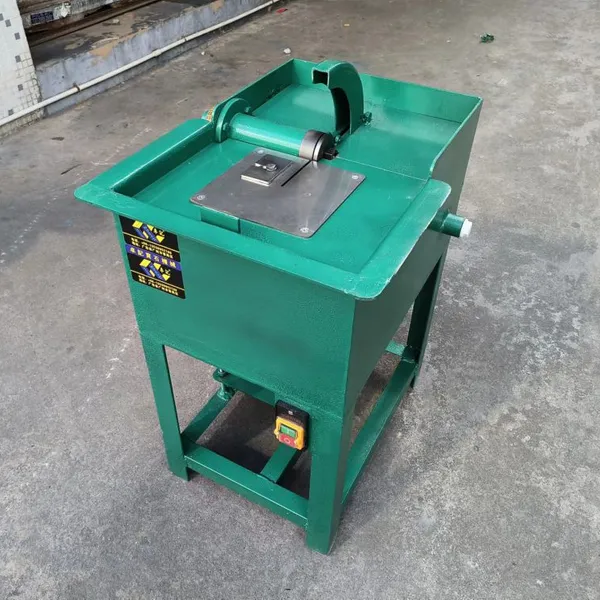

Xiongxing Small Gem Cutting Machine
Model: F2400D
Serial No.: 510210013
I. Product Introduction
The F2400D is a benchtop cutting machine designed specifically for manual cutting of small or irregular stones. Suitable for materials such as crystal, agate, jade, amethyst, glass, and more. Compact and flexible, it is an ideal tool for jewelry processing, DIY projects, and small-batch production.
II. Key Advantages
· Precision Spindle System: The spindle and sleeve are precision-ground to ensure high coaxiality, low heat generation at high speeds, and long-term stability.
· Stable, Vibration-Free Cutting: Smooth operation with no vibration, producing flat and clean cut surfaces that reduce subsequent grinding work.
· Dual Voltage Compatibility: Supports both AC 380V and AC 220V input, adapting to different factory or home power environments.
· Powerful Drive: 1.1 kW motor with a spindle speed of 3606 r/min, balancing cutting efficiency and surface quality.
· Large Cutting Blade: Accepts 10-inch (250 mm) blades, meeting common stone processing needs.
III. Technical Parameters
Parameter Value
Input Voltage AC 380V / AC 220V
Motor Power 1.1 kW
Spindle Speed 3606 r/min
Suitable Blade Size 10 inches (250 mm)
Dimensions (L×W×H) 57 × 45 × 72 cm
IV. Working Principle
The motor drives the spindle to rotate at high speed, which in turn spins the mounted cutting blade. The operator manually feeds the stone toward the blade, and cutting is achieved through the abrasive action of the blade edge. Thanks to the high coaxiality of the spindle and sleeve, rotation is stable, resulting in smooth cuts and low heat generation.
V. Installation Steps
1. Unpacking Inspection: Verify that the main unit, cutting blade, wrench, and other accessories are present, and that the machine has no transport damage.
2. Placement: Set the cutter on a stable, level workbench, leaving enough space around for ventilation and operation.
3. Install the Cutting Blade:
· Open the spindle guard.
· Slip the blade onto the spindle, ensuring the rotation direction matches the machine’s marking.
· Place the flange washer and tighten the nut using the supplied wrench.
· Close and fasten the guard.
4. Connect to Power: Select the correct wiring (380V or 220V) according to your local power supply, and ensure the motor rotation direction matches the indicator.
5. No-Load Test Run: Turn on the power and start the motor. Observe if the machine runs smoothly without abnormal noise.
VI. Functions & Operation
· Power On/Off: Use the machine switch to start and stop the motor.
· Cutting Procedure:
1. Hold the stone firmly with both hands, wearing safety glasses and gloves.
2. Slowly bring the stone toward the blade, applying steady pressure—do not force or impact suddenly.
3. For irregular stones, mark a cutting line and follow it as you feed.
4. If equipped with a cooling port, water can be added during cutting to reduce dust and extend blade life.
· Speed Note: The machine runs at a fixed speed of 3606 r/min; no speed adjustment is needed.
VII. Blade Replacement
1. Turn off the power, unplug the machine, and wait for the spindle to stop completely.
2. Open the spindle guard.
3. Use a wrench to hold the spindle, and use another wrench to turn the lock nut counterclockwise to loosen it.
4. Remove the old blade and clean dust from the flange and spindle.
5. Install the new blade (ensure direction matches), place the flange, and tighten the nut.
6. Rotate the blade manually to confirm there is no binding.
7. Close the guard and run a test with power on.
VIII. Safety Precautions
· The guard must be installed and never removed during cutting.
· Operators must wear safety glasses, a dust mask, and gloves.
· Do not clean chips or adjust the workpiece while the machine is running.
· Replace the blade when it wears down to a diameter smaller than 200 mm.
· Check spindle heating after prolonged use; stop and inspect if overheating occurs.
