Panel PC

10~21" panel pc, 120~512G SSD, 4G Ram, SSD and ram size are optional. I/O configuration support to custiomize. 12.1" LCD panel (1024x768) touchscreen industrial Panel PC with 4xCOM(3*S232,1*RS485) , 1x LPT, 2x PS/2, 1xVGA, 4xUSB2.0, 2xLAN, 1x Audio, MIC

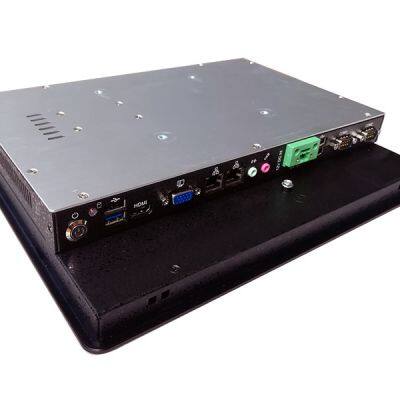

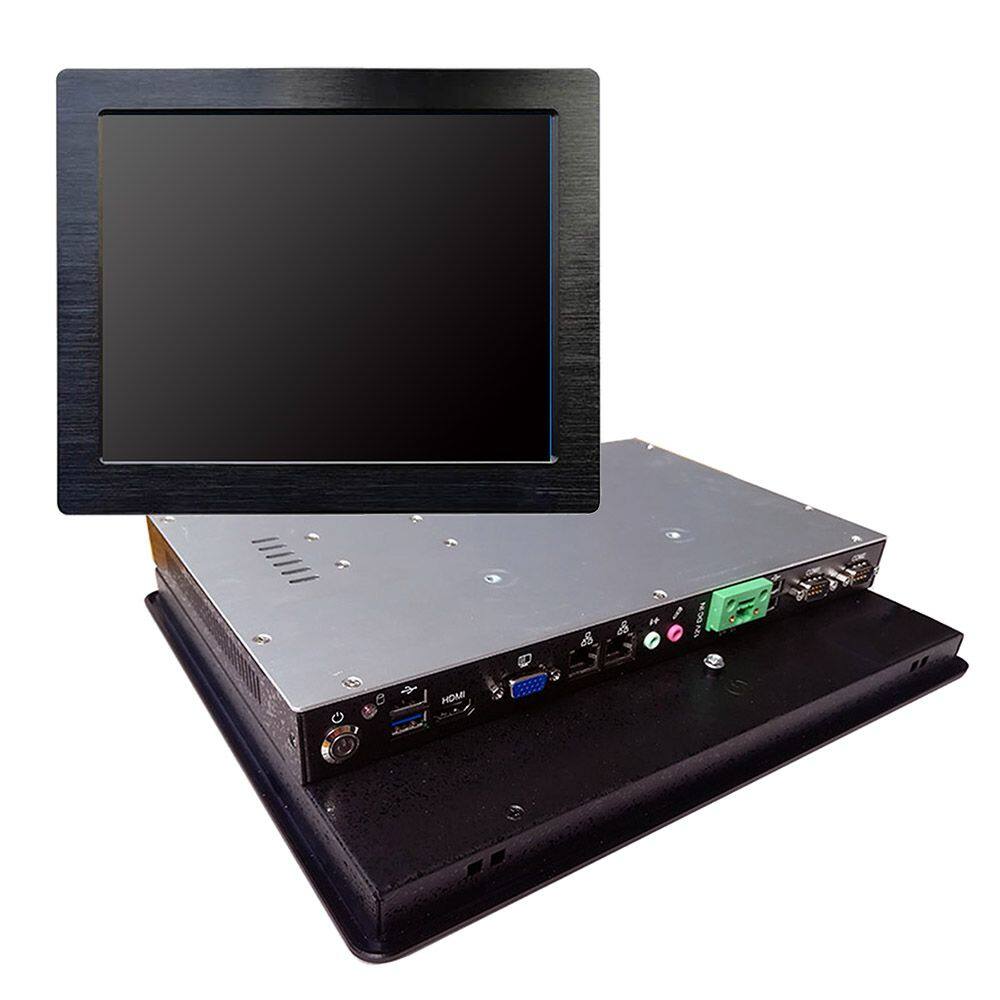

• [IPC-12DF] 12.1 inch touchscreen industrial panel pc with HDMI

•


•


•


• Features of the Panel PC

• 12.1" XGA TFT LCD Panel support 1024x768 pixels

• 5mm Aluminum front bezel with resitive touch screen

• Intel Celeron J1900 Quad Core 2.0G CPU

• Supports Win7/Win8/Win10, Linux

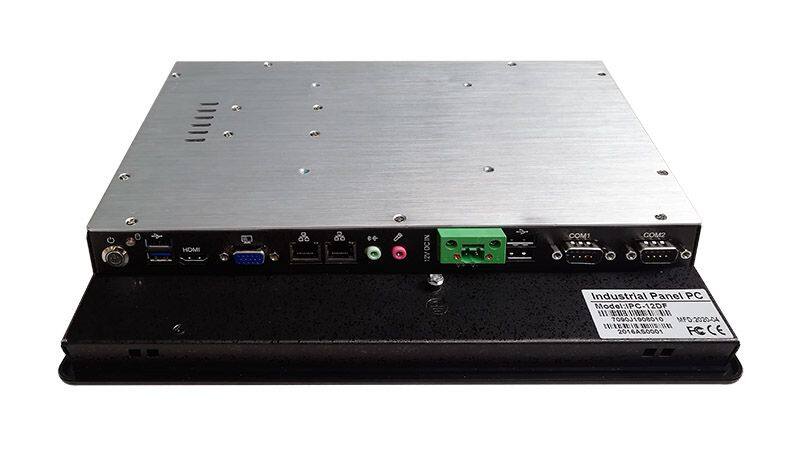

• 2*COM , 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC

• 1* Mini PCIe slot for wifi optional

• Standard DC 12V input (optional Wide range DC 9-36V input)

• Panel ( Flush ) mount with clips

• Standard VESA 100mm hole support stand , wall mount and swing arm

• Specifications of The Panel PC
• System

• Processor Intel Celeron J1900

• Chipset Intel Bay trail SOC

• Memory DDR3 4G RAM (Max 8G)

• Storage HDD/SSD size optional

• Ethernet 2 x 100/1000 LAN ports

• Video 1 x VGA, 1x HDMI

• Audio 1x Mic-in / Line-out

• USB Port 3 x USB 2.0, 1x USB3.0

• Serial Port 2 x RS-232

• Power switch 1 x power switch

• Expansive Slot 1 x Mini PCIe

• Power supply DC12V input (Optional 9-36V), 100~240V AC , 50/60Hz, external ac adapter

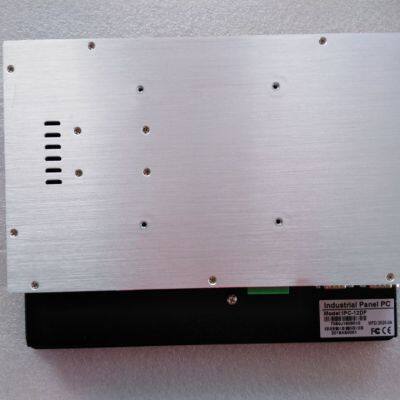

• Construction Front aluminum bezel(5 mm) and steel chassis

• LCD display

• Display Type 12.1" XGA TFT LCD(LED backlight)

• Resolution 1024 x 768

• lor 16.2M

• Luminance 400 cd/m2

• View Angle 150°(H) , 135°(V)

• Pixel Pitch 0.297 x 0.297 mm

• Contrast Ratio 300:1

• Response Time 8 ms

• LCD MTBF 50, 000hrs

• Available Options for the Panel PC

• Touch screen Resistive type touch screen

• Wireless LAN Meet IEEE802.11b/g standard(WiFI)

• DC Power Input Wide Range 9~36v DC input

• Environmental

• Operate temperature -10°C~ 60°C (-14~140°F)

• Storage temperature -20°C ~ 70°C (-4 ~ 158°F)

• Storage humidity 5% to 95% @40°C non-condensing

• Anti-Vibration 17HZ-500 HZ 1G PTP

• Anti-Shock 1G / peak( 11m sec)

• Power supply

• Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector

• Output DC12V, output 32W


• Packing info

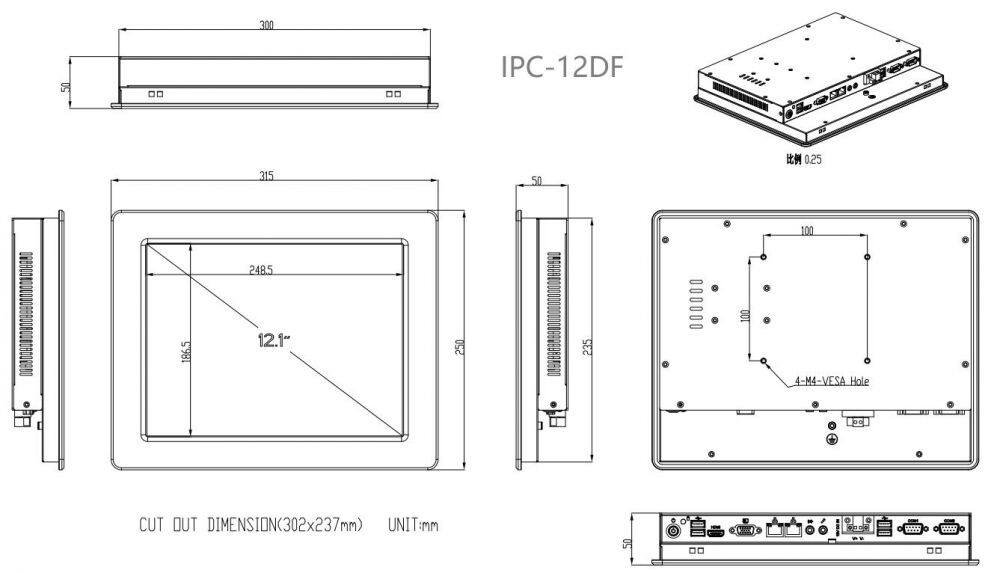

• Dimensions (WxHxD) 315 x 250 x 49mm

• Weight Net: 4.6kg , Gross:6.8 kg
