Home > Products > Network security appliance > Network Cyber Security Appliance based socket LGA 1200 H5 I7 I9 Xeon W1200 W1300 CPU 4NMC slots
Network Cyber Security Appliance based socket LGA 1200 H5 I7 I9 Xeon W1200 W1300 CPU 4NMC slots
- 200 Piece / Pieces per Month
- Wide temperature Industrial computer Fanless Embedded din rail PC
- Server Rack mount Monitor with Keyboard and Double or Triple Drawer LCD Display
- Cyber security appliance Network application Intel J6413 CPU 6x 2.5G RJ45 and 2x SFP LAN
- Network security appliance based on Rocket Lake family Intel W580 chipset with one NMC slot
- Network security Appliance with intel J6413 cpu and 2 NMC slots Model NO. F64817
- Network security appliance, 4 NMC slots, rackmount, Xeon E3 and 6th/7th Gen Intel Core i7/i5/i3 Processor
Product Details
Model Number: | F58214 |
Product Description

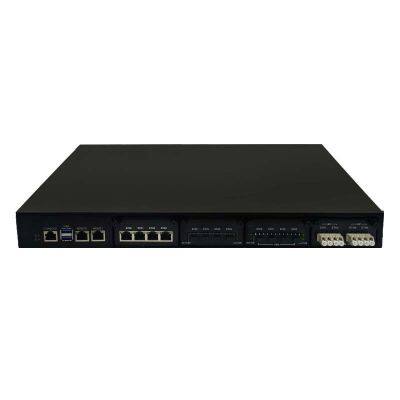

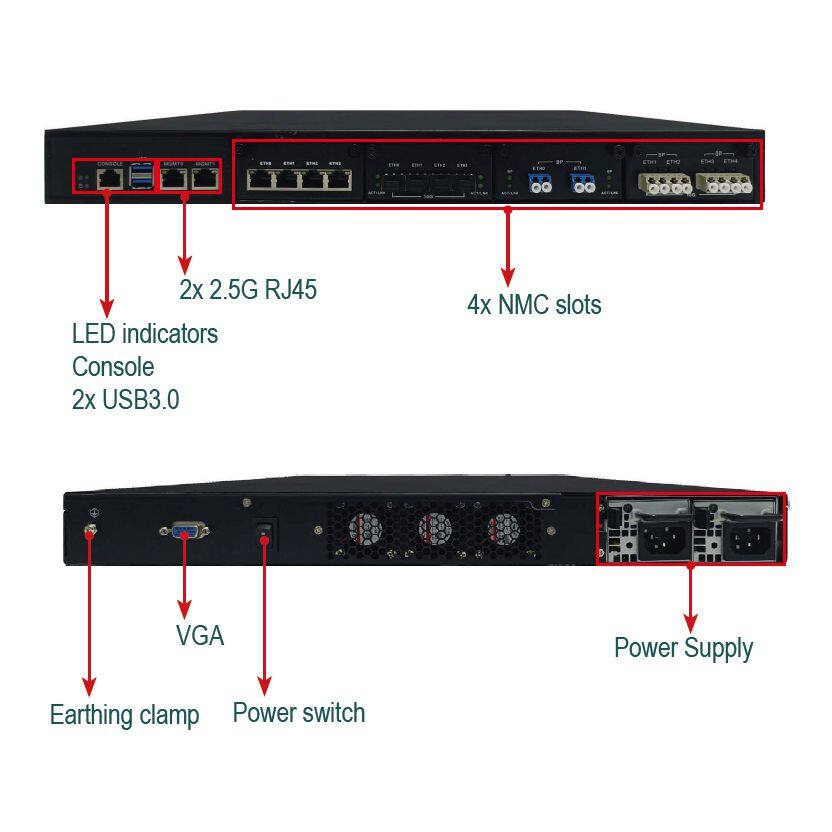

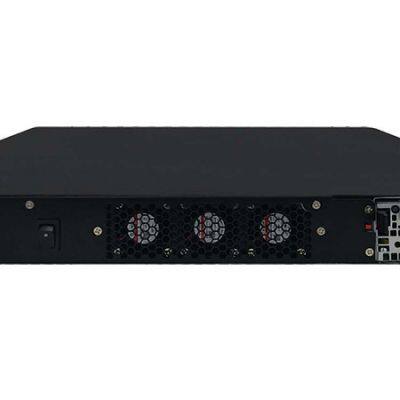

F58214 is a 1u Network cyber security Appliance support socket LGA 1200/ H5, I7 I9 Xeon W1200 W1300 CPU, 1u rackmount chassis, Its motherboard with W580 Chipset, Supports SATA3.0, mSATA, M.2 multiple storages options and 4 DDR4 RAM slots MAX 128G RAM. 2x 2.5G RJ45 GbE, 4 NMC slot, 250W PSU or 450W redundant PSU.
Aavailable models for your projects:
Model NO | CPU | Max. RAM | Storage | LAN ports (Initial) | Max.LAN ports (Scalability) | Bypass | NMCs |
F58811 | Gen10/Gen11 Core and Xeon W-1200/1300 series CPU | 128GB | SATA3.0, mSATA, M.2 | 8x 2.5G | 12x by NIC (SFP,SFP+, RJ45) | 3 groups | 1 NMC |
F58214 | Gen10/Gen11 Core and Xeon W-1200/1300 series CPU | 128GB | SATA3.0, mSATA, M.2 | 2x 2.5G | 32x by NIC (SFP,SFP+, RJ45) | Optional | 4 NMCs |
F58224 | Gen10/Gen11 Core and Xeon W-1200/1300 series CPU | 128GB | SATA3.0, mSATA, M.2 | 2x 2.5G | 32x by NIC (SFP,SFP+, RJ45) | Optional | 4 NMCs |
Anxin's network appliance barebone system has high performance, flexibale extension, usually deploys into projects as network and cyber security including Unified Threat Management, IPS, IDP, SSL VPN, Load Balancing, Bandwidth Manager, Firewall, Bandwidth Management, Gateway security, WAN acceleration, Network Access Control, Web Filter, AntiVirus Wall, Core Switch, Server Load Balancing, Anti-Spam.
CPU Intel Socket LGA 1200/ H5, I7 I9 Xeon W1200 W1300 CPU
Chipset Intel W580
System memory Four DDR4 slots, up to 128GB
Interface Two SATA3.0 connectors, one mSATA and one M.2 slot
Hard Drive Supports one 3.5/2.5" HDD tray
LAN Port Two 2.5G RJ-45 ports
Ethernet Chip Intel® Ethernet Controller I225-V
Extension ports Max 32 ports, extending by NMC slots
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
USB Two USB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
Video Built-in one VGA interface, support hot plug(Internal)
NMC slots Four NMC slots for extension NIC
Expansion PCIEx8 slots
Power consumption 250W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power
Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing
Chassis Color Black or OEM
Front panel PVC (OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 570x440x45 mm
Weight 10.6 kg
