17 Inch Industrial Monitor With Touch Screen

Shanghai Anxin Intelligent Technology CO.,LTD.
17 Inch Industrial Monitor With Touch Screen thumbnail-1
17 Inch Industrial Monitor With Touch Screen thumbnail-2
17 Inch Industrial Monitor With Touch Screen photo-1

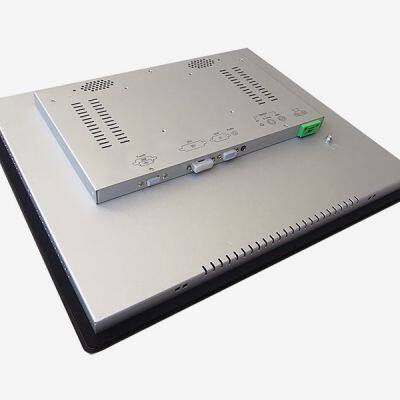

17 Inch Industrial Monitor With Touch Screen photo-2
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
IDM-17
Screen Size:
17"
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number IDM-17
Screen Size 17"
Interface Type D-Sub, DVI, HDMI, RS232C, S-Video
Products Status Stock
Widescreen No
Resolution 1280 x 1024
Panel Type TFT
Contrast Ratio 700:1
Brightness 250cd/m
Response Time 25ms

Anxin's industrial monitor.

Our industrial monitors include process monitoring and control and motion control. Stock and OEM service are accepted. Additionally, they are used in factory automation and machine vision inspection. You will find them deployed in safety, digital signage, and surveillance,HMI, Kisok, Automation machine, M2M, ATM, Smart factory，heavy Manufacturing Equipment, CNC, machine tool etc.

Industrial monitor version

Model NO

LCD size

Resolution

Touch

Input signal

Dimensions

IDM-0575.7"640   x 480USB/COMVGA186   x 145 x 40 mm
IDM-077"1024   x 600
    or  800 x 480		USB/COMVGA210   x 140 x 40 mm
IDM-088"1024   x 768USB/COMVGA287.5   x 231 x 50 mm
IDM-1010.4"800   x 600USB/COMVGA+HDMI/DVI300   x 230 x 38 mm
IDM-1212.1"1024x768
    or 800x600		USB/COMVGA+HDMI/DVI320   x 258.5 x 42 mm
IDM-1515"1024   x 768USB/COMVGA+HDMI/DVI375   x 300 x 42 mm
IDM-1717"1280   × 1024USB/COMVGA+HDMI/DVI408   x 345 x 47 mm
IDM-1919"1280   × 1024USB/COMVGA+HDMI/DVI450   x 375 x 47 mm
IDM-156W15.6"   wide1920   x 1080USB/COMVGA+HDMI/DVI402x   252 x 45 mm
IDM-173W17.3"   wide1920   x 1080USB/COMVGA+HDMI/DVI440x   302.5 x 45 mm
IDM-19W19"   wide1440   x 900USB/COMVGA+HDMI/DVI480   x 330 x 44 mm
IDM-215W21.5"   wide1920   x 1080USB/COMVGA+HDMI/DVI545   x 375 x 45 mm
IDM-236W23.6"   wide1920   x 1080USB/COMVGA+HDMI/DVI605   x 380 x 47 mm
Extendable Input ( Optional ): BNC, AV, S-vedio; OSD optional;   OEM accepted.


Features

  • 17" SXGA TFT LCD Monitor support 1280 x 1024 pixels,300 cd/m2 brightness

  • 6mm Aluminum bezel panel with touch screen/strengthen glass

  • Rugged construction and modularized design

  • VGA + DVI or HDMI + Audio Input signal(AV and Other Optional)

  • 2 x stereo speakers for industrial automation system voice output

  • OSD control keys to optimize the display

  • AC 100-240V wide range external ac adapter

  • NEMA4 / IP 65 compliant front panel

  • Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount

  • Application for LCD monitor, HMI, Kiosk, Automation, M2M, heavy Manufacturing Equipment(CNC, machine tool etc.)

Specifications

Display LCD

Display Type 17" SXGA TFT LCD
Resolution 1280x1024
lor 16.7M
Luminance 300 cd/m2
View Angle 178°(H) , 178°(V)
Pixel Pitch 0.264 x 0.264mm
Contrast Ratio 1000:1
Response Time 5 ms
LCD MTBF 50,000hrs

Input Signals

RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
Video Input (option) RCA Connector
S-Video signal (option) S-Video (SVHS)plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)

Available Options

Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
AV input Composite Video/Audio, S-Video Input

Power supply

Standard 100~240VAC,50/60Hz, DC12V@5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)

Environmental

Construction Heavy duty steel and aluminum front panel
Operate temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)

Packing info

Dimensions (WxHxD) 408 x 345 x 47 mm
Weight Net: 8.0kg , Gross:10.5 kg



Product Tags: touch screen monitor , industrial monitor , industrial touch screen monitor
