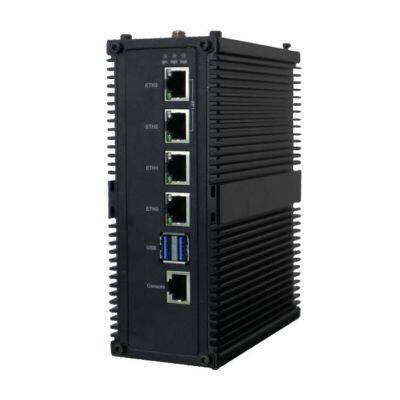

Wide temperature Industrial computer Fanless Embedded din rail PC

Wide temperature Industrial Computer, Fanless design, ruggedized and DIN-RAIL type embedded computer.

Anxin's DIN Rail Industrial PCs (IPCs) and Embedded Automation Computers are wide temperature designed for the purpose of offering the benefits of open architecture, PC-based control systems in industrial control applications, over traditional proprietary controllers such as PLCs. Its DIN-Rail mounting design also provides for easy installation inside control cabinets. While ideal for industrial control automation applications, with their high-powered multi-core processors.

Wide temperature Industrial Embedded PC,  DIN RAIL mount version computer.

Din rial PC wide temperature Model - IFW64806

Industrial computer with small size, supports Din rail installation, wide-temperature, network application appliance,  high realtabilty, small size support DIN-RAIL rail type installation. Onboard Intel® X6413E processor, 6x 2.5G RJ45 network ports, supports 3 channels LAN bypass, 2x Combo SFP ports, 1x RS232, 4x RS485 com, dual 9~36V DC in

Features

• Intel® Celeron quad-core X6413E processor, 1.91GHz, 2MB cache

• One 260pin 3200MHz DDR4 SO-DIMM RAM, max 32GB RAM

• Two Gigabit SFP/RJ45 combo Ethernet ports

• Six 2.5 Gigabit RJ45 Ethernet ports, support three channel LAN BYPASS

• One RJ-45 Console interface

• One RS-232 interface and four RS485 interfaces

• Two USB3.0, mSATA storage

• Two 9~36V DC wide voltage DC inputs, with alarm for power failure

• Multi-function LED indicators

• Fanless thermally conductive aluminum extrusion to support wide temperature working

• Support DIN-RAIL rail type installaction

• Widely used in industrial-application environments

Specifications

Motherboard

• CPU Intel Celeron Quad-core X6413E processor, 1.8GHz, 1.5MB cache

• System memory One 260pin DDR4 3200MHz SO-DIMM slot, Max 32GB RAM

Storage

• Interface One mSATA Interface

• SSD MAX 512G SSD

• CF slot None

Ethernet

• LAN Port Rj45 Four 2.5G RJ45 network interfaces

• Ethernet Chip Intel® Ethernet Controller I225-V

• Combo ports Two RJ45 and two SFP GbE network ports

• BYPASS Three channels Gen3.0 LAN BYPASS

• Indicator With LAN link, active, speed LED, built-in BYPASS status LED

External I/O

• USB Two USB3.0

• Console One RJ-45 console port

• Display One HDMI interface

• COM One RS232 and four RS485 COM

• Indicator One Power LED, one HDD LED, one definedable LED

• Reset Button One built-in reset button

• Watchdog 1~255 seconds programmable software watchdog, support system reset

Power supply

• Power consumption 60W power adapter

• Power input Dual 9 ~ 36V wide range DC input

Environmental

• Mounting Support din rail installation

• Operate Temperature -40°C ~ 70°C

• Storage Temperature -50°C ~ 85°C

• Operate Humidity 5% ~ 85% non-condensing @ 40°C

• Storage Humidity 5% ~ 95% non-condensing

Mechanical

• Chassis Color Black

• Front panel Front panel silk-screen [Customized LOGO optional]

• Construction Aluminum extrusion chassis

• Dimensions (D x W x H) 158.1x122x60.8 mm

• Weight 3.2 kg
