Network security appliance support Gen10/11processor i3/i5/i7/ i9 Core, Xeon W-1200/1300 processor

1u/2u Network security appliance based on Rocket Lake family Intel W580 chipset with one NMC slot

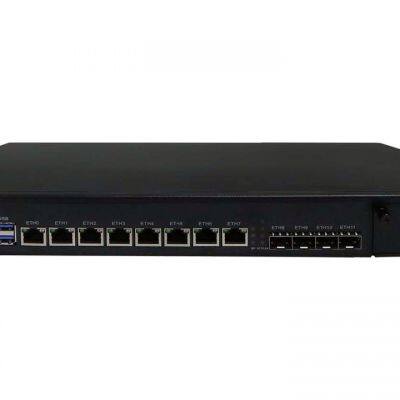

The F58811 is a Network security appliance based on Intel® Rocket Lake family Intel® W580 chipset, Network security appliance, 1u rackmount chassis, Its motherboard with W580 Chipset, Supports SATA3.0, mSATA, M.2 multiple storages options and 4 ram slots MAX 128G RAM. 8x 2.5G RJ45, 3 channels bypass, 1 NMC slot, 250W PSU or 450W redundant PSU.

• Supports Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor

• Intel® W580 chipset(Rocket Lake family)

• Four 288pin 2933/3200MHz DDR4 slots, up to 128GB

• Eight Intel 2.5G GbE port, Intel ethernet controllers, supports three channels bypass

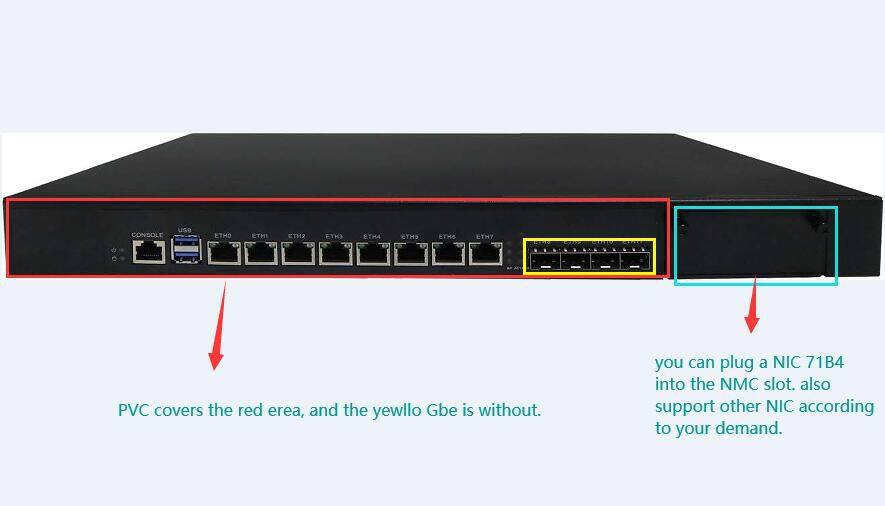

• One extension NMC slot for one NIC with more network RJ45/ SFP/ SFP+ interfaces

• Supports SATA3.0, mSATA, M.2 multiple storages options

• Front USB3.0, console interface and LED indicators

• CPU Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor

• Chipset Intel W580

• System memory Four DDR4 slots, up to 128GB

• Interface Two SATA3.0 connectors, one mSATA and one M.2 slots

• Hard Drive Supports one 3.5/2.5" HDD tray

• LAN Port Eight 2.5G RJ-45 ports

• Ethernet Chip Intel® Ethernet Controller I225-V

• BYPASS Optional 3 channels BYPASS

• Optical ports Four 1G SFP(Optional)

• Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

• USB Two USB3.0

• COM One RJ-45 COM

• Indicator One Power LED, one HDD LED

• LCM module Optional 2x16 characters LCM display module

• Video Built-in one VGA interface, support hot plug(Internal)

• Expansion One NMC slot for extension NIC

• Power consumption 250W power supply

• Power input 100 ~ 240V AC input

• Optional DC power or Redundant power

• Mounting Supports rack-mounting or desktop-mounting

• Operate Temperature -10°C ~ 50°C

• Storage Temperature -20°C ~ 75°C

• Operate Humidity 5% ~ 85% non-condensing @ 40°C

• Storage Humidity 5% ~ 95% non-condensing

• Chassis Color Black or OEM

• Front panel PVC/Aluminum front panel(OEM/Neutral)

• Construction 1u chassis, Heavy duty metal

• Dimensions (D x W x H) 450x430x45 mm

• Weight 6.2 kg
