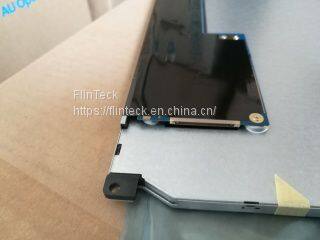

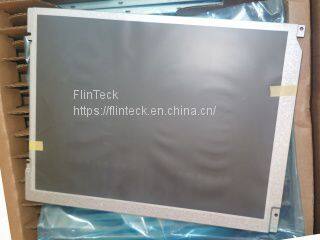

Help CenterLQ121S1LG88 SHARP 12.1 Inches
Related Products
Panel brand Sharp
Panel model LQ121S1LG88
Panel size 12.1 inches
Panel type a-Si TFT-LCD, LCD module
The resolution is 800(RGB)×600, SVGA, 82PPI.
Pixel layout RGB vertical bar
Display area 246(W)×184.5(H) mm
The external dimension is 276 (w) × 209 (h) × 9.6 (d) mm.
The visible size is 249.0 (w) × 187.5 (h) mm.
Surface treatment fog surface, Hard coating (3H)
Brightness (CD/m) 450 (typ.)
Contrast ratio 800: 1 (Typ.) [transmission]
Optical mode TN, normally white display, transmissive
Viewing angle 80/80/60/80 (Typ.)(CR≥10)
Response speed 30 (Typ.)(Tr+Td) ms
Color quantity 262K, 53% NTSC
Backlight type WLED, 50K hours, including LED driver.
Screen weight 750g (Max.) is suitable for
Refresh frequency 60Hz Touch function no touch.
Signal system LVDS (1 ch, 6-bit), terminal, 20 pins
Supply voltage is 3.3V (Typ.).
Storage temperature:-30 ~ 80 C and working temperature:-15 ~ 70 C.
