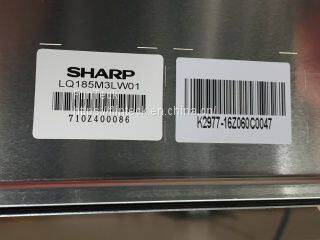

LQ185M3LW01 SHARP 18.5 inches

Panel brand Sharp

Panel model LQ185M3LW01

Panel size 18.5 inches Panel type a-Si TFT-LCD, LCD module

The resolution is 1920 (RGB) × 1080, FHD, and the pixel layout is RGB vertical bars.

Display area is 408.96 (w) × 230.04 (h) mm.

The external dimension is 430.4 (w) × 254.6 (h) × 11.3 (d) mm.

Visible area is 413.4 (w) × 234.44 (h) mm.

Surface treatment fog surface, Hard coating

Display brightness is 400 cd/m² (Typ.)

Contrast ratio 1500:1 (Typ.) (transmission)

The recommended viewing angle response time is 35 (typ.) (tr+TD) ms.

Viewing angle 85/85/85/85 (Typ.)(CR≥10)

Display mode ASV, normally black display, transmissive

Support color 16.7M, 69% NTSC.

Type of light source WLED, 50K hours, including LED driver.

Weight 1.12Kgs (Typ.) Application product frame frequency 60Hz touch technology no touch.

Interface type 30 pins LVDS (2 ch, 8-bit), terminal

The voltage supply is 5.0V (Typ.)

Working temperature of application environment:-20 ~ 70 C; Storage temperature:-25 ~ 70 C.
