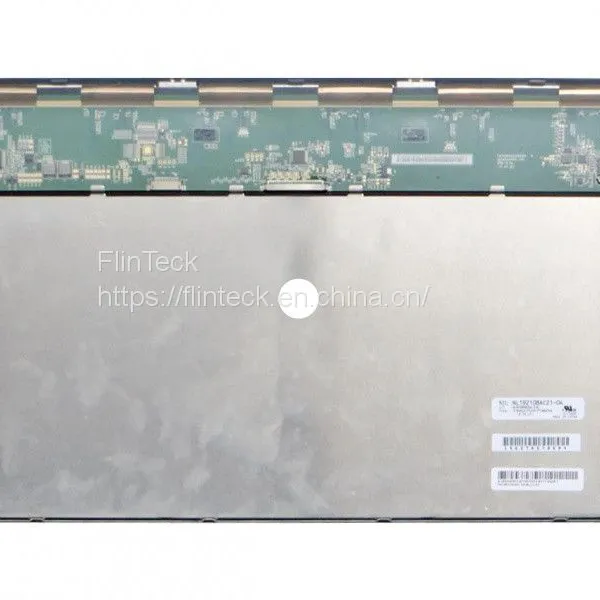

Help CenterNL192108AC21-04 NEC18.5 Inches
Related Products
Panel brand NLT (NLT)
Panel model NL192108AC21-04
Panel size 18.5 inches
Panel type a-Si TFT-LCD, LCD module
The resolution is 1920(RGB)×1080, FHD, 119PPI.
Pixel layout RGB vertical bar
Display area is 408.96 (w) × 230.04 (h) mm.
The external dimension is 430.4 (w) × 254.6 (h) × 14 (d) mm.
The visible size is 413.4 (w) × 234.0 (h) mm.
Surface treatment fog surface, Hard coating (3H)
Brightness (cdm²)400 (Typ.)
Contrast ratio 1000 1 (Typ.) [transmission]
Optical mode UA-SFT, normally black display, transmissive.
Viewing angle 88888888 (Typ.)(CR≥10)
Response speed 1213 (Typ.)(TrTd) ms
Color quantity 16.7M, 72% NTSC
Backlight type WLED, 50K hours, including LED driver.
Screen weight 1.551.70Kgs (Typ.Max.) is suitable for
Refresh frequency 60Hz Touch function no touch.
Signal system LVDS (2 ch, 8-bit), terminal, 30 pins
Supply voltage 5.0V (Typ.) Storage temperature-30 ~ 80 C Working temperature-20 ~ 70 C.
