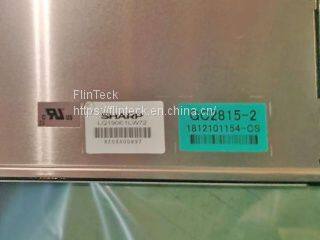

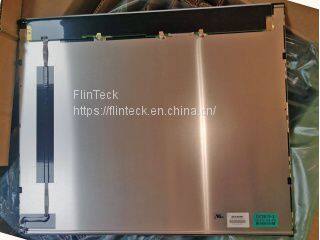

LQ190E1LW72
Panel brand Sharp
Panel model LQ190E1LW72
Panel size 19.0 inches
Panel type a-Si TFT-LCD, LCD module
The resolution is 1280 (RGB) × 1024, SXGA, and the pixel layout of 86ppi is RGB vertical stripes.
The display area is 376.32 (w) × 301.056 (h) mm.
The external dimension is 396 (w) × 323.6 (h) × 12 (d) mm.
The opening area is 382.00 (horizontal) ×307.55 (vertical) mm.
Surface treatment fog surface (Haze 25%), Hard coating (3H)
Display brightness is 350 cd/m² (Typ.)
Contrast ratio 1500:1 (Typ.) (transmission)
The recommended viewing angle response time is 35 (typ.) (tr+TD) ms.
Viewing angle 85/85/85/85 (Typ.)(CR≥10)
Display mode ASV, normally black display, transmissive
Support color 16.7M, 100% sRGB.
Type of light source WLED, 70K hours, including LED driver.
Weight 1.30Kgs (Max.) Application product frame frequency 60Hz touch technology no touch.
Interface type 30 pins LVDS (2 ch, 8-bit), terminal
The voltage supply is 5.0V (Typ.) and the working temperature of the application environment is-20 ~ 70 C; Storage temperature:-25 ~ 70 C.
