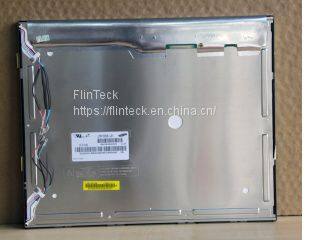

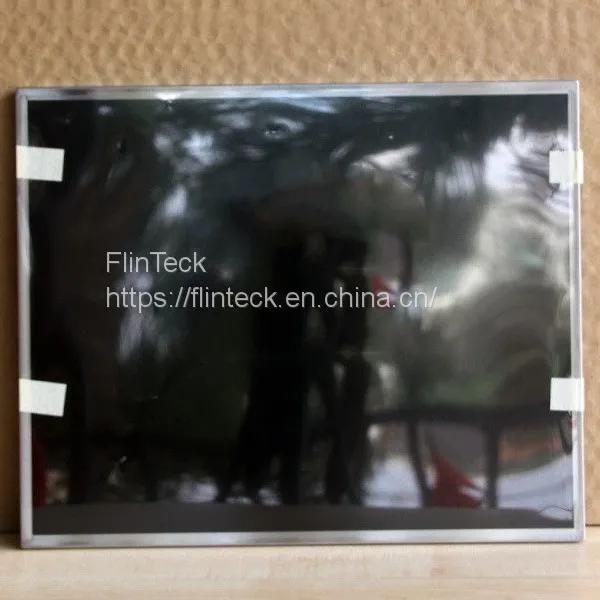

LTM170E8-L01 Samsung17 inches

Panel brand (Samsung)

Panel model LTM170E8-L01

Panel size 17.0 inches

Panel type a-Si TFT-LCD, LCD module

The resolution is 1280(RGB)×1024, SXGA, 96PPI.

Pixel layout RGB vertical bar

The display area is 337.92 (w) × 270.336 (h) mm.

The external dimension is 354.9 (w) × 290.3 (h) × 13.3 (d) mm.

The visible area is 340.92 (w) × 273.336 (h) mm.

Surface treatment fog surface (Haze 44%), Hard coating (3H).

Panel brightness is 280 cd/m² (Typ.) and contrast is 1500:1 (Typ.) (TM).

Viewing angle 89/89/89/89 (Typ.)(CR≥10)

Working mode PVA, normally black display, transmissive

The reaction time was 15/10 (Typ.)(Tr/Td).

Display color 16.7M, 72% NTSC

Light source type 4 pcs CCFL, 50K hours, excluding driving.

Touch screen with working frequency of 60Hz has no touch.

Panel weight 1.70Kgs (Max.) Panel application

Signal interface LVDS (2 ch, 8-bit), 30 pins, terminal

The screen driving voltage is 5.0V (Typ.) Working environment: 0 ~ 50 °C; Storage:-20 ~ 65 c
