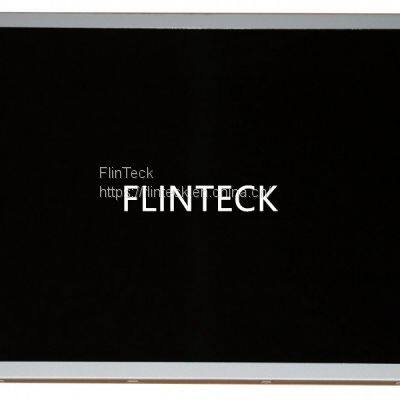

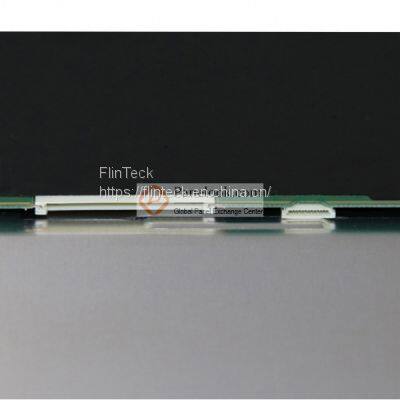

LQ150X1LW95 SHARP 15.0 Inches

Panel brand Sharp

Panel model LQ150X1LW95

Panel size 15.0 inches

Panel type a-Si TFT-LCD, LCD module

The resolution is 1024(RGB)×768, XGA, 85PPI.

Pixel layout RGB vertical bar

Display area is 304.128 (w) × 228.096 (h) mm.

The external dimension is 326.5 (w) × 253.5 (h) × 10.1 (d) mm.

Opening area is 307.4 (w) × 231.3 (h) mm.

Surface treatment fog surface (Haze 25%), Hard coating (3H)

Display brightness of 350 cd/m² (Typ.) and contrast ratio of 1500:1 (Typ.) (transmission).

The recommended viewing angle response time is 35 (typ.) (tr+TD) ms.

Viewing angle 85/85/85/85 (Typ.)(CR≥10)

Display mode ASV, normally black display, transmissive

Support color 16.2M, 86% NTSC.

Type of light source WLED, 50K hours, including LED driver.

Weight 1.10Kgs (Max.) Application product frame frequency 60Hz.

Touch technology touchless interface type 20 pins LVDS (1 ch, 8-bit), terminal

The voltage supply is 3.3V (Typ.) and the working temperature of the application environment is-20 ~ 70 C; Storage temperature:-25 ~ 70 C.
