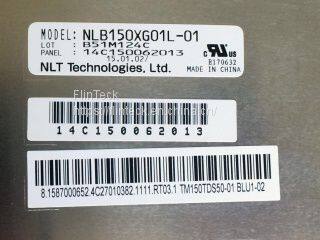

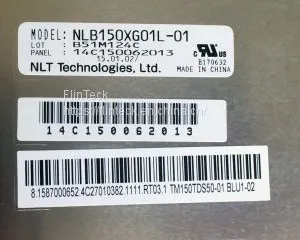

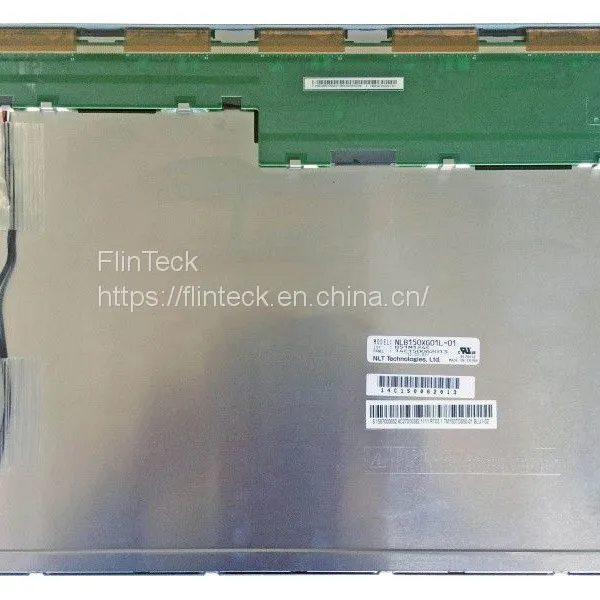

Help CenterNLB150XG01L-01 NEC15 Inches
Related Products
Panel brand NLT (NLT)
Panel model NLB150XG01L-01
Panel size 15.0 inches
Panel type a-Si TFT-LCD, LCD module
The resolution is 1024(RGB)×768, XGA, 85PPI.
Pixel layout RGB vertical bar
Display area is 304.128 (w) × 228.096 (h) mm.
The external dimension is 326.5 (w) × 253.5 (h) × 12.1 (d) mm.
The visible size is 307.4 (w) × 231.3 (h) mm.
Surface treatment fog surface, Hard coating (3H)
Brightness (CD/m) 400 (typ.)
Contrast ratio 600: 1 (Typ.) [transmission]
Optical mode TN, normally white display, transmissive
Viewing angle 80/80/80/80 (Typ.)(CR≥10)
Response speed is 3/5 (typ.) (tr/TD) ms.
Color quantity 262K/16.7M, 60% NTSC.
Backlight type WLED, 50K hours, including LED driver.
Screen weight of 1.00/1.05Kgs (Typ./Max.) is suitable for
Refresh frequency 60Hz Touch function no touch.
Signal system LVDS (1 ch, 6/8-bit), terminal, 20 pins
Supply voltage 3.3V (Typ.) Maximum rated storage temperature:-30 ~ 80 C Working temperature:-20 ~ 70 C.
