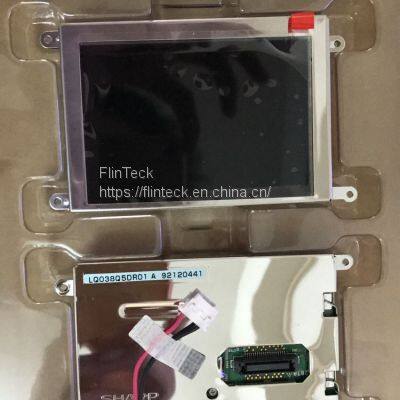

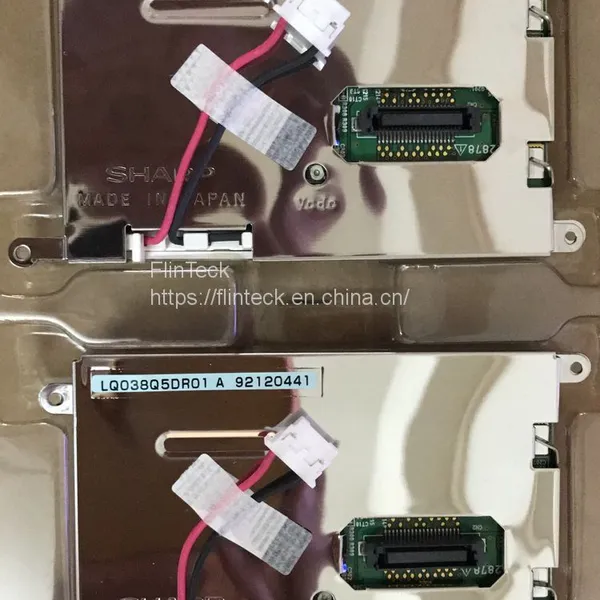

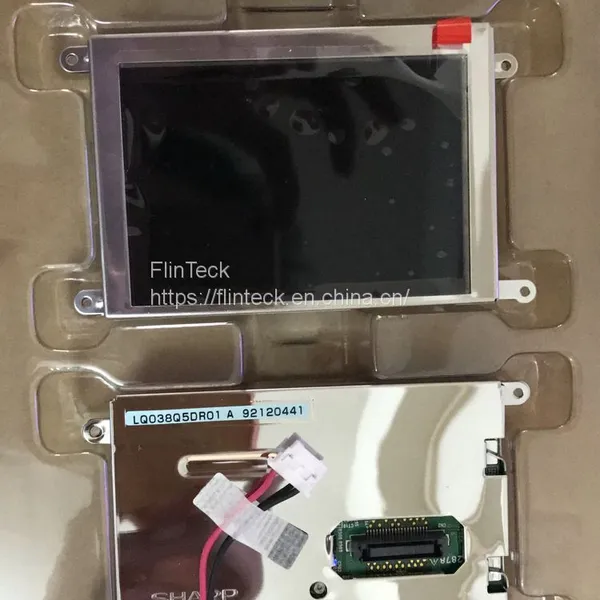

Help CenterLQ038Q5DR01 Sharp3.8LCD
Related Products
Panel brand Sharp
Panel model LQ038Q5DR01
Panel size 3.8
Inch panel type a-Si TFT-LCD, LCD module
The resolution is 320(RGB)×240, QVGA, 106PPI.
Pixel layout RGB vertical bar
Display area is 78.72 (w) × 53.64 (h) mm.
The external dimension is 117.6 (w) × 69.45 (h) mm.
Open area-surface treatment fog surface, anti-reflection treatment
The display brightness is 450 cd/m² (Typ.)
Contrast ratio 100:1 (Min.) (transmission)
Recommended viewing angle 6 o'clock
Response time 30/50 (Typ.)(Tr/Td) ms
Viewing angle 65/65/40/65 (Typ.)(CR≥5)
Display mode TN, normally white display, transmissive
Support color 262K light source type CCFL [1 pcs], 20K hours, no drive.
Weight 135g (Max.) Application product frame frequency 60Hz.
Touch technology no touch interface type 40 pins Parallel RGB (1 ch, 6-bit), terminal
The voltage supply is 3.3V (Typ.)(VCC).
Working temperature of application environment:-30 ~ 85 C; Storage temperature:-40 ~ 95 C; Vibration resistance: 2.9g (28.4m/s)
