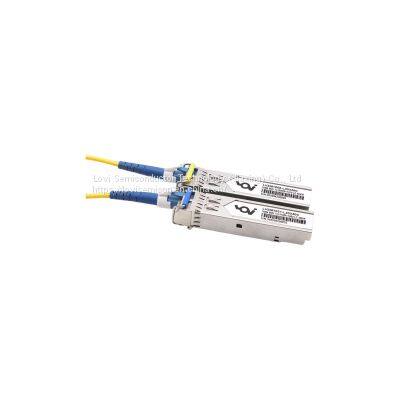

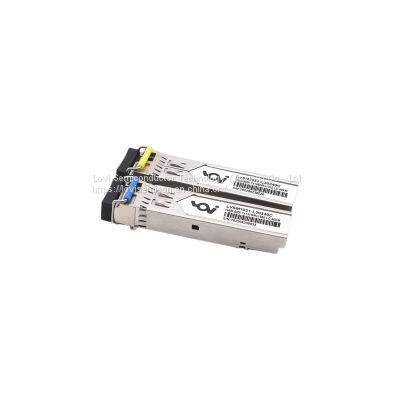

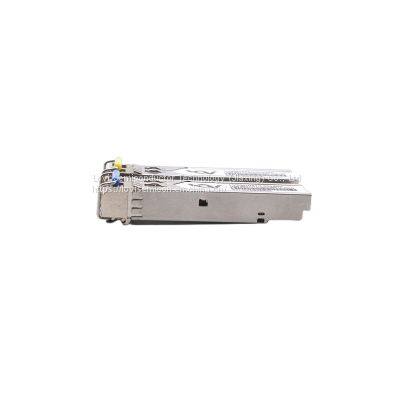

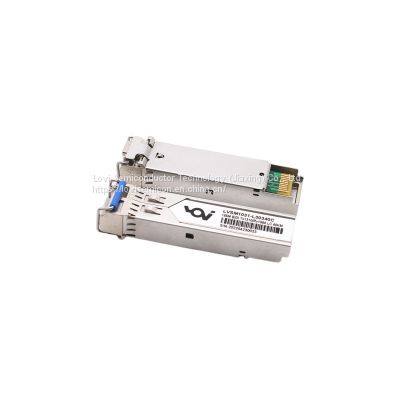

Help Center155Mbps BiDi 1310nm TX/1550nm RX SFP Optical Transceiver Module
Related Products
-
SFP 155Mbps TX 1310nm/RX 1490nm SMF 60km LC Optical TransceiverNegotiableMOQ: 100 Pieces -
155Mbps BiDi 20km Compatible SFP Module Optical Fiber TransceiverNegotiableMOQ: 100 Pieces
-
1.25Gbps 1550nm TX/1310nm RX SFP BiDi Optic Fiber TransceiverNegotiableMOQ: 100 Pieces
-
1.25Gbps 1550nm TX/1310nm RX SFP BiDi TransceiverNegotiableMOQ: 100 Pieces
-
1.25G 1550nm TX 1310nm RX BiDi SFP Transceiver for Switch Optical ModuleNegotiableMOQ: 100 Pieces
155Mbps SFP Bi-Directional Transceiver, 40km Reach 1310nm TX / 1550nm RX
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 155Mbps and 40km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features:
Up to155Mbps data-rate
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard: 0 to +70°C Industrial: -40 to +85°C
Applications:
SDH STM-1, S-1.1,L-1.1, L-1.2
ONET OC-3 IR1,LR1,LR2
Other optical links
Table 1 - Absolute Maximum Ratings
Table 2 - Recommended Operating Conditions
