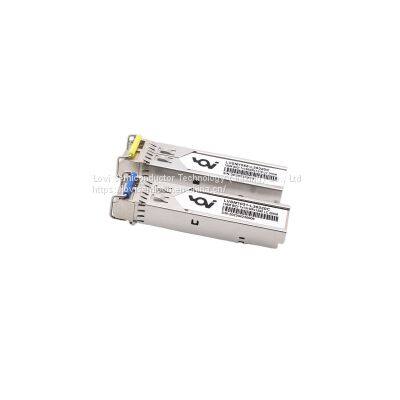

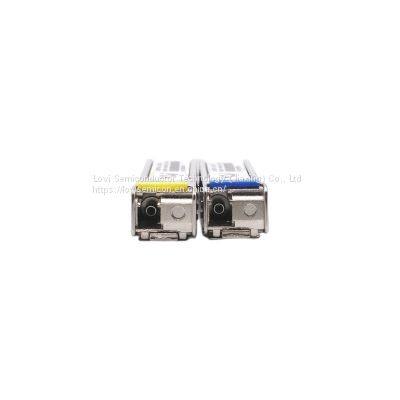

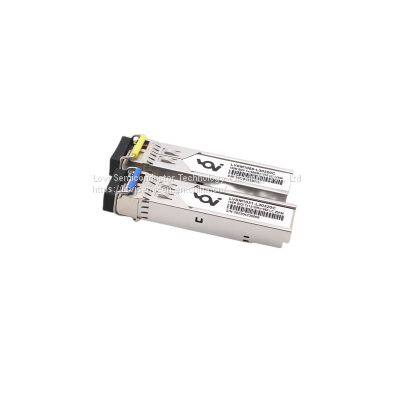

155Mbps BiDi 20km Compatible SFP Module Optical Fiber Transceiver
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2020
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
155Mbps BiDi 1310nm TX/1550nm RX SFP Optical Transceiver ModuleNegotiableMOQ: 100 Pieces -
SFP 155Mbps TX 1310nm/RX 1490nm SMF 60km LC Optical TransceiverNegotiableMOQ: 100 Pieces
-
1.25Gbps 1550nm TX/1310nm RX SFP BiDi Optic Fiber TransceiverNegotiableMOQ: 100 Pieces
-
1.25Gbps 1550nm TX/1310nm RX SFP BiDi TransceiverNegotiableMOQ: 100 Pieces
-
1.25G 1550nm TX 1310nm RX BiDi SFP Transceiver for Switch Optical ModuleNegotiableMOQ: 100 Pieces
155Mbps SFP Bi-Directional Transceiver, 20km Reach
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 155Mbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features:
(1) Up to155Mbps data-rate:
1310nm FP laser and PIN photodetector for LVSM1031-L30320X
1550nm FP laser and PIN photodetector for LVSM1055-L30320X
(2) Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
(3) Digital Diagnostic Monitoring: Internal Calibration or External Calibration
(4) Compatible with RoHS
(5) +3.3V single power supply
(6) Operating case temperature:
• Standard: 0 ~ +70°C
• Extended: -20 ~ +85ºC
• Industrial: -40 ~ +85°C
Applications:
SDH STM-1, S-1.1,L-1.1, L-1.2
ONET OC-3 IR1,LR1,LR2
Other optical links
Table 1 - Absolute Maximum Ratings
Table 2 - Recommended Operating Conditions
