IEC60529 IP2X Code 12mm Jointed Finger Probe B
- Shenzhen
- T/T
- 5 days
You May Like
-
IEC61032 Figure 9 Simulate Screwdriver or Pointed Tool Short Pin Probe 13
-
IEC61032 Figure1 Sphere Ø50mm With Handle IP1X Test Probe A
-
IEC60068-2-75 Six Energies 0.14J-1.0J Stainless Steel Shell Adjustable Spring Impact Hammer
-
IEC60068-2-75 Single Energy 0.14J Impact Test Spring Hammer Apparatus IK01 Code
-
IEC60068-2-75 IK02 Single Impact Force 0.2J Spring Impact Hammer
-
IEC60068-2-75 With a 10N Release Force 0.35J Spring Impact Hammer
Product Details
| Brand Name | JUSDATEST | Place of Origin | China | |
| Model Number | JSD-B |
Product Description

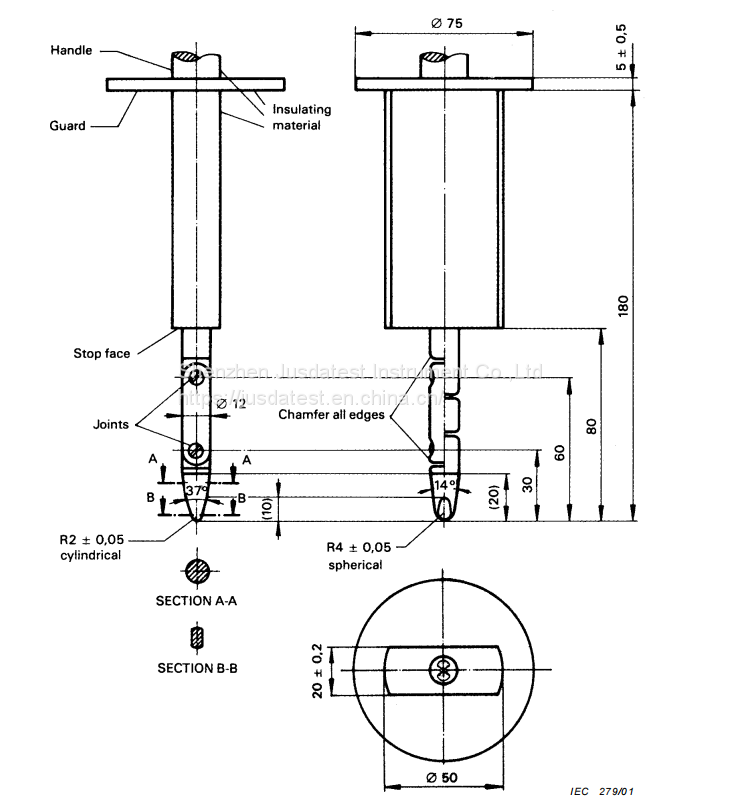

IEC61032 Jointed Finger Probe B, IP2X 12mm test finger
1. Product Introduction:
It meets the requirements of IEC60065, IEC 60335-1, IEC 60529, IEC61032 Figure 2 Test Tool B, IEC950 Figure 2A, IEC60884, Test Tool B, UL507, EN60529 Figure 1, UL1278 Figure 8.4 and other standards. Inspection for protection against finger touch or inspection against electric shock.
Specimen range: easily accessible live parts or mechanical parts of the enclosure.
2. Specification:
（1）. Diameter of curved finger: 12 mm
（2）. Bending finger length: 80mm (total length of three sections)
（3）. Diameter of baffle: 50mm
（4）. Baffle length: 100mm
（5）. Reference standard: IEC60065, IEC 60335-1, IEC 60529, IEC60884-1, IEC60950, IEC61032, IEC69745-1
