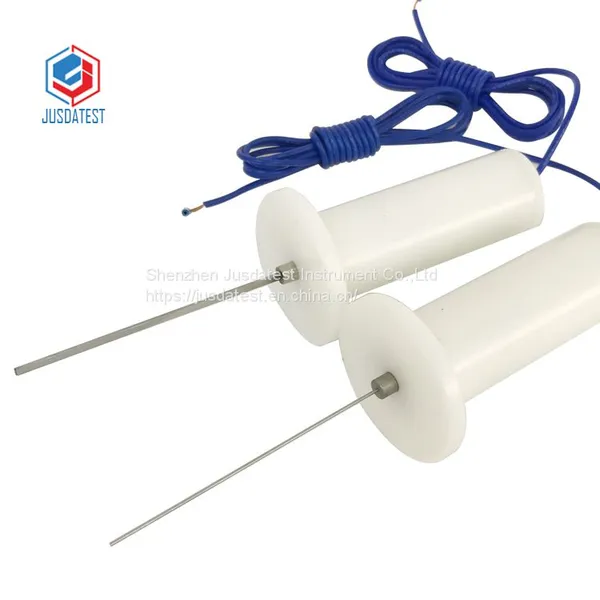

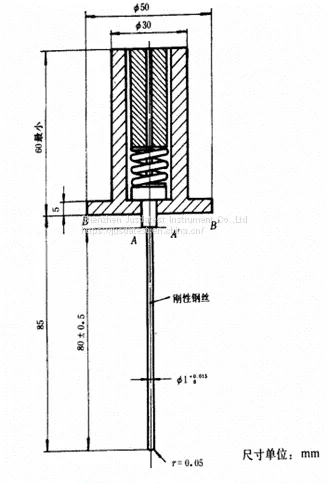

IEC60884 Figure 10 Socket-outlets Shutters With 1N Force Steel Rigid Wire Probe

1. Basic introduction:

According to IEC60884 standard. The test probe is an appliance for testing the protection against electric shock of household and similar electrical appliances.

2. Technical parameters:

1). Section: 3mmx1mm (20N probe), and Ф1.0mm (1N probe);

2). Pressure: 20N, 1N;

3). Length: 80mm.

3. How to use:

1. Use the 20N socket shutters test probe to apply it to the most unfavorable position of the shutters  in three directions in turn, and apply a force of 20N in three directions at the same position for about 5 seconds. The metal part of the probe cannot touch the electrical parts with the socket.

NOTE: The probe cannot be rotated during operation, no force is applied when the probe is moved from one orientation to another, but the probe cannot be pulled out.

2. Then use the 1N socket shutters test probe to apply 1N force in three directions. For about 5 seconds in each direction, the metal part of the probe cannot touch the electrical parts with the socket.

Note: This test needs to be touched independently, and the probe must be pulled out after each touch.
