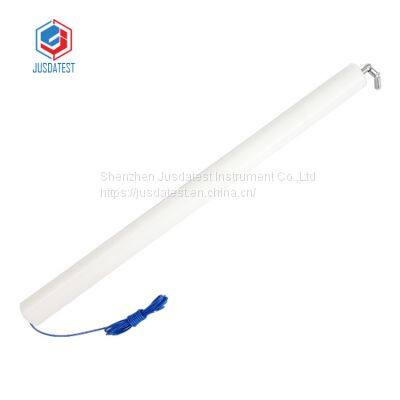

IEC61032 Figure 12 8.6mm Jointed Children Finger Probe 18
US$ 280 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JUSDATEST
Place of Origin:
China
Model Number:
JSD-18
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
2 days
Related Products
-
IEC61032 Figure 13 5.6mm Children Joint Finger Probe 19US$ 280 - 300MOQ: 1 Piece -
IEC61032 Figure7 ∅12 mm Jointless Rigid Finger Probe 11US$ 145 - 160MOQ: 1 Piece
-
IEC60065, IEC61032 Rigid Finger Probe 11 With 0-75N ForceUS$ 186 - 198MOQ: 1 Piece
-
IEC/EN 60335 Access Probe 11 With Force Scale From 0-50 NUS$ 182 - 195MOQ: 1 Piece
-
IEC/EN 60335-1 Figure 7 With 0-50N Force Test FingernailUS$ 220 - 230MOQ: 1 Piece
Brand Name
JUSDATEST
Place of Origin
China
Model Number
JSD-18
IEC61032 Figure 12 8.6mm Jointed Children Finger Probe 18
Children's test finger to meet the requirements of IEC 61032, IEC60335 and other standards, and is mainly used to simulate the test of children's fingers from 3 to 14 years old approaching dangerous parts.

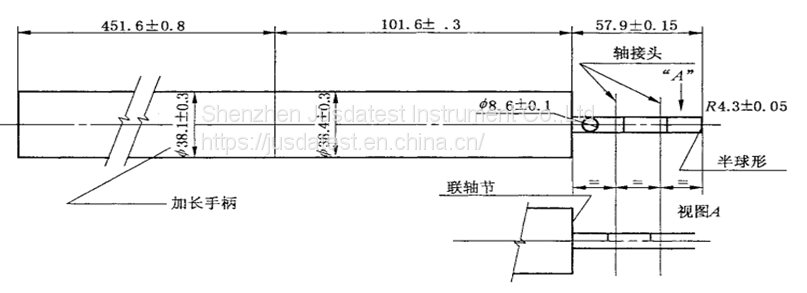

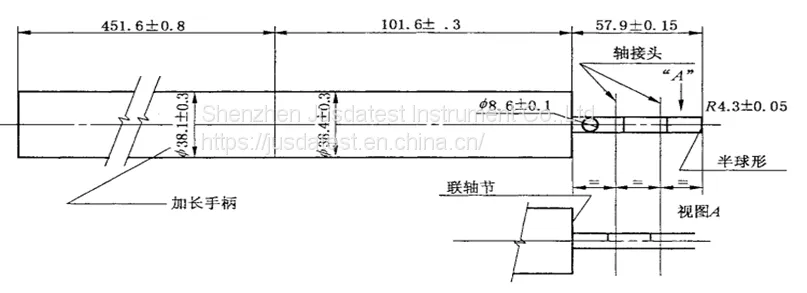

Probe 18 children's test finger parameters
1. Diameter of curved finger: 8.6mm (Probe 18 children's test finger)
2. Head radius: 4.3mm
3. The total length of the curved fingers: 57.9mm (3 sections each 19.3mm)
4. Diameter of the first handle: 38.4mm
5. Length of the first handle: 101.6mm
6. Diameter of the second handle: 38.1mm
7. Length of the second handle: 451.6mm
8. Reference standard: IEC61032: 1997 Figure 12, IEC60335
