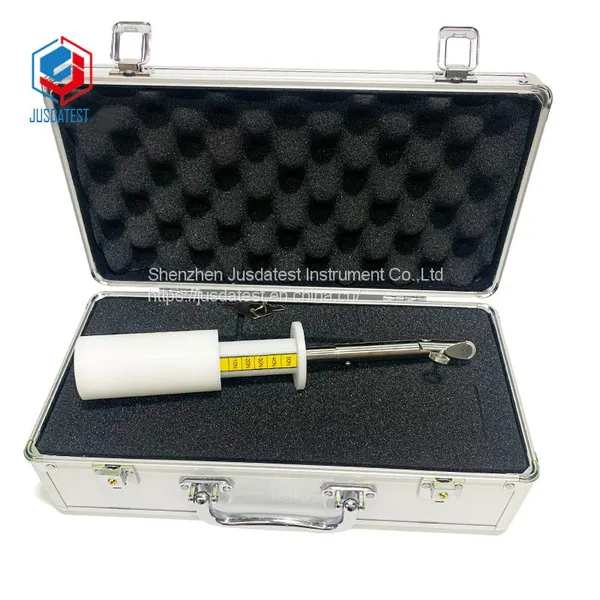

IEC/EN 60335-1 Figure 7 with 0-50N Force test Fingernail
1. Product overview:
The fingernails meet the requirements of IEC 60335.1 and IEC60745 standards. They are mainly used for the puncture test of solid insulation accessible parts to prevent sharp tools. They are also used for non-removable parts that prevent contact with live parts, waterproof or prevent contact with moving parts. fixed in a manner and should withstand the mechanical stresses that occur under normal use.
2. Technical parameters:
1. Components: three parts: fingertip, middle finger and finger base
2. Force scale: 10N, 20N, 30N, 40N, 50N

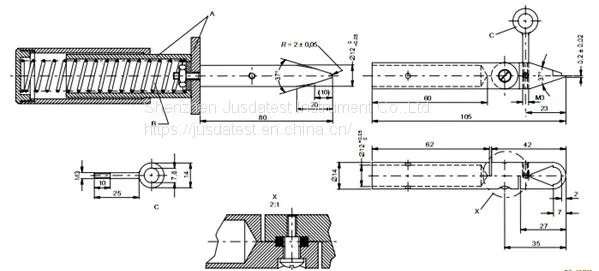

3. Reference standard: GB4706.1-2005 Figure 7, IEC60335-1 Figure 7
3. How to use:
1. The surface pressure of the scratch test is 10N, and the material that scratches the surface cannot be separated.
2.1 Insert the fingertip into any gap or connection, and apply a 10N side pull vertically, but do not twist or pry, and the relevant parts cannot fall off or be damaged.
2.2 Insert the fingertip into any gap or connection, and apply a 10N side pull in the direction of component disassembly, but do not twist or pry, and the relevant components cannot fall off or be damaged.
