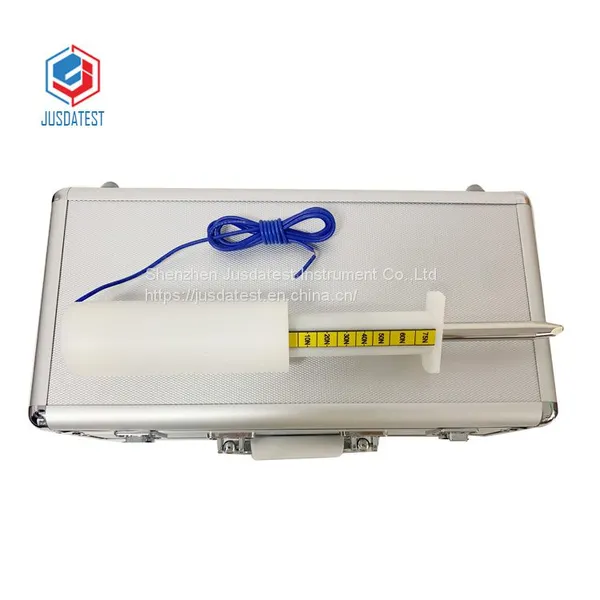

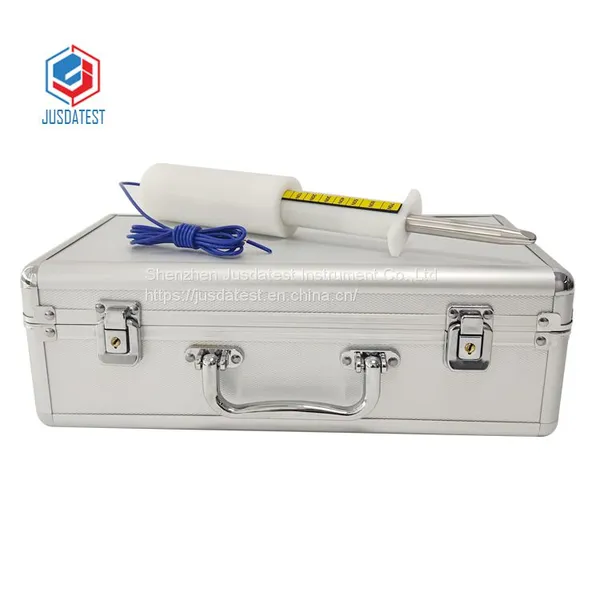

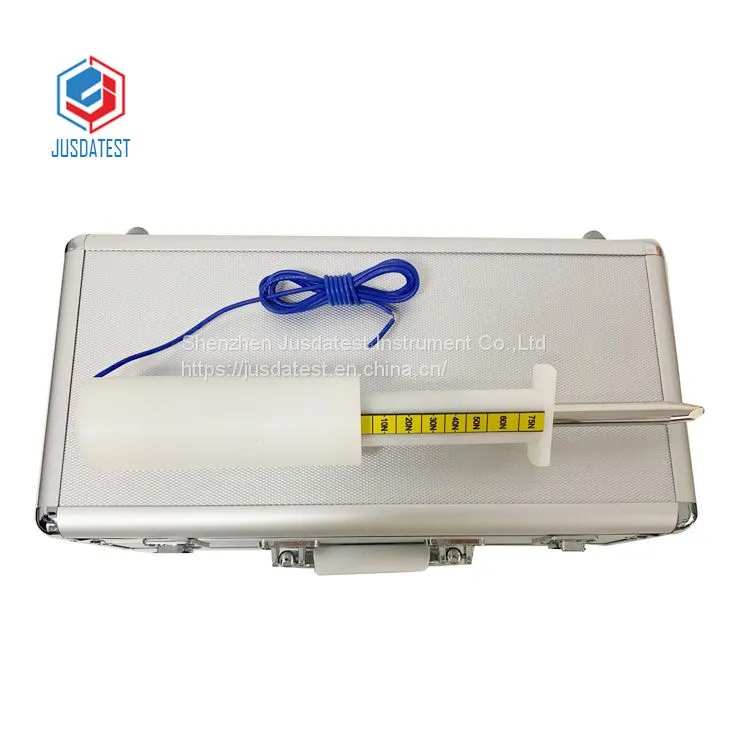

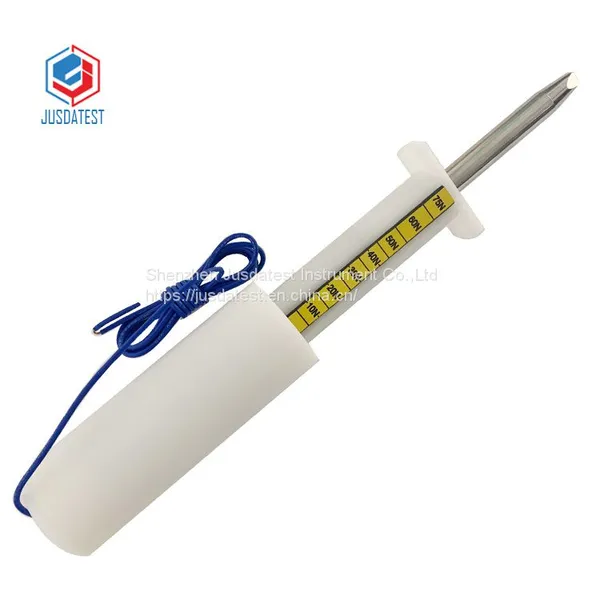

Rigid Finger Probe 11 With 0-75N Force According to IEC/EN60065
I. Overview:
The rigid finger probe 11 meets the requirements of IEC60335,IEC60601,IEC60065、IEC61010、 IEC61032 and other standards. It is used to simulate a finger in the test, and is mainly used to prevent the finger from approaching dangerous parts under the condition of external force.
2. Technical parameters:
1. Finger diameter: 12 mm
2. Straight pointing length: 80mm
3. Diameter of baffle: 50mm
4. Thickness of baffle plate: 5mm
5. Reference standard: Article 8.1.1 of GB4706.1-2005, IEC61032: 1997 Figure 7

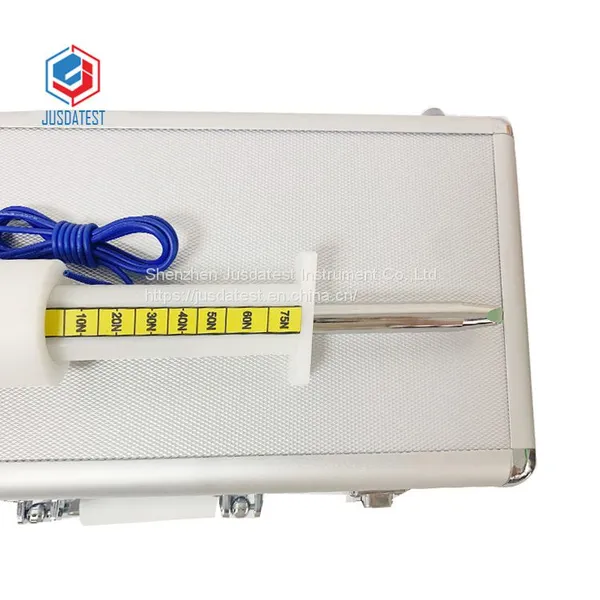

50N thrust test finger force scale: 10, 20, 30, 40, 50 N;
75N thrust test finger force scale: 10, 20, 30, 40, 50, 60, 75N
