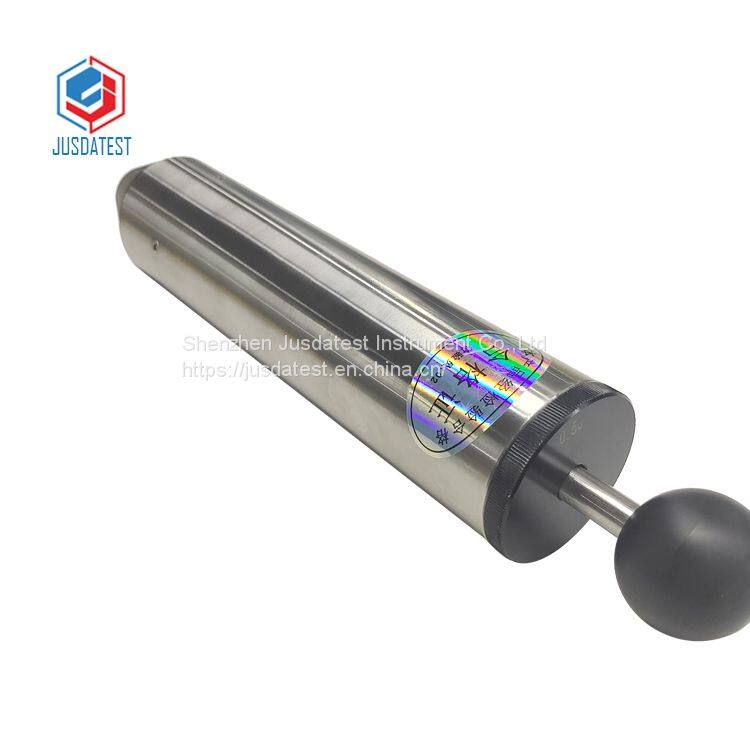

Single Energy 0.7J Impact Spring Hammer According to IEC60068-2-75 Standard

Name: Single Energy 0.7J Impact Spring Hammer According to IEC60068-2-75 Standard
Brand: JUSDATEST
Availability: InStock

FOB Price

US$ 180 - 200 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JUSDATEST		Place of Origin	China
Model Number	JSD-IK05

Product Description

Single energy Spring Impact Hammer

Technical parameters:

1. Length: 211mm

2. Weight: single gear 1250g, sixth gear 1550g

3. Outer diameter: 50mm

4. Hammer head weight: 60g

5. Hammer radius: 10mm

6. Impact assembly: operating handle and hammer head, the hammer head is made of white polyimide

7. Shock release force: less than 10N

Single-speed operation:

Fix the sample according to the relevant standard requirements, select the impact test point, pull the operating handle of the impact hammer, and the impact hammer is in a ready state. Place the impact hammer vertically against the surface of the sample and contact it, push the impact hammer to release it, and perform the impact test on the sample.
