Home > Products > IP Code Test Probe > IEC61032 Figure 4 Imitate a Wire 1.0mm Rigid Test Probe D With 1N Force
IEC61032 Figure 4 Imitate a Wire 1.0mm Rigid Test Probe D With 1N Force
USD $130 - $135
/ Piece
1 Piece(Min.Order)
- 20 Piece / Pieces per Month
- Shenzhen
- T/T
- 3 days
You May Like
-
IEC61032 Figure 16 Sharp Test Probe 41 For Glowing Heating part
-
IEC61032/IEC60529 Degrees of protection IP10-IP40 against access to hazardous parts test probe
-
IEC/UL 61032 IP1X-IP4X Code standard test Sphere Probe, Jointed Finger Probe
-
IEC 60335 protection against access to live parts test probe B, test probe 13, test probe 41
-
IEC60335-2-24 Figure BB.1 Apparatus for Water Evaporation and for Accumulation of Frost
-
IEC60529 Waterproof test IPX3 and IPX4 Hand Held Spray Nozzle
Product Details
| Brand Name | JUSDATEST | Place of Origin | China | |
| Model Number | JSD-DF |
Product Description
IEC61032 Figure 4 Imitate a Wire 1.0mm Rigid Test Probe D With 1N Force
Basic Introduction:
1.According to: IEC61032:1997/IEC60529:2001 AND UL
2.IP4X Test Probe D ( Test Probe D) is a necessary appliance for domestic and similar electrical appliance of against electric shock protection test.

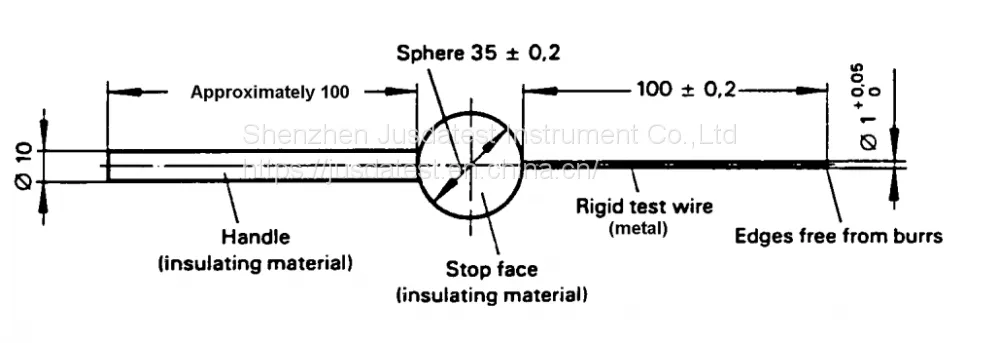

Technical parameters
1.Test Probe Length :100mm
2. Test Probe Diameter:1.0mm
3.Dam- sphere Diameter:35mm
4.Handle Diameter:10mm
5.Handle Length 100mm
6. According to IEC61032 figure 4 (the Test probe D)
