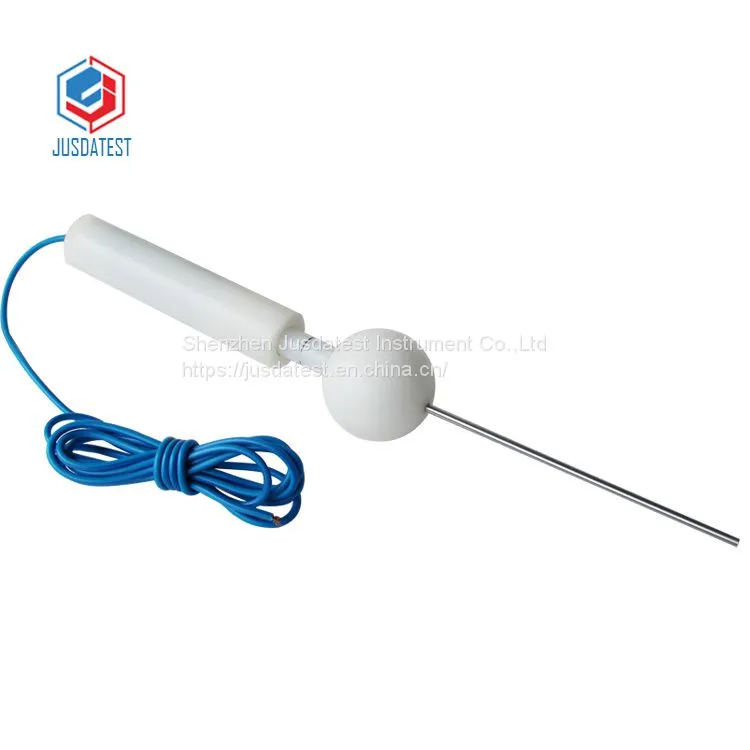

IP3X Test Probe C(Test Tool C)
1. Product overview:
The test probe C meets the requirements of IEC 60529 & IEC61032 standards. It is used to simulate tools and metal wires in the IP protection test. It is mainly used for the test of the first characteristic number 3 and the additional letter C of the IP protection level test.
In the test requirements for preventing access to dangerous parts, the test probe C needs to have a thrust of 3±0.3N

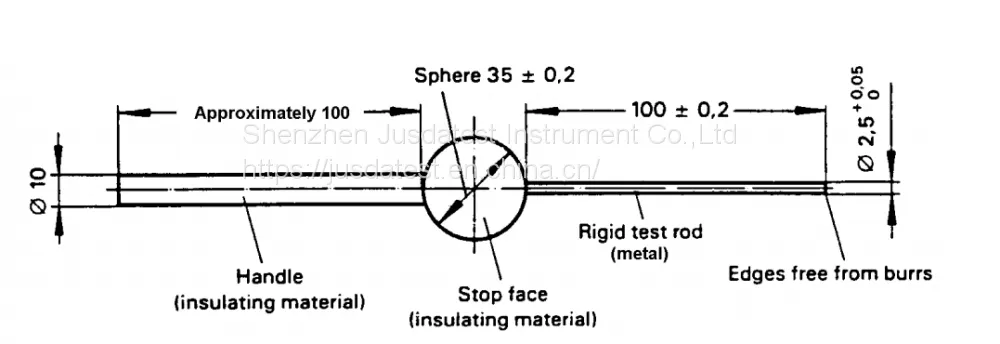

2. Technical parameters:
1. Probe length: 100mm
2. Probe diameter: 2.5mm
3. Ball diameter: 35mm
4. Handle diameter: 10mm
5. Handle length: 100mm
6. According to IEC61032 Figure 3 (Test probe C), IEC60529
